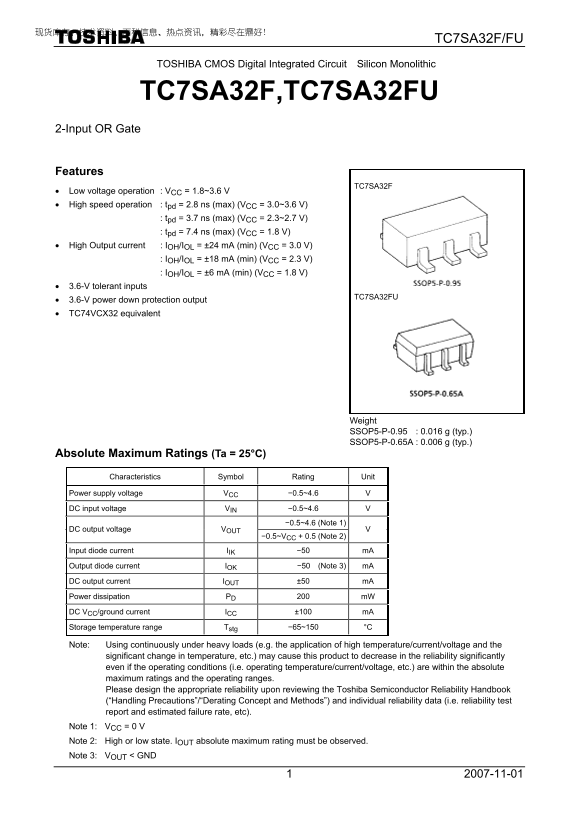

TC7SA32F/FU
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SA32F,TC7SA32FU 2-Input OR Gate
Features
TC7SA32F
• Low voltage operation : VCC = 1.8~3.6 V • High speed operation : tpd = 2.8 ns (max) (VCC = 3.0~3.6 V) : tpd = 3.7 ns (max) (VCC = 2.3~2.7 V) : tpd = 7.4 ns (max) (VCC = 1.8 V) • High Output current : IOH/IOL = ±24 m A (min) (VCC = 3.0 V) : IOH/IOL = ±18 m A (min) (VCC = 2.3 V) : IOH/IOL = ±6 m A (min) (VCC = 1.8 V) • 3.6-V tolerant inputs
TC7SA32FU
• 3.6-V power down protection output • TC74VCX32 equivalent
Weight SSOP5-P-0.95 : 0.016 g (typ.) SSOP5-P-0.65A : 0.006 g (typ.)
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Power supply voltage VCC −0.5~4.6 V
DC input voltage VIN −0.5~4.6 V
−0.5~4.6 (Note 1)
DC output voltage VOUT
−0.5~VCC + 0.5 (Note 2)
Input diode current IIK −50 m A
Output diode current IOK −50 (Note 3) m A
DC output current IOUT ±50 m A
Power dissipation PD 200 m W
DC VCC/ground current ICC ±100 m A
Storage temperature range Tstg −65~150 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Note 1: VCC = 0 V Note 2: High or low state. IOUT absolute maximum rating must be observed. Note 3: VOUT < GND
