This datasheet details the TC7SH14FS, a high-speed CMOS Digital Schmitt Inverter integrated circuit designed for signal conditioning in various digital systems. The manual provides comprehensive technical specifications, including electrical characteristics, operating voltage ranges, thermal parameters, and logic diagrams necessary for precise implementation. It is essential reading for electronics engineers and hardware designers utilizing this component in general electronic applications such as industrial control or consumer equipment.

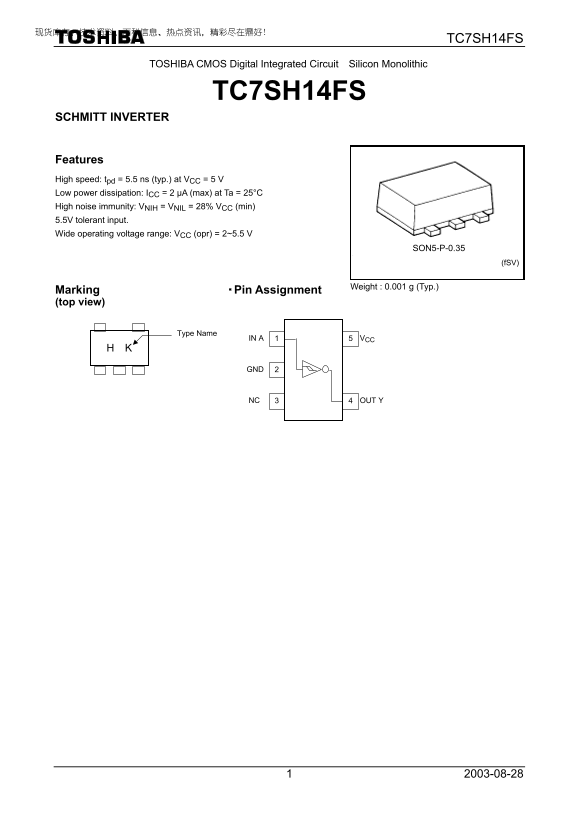

Page 1 Text Content
TC7SH14FS
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SH14FS
SCHMITT INVERTER
Features High speed: tpd = 5.5 ns (typ.) at VCC = 5 V Low power dissipation: ICC = 2 µA (max) at Ta = 25°C High noise immunity: VNIH = VNIL = 28% VCC (min) 5.5V tolerant input. Wide operating voltage range: VCC (opr) = 2~5.5 V
SON5-P-0.35
(f SV)
Weight : 0.001 g (Typ.)
Marking ・Pin Assignment (top view)
Type Name IN A
NC OUT Y
Page Summary Contents For TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH14FS Data Handbook
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 144.96 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum recommended operating temperature range for this part?
The operating temperature (opr) is from -40°C to 85°C.
Does this component have a low power dissipation feature?
Yes, it has low static current draw: I = 2 µA (max) at Ta = 25°C.
What constitutes 'Unintended Usage' of this product?
Unintended usage includes safety devices, medical instruments, or equipment requiring extraordinarily high quality/reliability, such as airplane or life support systems.
What is the peak operating speed capability (t) at a 5V supply?
The typical propagation delay time (t) is 5.5 ns at V = 5V.
