Toshiba TOSHIBA Bi−CMOS Integrated Circuit Silicon Monolithic TB62600FG Data Handbook
Summary
Engineered for high-performance thermal printing applications, the TB62600FG is a specialized 64-bit Lead-Free integrated circuit designed to drive detailed thermal heads. This monolithic IC features dual latches and an integrated shift register, providing flexible parallel or serial data input modes (8x8 or 1x64). Users will find comprehensive technical details in this manual, which covers full pin diagrams, operational block schematics, electrical characteristics, timing waveforms, and built-in protection features like MMV. It is essential documentation for electronics developers designing advanced thermal printing systems.

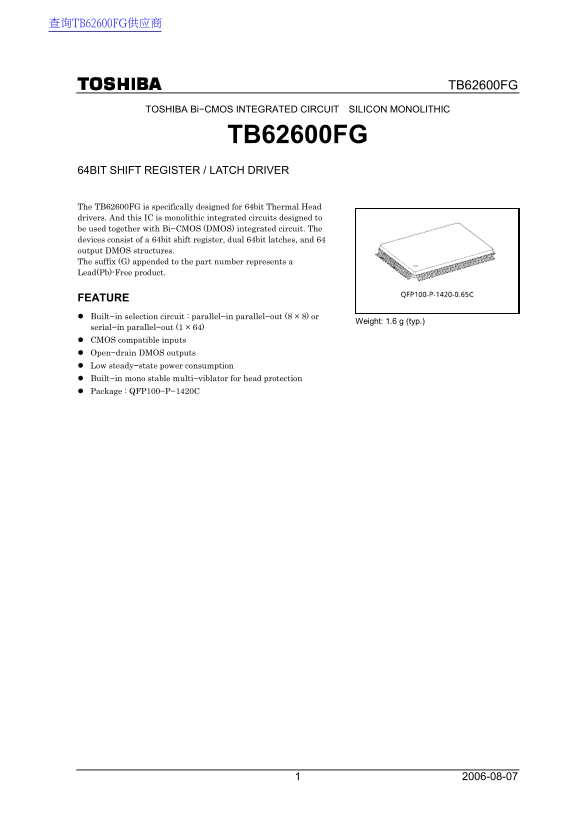

Page 1 Text Content
查询TB62600FG供应商
TB62600FG
TOSHIBA Bi−CMOS INTEGRATED CIRCUIT SILICON MONOLITHIC
TB62600FG
64BIT SHIFT REGISTER / LATCH DRIVER
The TB62600FG is specifically designed for 64bit Thermal Head drivers. And this IC is monolithic integrated circuits designed to be used together with Bi−CMOS (DMOS) integrated circuit. The devices consist of a 64bit shift register, dual 64bit latches, and 64 output DMOS structures. The suffix (G) appended to the part number represents a Lead(Pb)-Free product.
FEATURE Built−in selection circuit : parallel−in parallel−out (8 × 8) or
Weight: 1.6 g (typ.)
serial−in parallel−out (1 × 64) CMOS compatible inputs Open−drain DMOS outputs Low steady−state power consumption Built−in mono stable multi−viblator for head protection Package : QFP100−P−1420C
Page Summary Contents For Toshiba TOSHIBA Bi−CMOS Integrated Circuit Silicon Monolithic TB62600FG Data Handbook
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 15 |
| File Size | 496.28 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the function of code 'G' in TB62600FG?
The suffix (G) indicates that it is a Lead(Pb)-Free product.
What does the TB62600FG primarily control?
It is specifically designed for 64bit Thermal Head drivers, featuring a 64bit shift register and dual 64bit latches.
How is the device protected from burn-out during MMV operation?
Output Load is protected by using an external capacitor and resistor connected to MMV/E, which controls the ON period.
What are the operating temperature ranges for this IC?
Standard operation is within -40°C to 85°C. Storage temperature range is -55°C to 150°C.
