R1212D SERIES

STEP-UP DC/DC CONTROLLER

NO.EA-109-111123

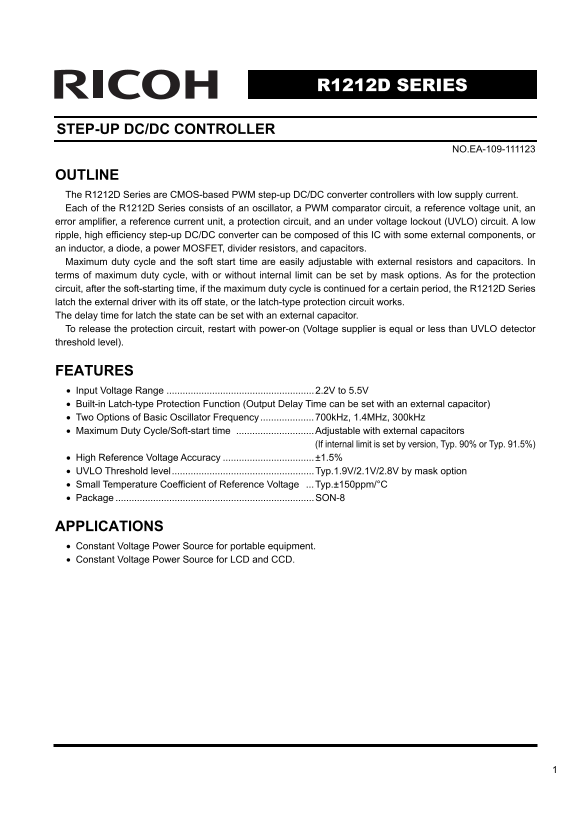

OUTLINE The R1212D Series are CMOS-based PWM step-up DC/DC converter controllers with low supply current. Each of the R1212D Series consists of an oscillator, a PWM comparator circuit, a reference voltage unit, an error amplifier, a reference current unit, a protection circuit, and an under voltage lockout (UVLO) circuit. A low ripple, high efficiency step-up DC/DC converter can be composed of this IC with some external components, or an inductor, a diode, a power MOSFET, divider resistors, and capacitors. Maximum duty cycle and the soft start time are easily adjustable with external resistors and capacitors. In terms of maximum duty cycle, with or without internal limit can be set by mask options. As for the protection circuit, after the soft-starting time, if the maximum duty cycle is continued for a certain period, the R1212D Series latch the external driver with its off state, or the latch-type protection circuit works. The delay time for latch the state can be set with an external capacitor. To release the protection circuit, restart with power-on (Voltage supplier is equal or less than UVLO detector threshold level).

FEATURES • Input Voltage Range .......................................................2.2V to 5.5V • Built-in Latch-type Protection Function (Output Delay Time can be set with an external capacitor) • Two Options of Basic Oscillator Frequency ....................700k Hz, 1.4MHz, 300k Hz • Maximum Duty Cycle/Soft-start time .............................Adjustable with external capacitors (If internal limit is set by version, Typ. 90% or Typ. 91.5%) • High Reference Voltage Accuracy ..................................±1.5% • UVLO Threshold level.....................................................Typ.1.9V/2.1V/2.8V by mask option • Small Temperature Coefficient of Reference Voltage ...Typ.±150ppm/°C • Package ..........................................................................SON-8

APPLICATIONS • Constant Voltage Power Source for portable equipment. • Constant Voltage Power Source for LCD and CCD.

Page Summary Contents For Step-Up DC-DC Controller for RICOH R1212D SERIES Data Sheet User Guide

Page 1 R1212D SERIES STEP-UP DC/DC CONTROLLER NO.EA-109-111123 OUTLINE The R1212D Series are CMOS-based PWM step-up DC/DC converter controllers with low supply current. Each of the R1212D Series consists of ...
Page 2 BLOCK DIAGRAM Internal VR VIN VREFOUT VREFOUT UVLO Oscillator DTC EXT PWM Comp Latch Er.Amp AMPOUT DELAY SELECTION GUIDE The oscillator frequency, UVLO detector threshold, and oscillator maximum duty ...
Page 3 PIN CONFIGURATION SON-8 Bottom View Top View PIN DESCRIPTION Pin No Symbol Description 1 EXT External FET Drive Pin (CMOS Output) 2 GND Ground Pin 3 DTC Pin for Setting Maximum Duty Cycle and Soft sta...
Page 4 ABSOLUTE MAXIMUM RATINGS (GND=0V) Symbol Item Rating Unit VIN VIN Pin Voltage 6.5 V VEXT EXT Pin Output Voltage −0.3 to VIN+0.3 V VDLY DELAY Pin Voltage −0.3 to VIN+0.3 V VREFOUT VREFOUT Pin Voltage −...
Page 5 ELECTRICAL CHARACTERISTICS • R1212D100A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 2.2 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Vo...
Page 6 • R1212D100B Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 2.2 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Voltage Line Regulation VIN: ...
Page 7 • R1212D101A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 2.5 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Voltage Line Regulation VIN: ...
Page 8 • R1212D101C Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 2.5 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Voltage Line Regulation VIN: ...
Page 9 • R1212D102A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 3.3 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Voltage Line Regulation VIN: ...
Page 10 • R1212D102C Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Operating Input Voltage 3.3 5.5 V VFB VFB Voltage Tolerance VIN=3.3V 0.985 1.000 1.015 ΔVFB/ΔVIN VFB Voltage Line Regulation VIN: ...
Page 11 TYPICAL APPLICATIONS AND TECHNICAL NOTES Diode Inductor VOUT VIN EXT NMOS DELAY VFB C3 GND AMPOUT VREFOUT DTC LDR655312T-100(TDK) [R1212Dxxx A] LDR655312T-4R7(TDK) [R1212Dxxx B] Inductor LDR655312T-22...
Page 12 • Output Voltage Setting Method and Phase Compensation Making Method • The feedback voltage is controlled into 1.0V. The output voltage can be set with divider resistors for voltage setting, R1 and R2...
Page 13 Output Current and Selection of External Components <Basic Circuit> Inductor Diode IOUT VIN VOUT CL Lx Tr <Circuit through L> Discontinuous Mode Continuous Mode ILxmax ILxmax ILxmin ILxmin...
Page 14 In the continuous mode, the deviation of the current is equal between on time and off time. INOUTONIN ×−== L/Toff)VV(L/TV .................................................................................
Page 15 TIMING CHART <Soft-start Operation> The timing chart below describes the state of each pin from the power-on until the IC entering the stable operation. By raising the voltage of the DTC pin slo...
Page 16 <Latch Protection Operation> The operation of Latch protection circuit is as follows: When AMPOUT becomes "H" and the IC detects maximum duty cycle, charge to an external capacitor, C2...
Page 17 TEST CIRCUITS VIN EXT VIN EXT VREFOUT VREFOUT AMPOUT AMPOUT DTC DTC VFB VFB GND DELAY GND DELAY Fig.1 Consumption Current Test Circuit Fig.2 Oscillator Frequency, VFB Voltage, Duty Cycle, EXT rising t...
Page 18 VIN EXT VIN EXT VREFOUT VREFOUT AMPOUT AMPOUT DTC DTC VFB VFB GND DELAY GND DELAY Fig.7 DELAY Pin Detector Threshold Test Circuit Fig.8 UVLO Detector Threshold/Released Voltage Test Circuit VIN EXT VI...
Page 19 Diode Inductor VOUT VIN EXT NMOS DELAY VFB C3 GND AMPOUT VREFOUT DTC Fig.12 Output Current vs. Output Voltage/Efficiency, Response Characteristics Test Circuit LDR655312T-100(TDK) [R1212Dxxx A] LDR655...
Page 20 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (Topt=25°C) R1212D100A R1212D100A VOUT=5V VOUT=10V ut pu t V ol ...
Page 21 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) Ef fic ie nc VOUT=5V VOUT=10V Output Current IOUT(m A) Output Current IOUT(m A) VOUT=15V ut pu t V ol ta ge T( V) 15.3 Ef fic ie nc Output Current IOU...
Page 22 Ef fic ie nc Ef fic ie nc Ef fic ie nc VOUT=15V VOUT=5V Output Current IOUT(m A) Output Current IOUT(m A) Ef fic ie nc Ef fic ie nc Ef fic ie nc VOUT=10V VOUT=15V Output Current IOUT(m A) Output Curre...
Page 23 sc illa to r F re qu en cy fo sc (k z) Fe ed ba ck ol ta ge FB (m Ef fic ie nc VOUT=15V Output Current IOUT(m A) 3) VFB Voltage vs. Input Voltage (Topt=25°C) 4) VFB Voltage vs. Temperature R1212D100x ...
Page 24 sc illa to r F re qu en cy fo sc (k z) sc illa to r F re qu en cy fo sc (k z) sc illa to r F re qu en cy fo sc (k z) Input Voltage VIN(V) 6) Oscillator Frequency vs. Temperature sc illa to r F re qu e...
Page 25 Su pp ly ur re nt ID (u A) Su pp ly ur re nt ID (u A) Su pp ly ur re nt ID (u A) 7) Supply Current vs. Input Voltage (Topt=25°C at no load) R1212D100A R1212D100B EXT at no load EXT at no load Input Vo...
Page 26 Su pp ly ur re nt ID (u A) R1212D EX is in Ti tr( ns EX "L " O es is ta nc e( VIN=5.5V, EXT at no load Temperature Topt(°C) 9) EXT "L" On Resistance vs. Temperature 10) EXT "H...
Page 27 ut yc le ut y( ut yc le ut y( ut yc le ut y( 13) Duty Cycle vs. DTC Voltage (0% to 100%) (Topt=25°C) R1212D100A R1212D100B CEXT=1000p F CEXT=1000p F DTC Voltage VDTC(V) DTC Voltage VDTC(V) ut yc le ut...
Page 28 AM "H " O ut pu t C ur re nt IA PL (m A) AM "L " O ut pu t C ur re nt IA PL (u A) ax du ty 15) Maxduty vs. Temperature R1212D101A R1212D101C CEXT=1000p F CEXT=1000p F Temperature T...
Page 29 LO et ec to r T hr es ho ld LO et ec to r T hr es ho ld EL AY in ha rg ur re nt ID LY 1( u A el ea se ol ta ge (V el ea se ol ta ge (V 18) UVLO Detector Threshold UVLO Released Voltage vs. Temperature...
Page 30 FO ol ta ge (m FO ol ta ge (V EL AY in is ch ar ge ur re nt ID LY 2( u A 21) DELAY Pin Discharge Current vs. Temperature 22) VREFOUT Voltage vs. Temperature R1212D10xx R1212D10xx VIN=2.2V, VDLY=0.1V V...
Page 31 ol ta ge (V ol ta ge (V ol ta ge (V 27) Power-on Response (VIN=3.3V, Topt=25°C) R1212D100A R1212D100A Set VOUT=5V, IOUT=10m A Set VOUT=5V, IOUT=100m A VIN VIN ut pu t V ol ta ge T( V) ut pu t V ol ta ...
Page 32 ol ta ge (V ol ta ge (V ol ta ge (V Set VOUT=5V, IOUT=10m A Set VOUT=5V, IOUT=100m A VIN VIN DTC DTC ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) Time (ms) Time (ms) ol t...
Page 33 ol ta ge (V ol ta ge (V ol ta ge (V Set VOUT=15V, IOUT=10m A Set VOUT=5V, IOUT=100m A VIN VIN Time (ms) Time (ms) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ol ta ge (V...
Page 34 ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) 28) Load Transient Response (VIN=3.3V, Topt=25°C) IOUT=1m A-30m A Time (ms) IOUT=10m A-100m A ut pu t V ol ta ge T( ...
Page 35 ut pu t C ur re nt IO T( R1212D100A A) ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) IOUT=10m A-100m A Time (ms) IOUT=1m A-30m A Time (ms) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) u...
Page 36 ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) IOUT=1m A-30m A Time (ms) IOUT=10m A-100m A 4.5 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge...
Page 37 ut pu t C ur re nt IO T( A) R1212D100B ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) IOUT=10m A-100m A Time (ms) IOUT=1m A-30m A Time (ms) ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) u...
Page 38 ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) IOUT=1m A-30m A Time (ms) IOUT=10m A-100m A 4.5 ut pu t V ol ta ge T( V) ut pu t V ol ta ge T( V) ut pu t V ol ta ge...
Page 39 ut pu t C ur re nt IO T( R1212D101C A) ut pu t C ur re nt IO T( A) ut pu t C ur re nt IO T( A) IOUT=10m A-100m A VOUT 10.2 Time (ms) IOUT=1m A-30m A VOUT 15.3 Time (ms) ut pu t V ol ta ge T( V) ut pu ...
Page 40 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
