ST STG3693 Low voltage high bandwidth Quad SPDT switch

Summary

The STG3693 is a high-speed quad SPDT CMOS multiplexer switch designed for robust signal routing in portable, low-voltage applications. Offering ultra-low power consumption and operating across an extended voltage range (1.65V to 4.3V), it ensures reliable connectivity even under high-speed digital loads like USB 2.0 signals. This manual provides comprehensive technical details on pin settings, electrical characteristics, absolute maximum ratings, and operational guidelines, making it an essential resource for engineers building demanding digital interconnections that require fast switching speed and excellent ESD immunity.

📄 Preview 📖 Table of Contents Contents PAGE OF 18

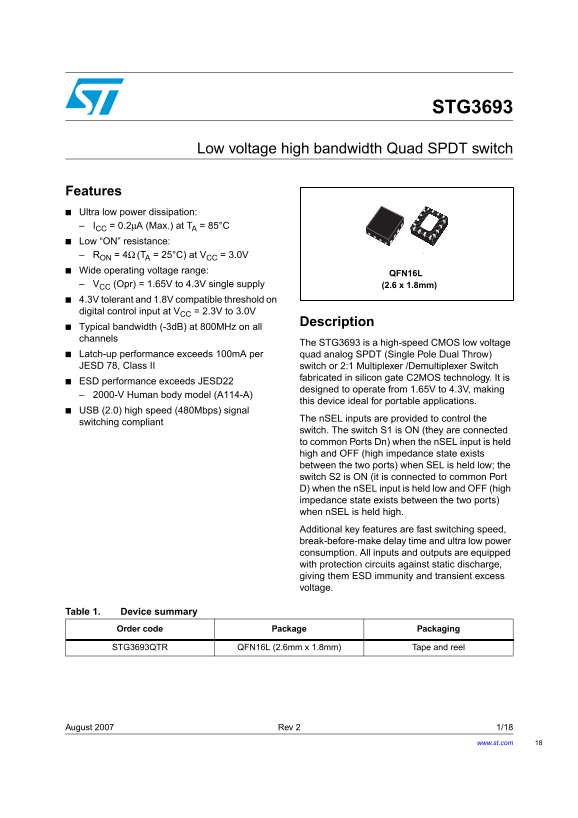

Page 1 Text Content

STG3693

Low voltage high bandwidth Quad SPDT switch

Features Ultra low power dissipation: ICC = 0.2μA (Max.) at TA = 85°C Low “ON” resistance: RON = 4Ω (TA = 25°C) at VCC = 3.0V Wide operating voltage range:

QFN16L

VCC (Opr) = 1.65V to 4.3V single supply (2.6 x 1.8mm) 4.3V tolerant and 1.8V compatible threshold on digital control input at VCC = 2.3V to 3.0V

Description

Typical bandwidth (-3d B) at 800MHz on all channels

The STG3693 is a high-speed CMOS low voltage

Latch-up performance exceeds 100m A per quad analog SPDT (Single Pole Dual Throw) JESD 78, Class II switch or 2:1 Multiplexer /Demultiplexer Switch

fabricated in silicon gate C2MOS technology. It is

ESD performance exceeds JESD22

designed to operate from 1.65V to 4.3V, making

2000-V Human body model (A114-A)

this device ideal for portable applications.

USB (2.0) high speed (480Mbps) signal

The n SEL inputs are provided to control the

switching compliant

switch. The switch S1 is ON (they are connected to common Ports Dn) when the n SEL input is held high and OFF (high impedance state exists between the two ports) when SEL is held low; the switch S2 is ON (it is connected to common Port D) when the n SEL input is held low and OFF (high impedance state exists between the two ports) when n SEL is held high. Additional key features are fast switching speed, break-before-make delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.

Table 1. Device summary

Order code Package Packaging

STG3693QTR QFN16L (2.6mm x 1.8mm) Tape and reel

August 2007 Rev 2 1/18

www.st.com

Page Summary Contents For ST STG3693 Low voltage high bandwidth Quad SPDT switch

Page 1 STG3693 Low voltage high bandwidth Quad SPDT switch Features Ultra low power dissipation: ICC = 0.2μA (Max.) at TA = 85°C Low “ON” resistance: RON = 4Ω (TA = 25°C) at VCC = 3.0V Wide operating voltage...
Page 2 Contents STG3693 Contents Pin settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin connection . . . . . . . . . . . . . . . . . . . . . . ...
Page 3 STG3693 Pin settings 1 Pin settings 1.1 Pin connection Figure 1. Pin connection (top through view) VCC GND 2S 1S 1-2-3SEL 4SEL 1.2 Pin description Table 2. Pin description Pin N° Symbol Name and funct...
Page 4 Device summary STG3693 2 Device summary Figure 2. Input equivalent circuit Table 3. Truth table 1-2-3SEL 4SEL SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4
Page 5 STG3693 Maximum rating 3 Maximum rating Stressing the device above the rating listed in the “Absolute Maximum Ratings” table may cause permanent damage to the device. These are stress ratings only and...
Page 6 Electrical characteristics STG3693 4 Electrical characteristics Table 6. DC Specifications Test conditions Value Symbol Parameter TA = 25°C -40 to 85°C Unit Vcc (V) Min Typ Max Min Max 1.65 -1.95 0.65...
Page 7 STG3693 Electrical characteristics Table 6. DC Specifications (continued) Test conditions Value Symbol Parameter TA = 25°C -40 to 85°C Unit Vcc (V) Min Typ Max Min Max OFF state leakage VS = 0.3 or IO...
Page 8 Electrical characteristics STG3693 Table 7. AC electrical characteristics (CL = 35p F, RL = 50Ω, tr = tf ≤5ns) Test conditions Value Symbol Parameter TA = 25°C -40 to 85°C Unit Vcc (V) Min Typ Max Min...
Page 9 STG3693 Electrical characteristics Table 8. Analog switch characteristics (CL = 5p F, RL = 50Ω, TA = 25°C) Test Conditions Value Symbol Parameter TA = 25°C -40 to 85°C Unit Vcc (V) Min Typ Max Min Max...
Page 10 Test circuits STG3693 5 Test circuits Figure 3. ON-Resistance Figure 4. Bandwidth
Page 11 STG3693 Test circuits Figure 5. OFF Leakage Figure 6. Channel to channel crosstalk Figure 7. Test circuit 1. CL = 5/35p F or equivalent: (includes jig capacitance) 1. RL = 50Ω or equivalent 1. RT = ZO...
Page 12 Test circuits STG3693 Figure 8. Break-before-make time delay Figure 9. Break-before-make time delay Figure 10. Switching time and charge injection (VGEN = 0V, RGEN = 0Ω, RL = 1MΩ, CL = 100p F)
Page 13 STG3693 Test circuits Figure 11. Switching time and charge injection (VGEN = 0V, RGEN = 0Ω, RL = 1MΩ, CL = 100p F) Figure 12. Turn ON, turn OFF delay time Figure 13. Turn ON, turn OFF delay time
Page 14 Package mechanical data STG3693 6 Package mechanical data In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a Lead-free second level interc...
Page 15 STG3693 Package mechanical data Table 10. QFN16L (2.6x1.8mm) mechanical data(1) millimeters Symbol Min Typ Max 1. VFQFPN - Standard for thermally enhanced vey fine pitch quad flat package no leads. Th...
Page 16 Package mechanical data STG3693 Figure 16. QFN16L (2.6mmx1.8mm) tape & reel information
Page 17 STG3693 Revision history 7 Revision history Table 11. Revision history Date Revision Changes 3-Jan-2006 First release 23-Jul-2007 Updated COFF value in Table 8 on page
Page 18 STG3693 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corr...

Manual Details

Brand QUAD
Pages 18
File Size 288.75 KB
Published May 29, 2026
70 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the wide operating voltage range for this device?

The unit operates over a single supply voltage range from 1.65V to 4.3V.

How must I connect the GND exposed pad?

The exposed pad must be soldered to a floating plane and should not be connected to power or ground.

What is the typical performance bandwidth of the channels?

The typical bandwidth (-3dB) for all channels is 800MHz at an 800MHz signal.

How low is the device's maximum current dissipation?

It features ultra low power dissipation, reaching a maximum of –I = 0.2μA at T = 85°C CC A.
