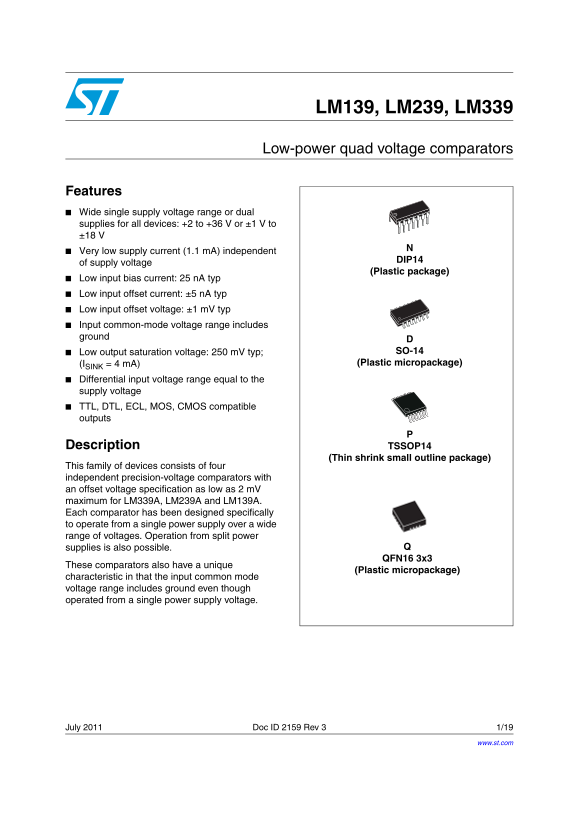

ST LM139, LM239, LM339 Low-power quad voltage comparators - Page 1

›

Page 1 Text Content

LM139, LM239, LM339

Low-power quad voltage comparators

Features Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V Very low supply current (1.1 m A) independent

DIP14

of supply voltage

(Plastic package)

Low input bias current: 25 n A typ Low input offset current: ±5 n A typ Low input offset voltage: ±1 m V typ Input common-mode voltage range includes ground

Low output saturation voltage: 250 m V typ; SO-14

(ISINK = 4 m A) (Plastic micropackage)

Differential input voltage range equal to the supply voltage TTL, DTL, ECL, MOS, CMOS compatible outputs

Description TSSOP14

(Thin shrink small outline package)

This family of devices consists of four independent precision-voltage comparators with an offset voltage specification as low as 2 m V maximum for LM339A, LM239A and LM139A. Each comparator has been designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible.

QFN16 3x3

These comparators also have a unique

(Plastic micropackage)

characteristic in that the input common mode voltage range includes ground even though operated from a single power supply voltage.

July 2011 Doc ID 2159 Rev 3 1/19

www.st.com

Page Summary Contents For ST LM139, LM239, LM339 Low-power quad voltage comparators

Page 1 LM139, LM239, LM339 Low-power quad voltage comparators Features Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V Very low supply current (1.1 m A) indepe...

Page 2 Pin and schematic diagram LM139, LM239, LM339 1 Pin and schematic diagram Figure 1. Pin connections (top view) Output2 Output3 Output1 Output4 CC VCC Inverting input1 Non-inverting input4 Non-invertin...

Page 3 LM139, LM239, LM339 Absolute maximum ratings and operating conditions 2 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Symbol Parameter Value Unit VCC Supply volta...

Page 4 Absolute maximum ratings and operating conditions LM139, LM239, LM339 Table 2. Operating conditions (Tamb = 25° C) Symbol Parameter Value Unit 2 to 32 VCC Supply voltage ±1 to ±16 + - 1.5) VICM Common...

Page 5 LM139, LM239, LM339 Electrical characteristics 3 Electrical characteristics + = +5 -= GND, Tamb = +25° Table 3. Electrical characteristics at VCC V, VCC (unless otherwise specified) LM139A - LM239A LM...

Page 6 Electrical characteristics LM139, LM239, LM339 + = +5 -= GND, Tamb = +25° Table 3. Electrical characteristics at VCC V, VCC (unless otherwise specified) (continued) LM139A - LM239A LM139 - LM239 LM339...

Page 7 LM139, LM239, LM339 Electrical characteristics curves IO LT (V LY (m 4 Electrical characteristics curves LT (m LT (V Figure 3. Supply current vs. supply voltage Figure 4. Input current vs. supply volt...

Page 8 Typical applications LM139, LM239, LM339 5 Typical applications Figure 8. Basic comparator Figure 9. Driving CMOS VCC = 5 V +V(ref) +V(ref) LM139 LM139 -V(ref) -V(ref) Figure 10. Driving TTL Figure 11...

Page 9 LM139, LM239, LM339 Typical applications Figure 14. Time delay generator VCC +15V 1/4 VCC LM139 V03 1/4 VC1 VCC LM139 1/4 VCC LM139 O2 V(ref.) Input gating signal 0.001μF V3 LM139 VCC VC1 O1 Figure 15...

Page 10 Typical applications LM139, LM239, LM339 Figure 18. Limit comparator Figure 19. Crystal-controlled oscillator VCC (12 V) VCC = 15 V 2RS 10 kΩ 200 kΩ 2 kΩ V(ref) 100 kΩ high 1/ LM139 RS 1/ LM1390.1 μF ...

Page 11 LM139, LM239, LM339 Package information 6 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of...

Page 12 Package information LM139, LM239, LM339 6.1 DIP14 package information Figure 22. DIP14 package mechanical drawing Table 4. DIP14 package mechanical data Dimensions Millimeters Inches Min. Typ. Max. Mi...

Page 13 LM139, LM239, LM339 Package information 6.2 SO-14 package information Figure 23. SO-14 package mechanical drawing Table 5. SO-14 package mechanical data Dimensions Millimeters Inches Min. Typ. Max. Mi...

Page 14 Package information LM139, LM239, LM339 6.3 QFN16 3x3 package information Figure 24. QFN16 3x3 package mechanical drawing 14/19 Doc ID 2159 Rev 3

Page 15 LM139, LM239, LM339 Package information Table 6. QFN16 3x3 mm package mechanical data (pitch 0.5 mm) Dimensions Ref. Millimeters Inches Min. Typ. Max. Min. Typ. Max. Figure 25. QFN16 3x3 footprint rec...

Page 16 Package information LM139, LM239, LM339 6.4 TSSOP14 package information Figure 26. TSSOP14 package mechanical drawing Table 7. TSSOP14 package mechanical data Dimensions Ref. Millimeters Inches Min. T...

Page 17 LM139, LM239, LM339 Ordering information 7 Ordering information Table 8. Order codes Temperature Part number Package Packing Marking range LM139N LM139N DIP14 Tube LM139AN LM139AN LM139D SO-14 Tube LM...

Page 18 Revision history LM139, LM239, LM339 8 Revision history Table 9. Document revision history Date Revision Changes 01-Mar-2003 Initial release. Updated document format. Removed power dissipation from Ta...

Page 19 LM139, LM239, LM339 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make c...
