ST MC33174 - MC35174 LOW POWER QUAD BIPOLAR OPERATIONAL AMPLIFIERS
Summary
This industrial-grade quad operational amplifier provides excellent performance for demanding circuits, combining low power consumption (200μA) with impressive speed (2.1MHz bandwidth and 2V/μs slew rate). Featuring a robust operation capability across single or dual supply rails (+4V to +44V), it ensures compatibility in diverse electronic designs. The supporting manual provides comprehensive technical specifications, electrical characteristics, package details, and operating guidelines, making it an essential resource for electronics designers requiring reliable, high-efficiency amplification solutions.
Page 1 Text Content

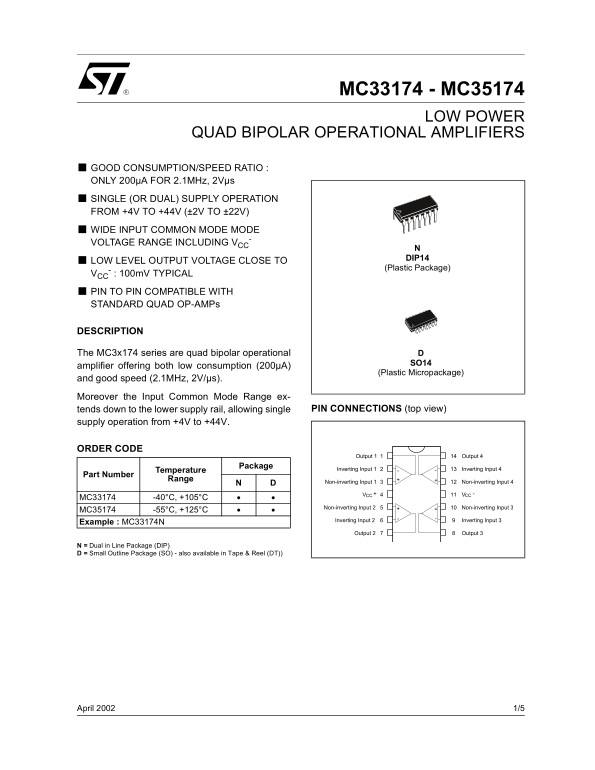

MC33174 - MC35174
LOW POWER
QUAD BIPOLAR OPERATIONAL AMPLIFIERS
GOOD CONSUMPTION/SPEED RATIO : ONLY 200µA FOR 2.1MHz, 2Vµs
SINGLE (OR DUAL) SUPPLY OPERATION FROM +4V TO +44V (±2V TO ±22V)
WIDE INPUT COMMON MODE MODE VOLTAGE RANGE INCLUDING VCC
DIP14
LOW LEVEL OUTPUT VOLTAGE CLOSE TO
(Plastic Package)
- : 100m V TYPICAL VCC
PIN TO PIN COMPATIBLE WITH STANDARD QUAD OP-AMPs
DESCRIPTION
The MC3x174 series are quad bipolar operational
amplifier offering both low consumption (200µA)
(Plastic Micropackage)
and good speed (2.1MHz, 2V/µs).
Moreover the Input Common Mode Range ex-
tends down to the lower supply rail, allowing single PIN CONNECTIONS (top view)
supply operation from +4V to +44V.
ORDER CODE
Output 1 Output 4
Package
Temperature Inverting Input 1 Inverting Input 4
Part Number
Range
Non-inverting Input 1 Non-inverting Input 4
CCV -CCV
MC33174 -40°C, +105°C
Non-inverting Input 2 Non-inverting Input 3
MC35174 -55°C, +125°C
Inverting Input 2 Inverting Input 3
Example : MC33174N
Output 2 Output 3
N = Dual in Line Package (DIP) D = Small Outline Package (SO) - also available in Tape & Reel (DT))
April 2002 1/5
Page Summary Contents For ST MC33174 - MC35174 LOW POWER QUAD BIPOLAR OPERATIONAL AMPLIFIERS
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 5 |
| File Size | 83.40 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum differential input voltage rating?
The manual does not specify a maximum rating, but it notes that both input voltages must not exceed the magnitude of Vcc.
Can this amplifier operate with a single power supply?
Yes, the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.
What is the guaranteed slew rate (SR)?
The specified Slew Rate is 1.6 V/µs when operating at ±10V for R = 10kΩ and C = 100pF.
What are the recommended supply current ranges?
The typical no-load supply currents range from + - 200 to + - 300 µA, depending on the supply voltage magnitude.
