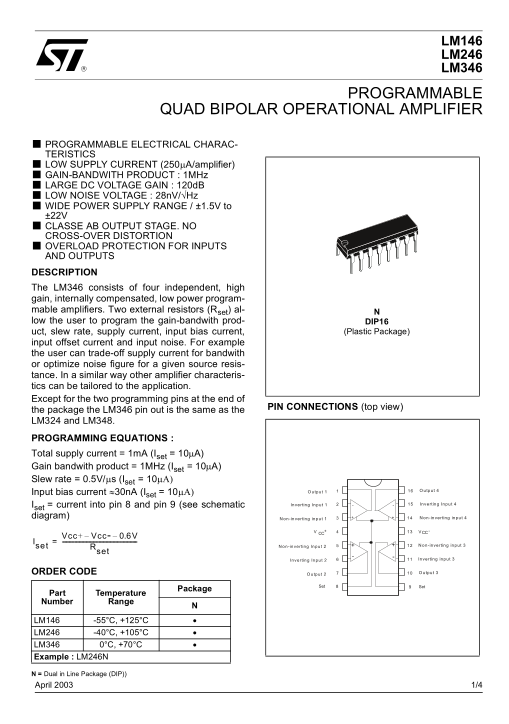

LM146 LM246 LM346
PROGRAMMABLE
QUAD BIPOLAR OPERATIONAL AMPLIFIER
PROGRAMMABLE ELECTRICAL CHARAC- TERISTICS LOW SUPPLY CURRENT (250µA/amplifier) GAIN-BANDWITH PRODUCT : 1MHz LARGE DC VOLTAGE GAIN : 120d B LOW NOISE VOLTAGE : 28n V/√Hz WIDE POWER SUPPLY RANGE / ±1.5V to ±22V CLASSE AB OUTPUT STAGE. NO CROSS-OVER DISTORTION OVERLOAD PROTECTION FOR INPUTS AND OUTPUTS DESCRIPTION The LM346 consists of four independent, high gain, internally compensated, low power program- mable amplifiers. Two external resistors (Rset) al- low the user to program the gain-bandwith prod- DIP16
uct, slew rate, supply current, input bias current, (Plastic Package)
input offset current and input noise. For example the user can trade-off supply current for bandwith or optimize noise figure for a given source resis- tance. In a similar way other amplifier characteris- tics can be tailored to the application. Except for the two programming pins at the end of
PIN CONNECTIONS (top view)
the package the LM346 pin out is the same as the LM324 and LM348. PROGRAMMING EQUATIONS : Total supply current = 1m A (Iset = 10µA) Gain bandwith product = 1MHz (Iset = 10µA) Slew rate = 0.5V/µs (Iset = 10µΑ)
utput utput
Input bias current ≈30n A (Iset = 10µΑ)
Iset = current into pin 8 and pin 9 (see schematic Inverting Input Inverting Inpu
diagram) on-inverting inpu on-inverting inpu
Vcc+ Vcc-– 0.6V– Iset
on-inverting Inpu on-inverting input
Inverting Inpu Inverting inpu
ORDER CODE utput utpu
Set Set
Package
Part Temperature Number Range
LM146 -55°C, +125°C LM246 -40°C, +105°C LM346 0°C, +70°C Example : LM246N
N = Dual in Line Package (DIP))
April 2003 1/4
