ST MC4558 Wide bandwidth dual bipolar operational amplifier Data Manual
Summary
Discover the MC4558, a high-performance dual operational amplifier engineered to surpass industry standards. Featuring wide bandwidth (up to 5.5 MHz), internal compensation, and robust protection, it delivers reliable amplification for demanding analog circuits. This comprehensive datasheet provides all necessary electrical characteristics, absolute maximum ratings, and technical parameters needed by electronics engineers to integrate this versatile component into any professional design.
Page 1 Text Content

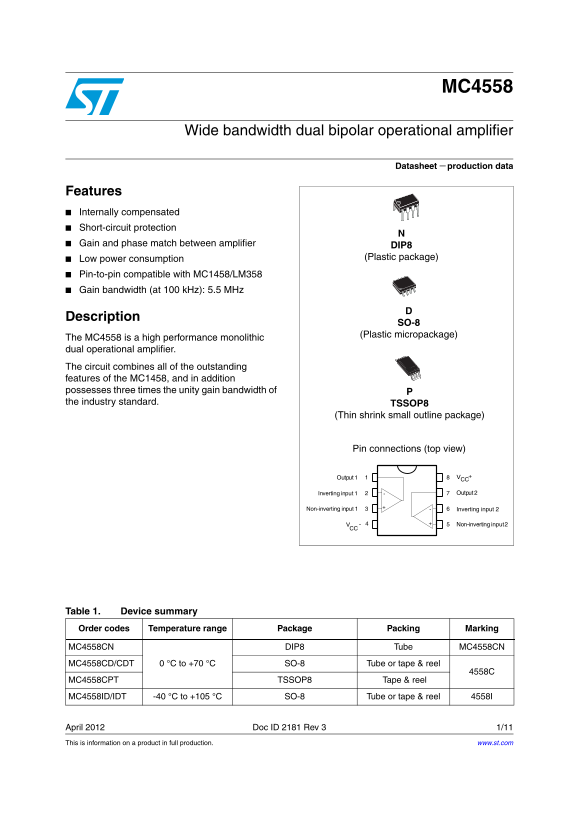

MC4558
Wide bandwidth dual bipolar operational amplifier
Datasheet − production data
Features Internally compensated Short-circuit protection Gain and phase match between amplifier DIP8
Low power consumption (Plastic package)
Pin-to-pin compatible with MC1458/LM358 Gain bandwidth (at 100 k Hz): 5.5 MHz
Description
(Plastic micropackage)
The MC4558 is a high performance monolithic dual operational amplifier. The circuit combines all of the outstanding features of the MC1458, and in addition possesses three times the unity gain bandwidth of the industry standard. TSSOP8
(Thin shrink small outline package)
Pin connections (top view)
Table 1. Device summary Order codes Temperature range Package Packing Marking
MC4558CN DIP8 Tube MC4558CN MC4558CD/CDT 0 °C to +70 °C SO-8 Tube or tape & reel
MC4558CPT TSSOP8 Tape & reel MC4558ID/IDT -40 °C to +105 °C SO-8 Tube or tape & reel 4558I
April 2012 Doc ID 2181 Rev 3 1/11 This is information on a product in full production. www.st.com
