ST LM833 Low Noise Dual Operational Amplifier Data Sheet
Summary
The LM833 is a high-performance dual operational amplifier designed specifically for advanced audio and signal processing applications. Featuring remarkably low voltage noise (4.5 nV/√Hz), high gain bandwidth (15 MHz), and ultra-low THD, it excels in preamplification and filtering circuits. This documentation serves as a comprehensive technical resource for engineers, detailing electrical characteristics, operating conditions, and absolute maximum ratings necessary for integrating this precision component into demanding electronic systems.

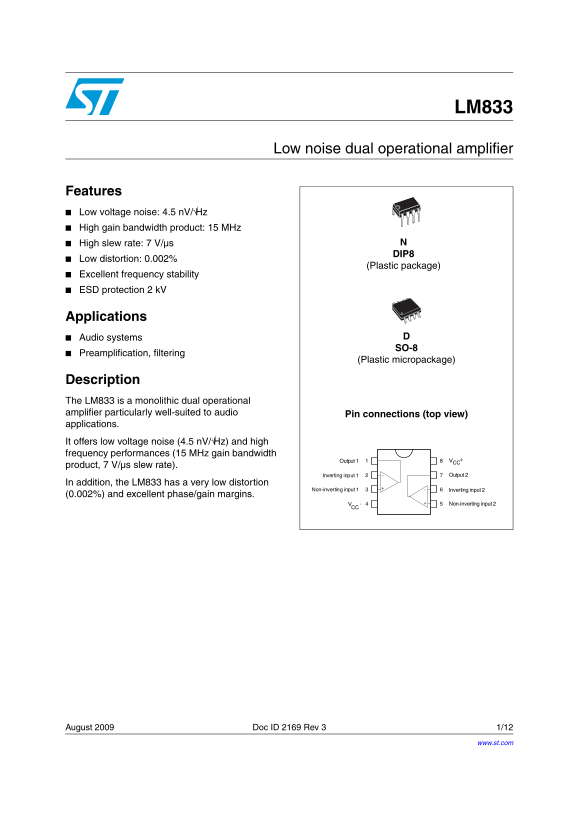

Page 1 Text Content
LM833
Low noise dual operational amplifier
Features Low voltage noise: 4.5 n V/√Hz High gain bandwidth product: 15 MHz High slew rate: 7 V/µs
Low distortion: 0.002%
(Plastic package)
Excellent frequency stability ESD protection 2 k V
Applications Audio systems
Preamplification, filtering
(Plastic micropackage)
Description The LM833 is a monolithic dual operational amplifier particularly well-suited to audio Pin connections (top view) applications. It offers low voltage noise (4.5 n V/√Hz) and high frequency performances (15 MHz gain bandwidth
Output 1 VCC
product, 7 V/µs slew rate).
Inverting input 1 Output 2
In addition, the LM833 has a very low distortion
Non-inverting input 1 Inverting input 2
(0.002%) and excellent phase/gain margins.
Non-inverting input 2-
August 2009 Doc ID 2169 Rev 3 1/12
www.st.com
Page Summary Contents For ST LM833 Low Noise Dual Operational Amplifier Data Sheet
Manual Details
| Brand | Dual |
|---|---|
| Pages | 12 |
| File Size | 180.21 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended primary application of the LM833 amplifier?
The LM833 is a dual operational amplifier particularly well-suited for audio systems, such as preamplification and filtering.
What are the main performance specifications (e.g., noise, distortion)?
It features low voltage noise (4.5 nV/√Hz), excellent phase/gain margins, and ultra-low distortion (0.002%).
Can I power the device using negative or positive supply rails?
Yes, it supports dual supplies of $\pm 18$ V to $\pm 36$ VCC for operation.
What is the recommended action if an input voltage is driven negative?
This condition is generally not destructive and normal output is restored when input voltages are above -0.3 V.
