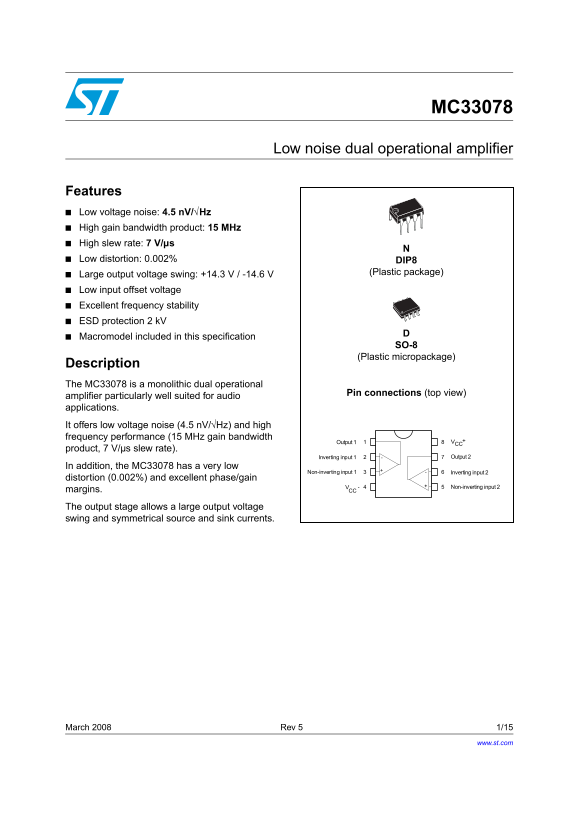

MC33078
Low noise dual operational amplifier
Features Low voltage noise: 4.5 n V/√Hz High gain bandwidth product: 15 MHz High slew rate: 7 V/µs Low distortion: 0.002% DIP8
(Plastic package)
Large output voltage swing: +14.3 -14.6 Low input offset voltage Excellent frequency stability ESD protection 2 k V Macromodel included in this specification
(Plastic micropackage)
Description The MC33078 is a monolithic dual operational
Pin connections (top view)
amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 n V/√Hz) and high frequency performance (15 MHz gain bandwidth
Output 1 VCC
product, 7 V/µs slew rate).
Inverting input 1 Output 2
In addition, the MC33078 has a very low
Non-inverting input 1 Inverting input 2
distortion (0.002%) and excellent phase/gain
Non-inverting input 2-
margins. CC
The output stage allows a large output voltage swing and symmetrical source and sink currents.
