ST L2726 October 1998 Low Drop Dual Power Operational Amplifier Data Manual User Guide
Summary
The L2726 is a high-performance, low-dropout dual power operational amplifier IC designed for demanding industrial applications. Featuring robust capability to handle inductive loads and operate efficiently at low voltages, it excels in areas like servo amplifiers, motor drives, and advanced power supplies. This manual provides comprehensive technical specifications, including absolute maximum ratings, electrical performance data, and application guidelines, making it an essential resource for engineers designing complex, reliable amplification circuits.

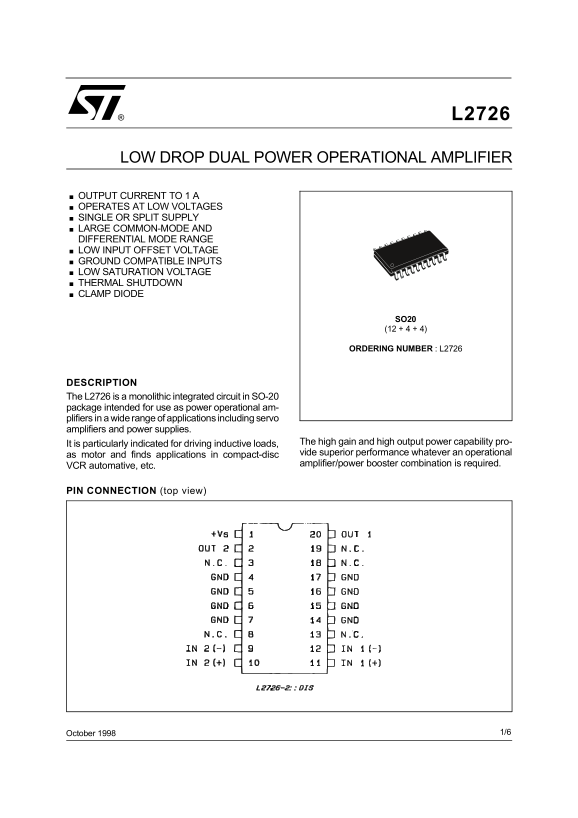

Page 1 Text Content
LOW DROP DUAL POWER OPERATIONAL AMPLIFIER
.OUTPUT CURRENT TO 1 A.OPERATES AT LOW VOLTAGES.SINGLE OR SPLIT SUPPLY.LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGE.LOW INPUT OFFSET VOLTAGE.GROUND COMPATIBLE INPUTS .LOW SATURATION VOLTAGE.THERMAL SHUTDOWN.CLAMP DIODE
SO20 (12 + 4 + 4)
ORDERING NUMBER : L2726
DESCRIPTION The L2726 is a monolithic integrated circuit in SO-20 package intended for use as power operational am- plifiers in a wide range of applications including servo amplifiers and power supplies.
It is particularly indicated for driving inductive loads, The high gain and high output power capability pro- as motor and finds applications in compact-disc vide superior performance whatever an operational VCR automative, etc. amplifier/power booster combination is required.
PIN CONNECTION (top view)
October 1998 1/6
This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
Page Summary Contents For ST L2726 October 1998 Low Drop Dual Power Operational Amplifier Data Manual User Guide
Manual Details
| Brand | Dual |
|---|---|
| Pages | 6 |
| File Size | 673.14 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum output current capability of the L2726?
The listed DC Output Current (IO) is 1 A.
What are the operational temperature ranges for this amplifier?
The operating temperature range is -40 to 85 °C, with a storage temperature range of -40 to 150 °C.
How do I determine power dissipation when using a heatsink?
Thermal Resistance Junction-ambient (th j-amb) must be calculated, which can utilize features like the 4 sq. cm copper area heatsink for rating.
Does this amplifier support different supply configurations?
Yes, it supports both single supply voltage and split supply voltage options.
