AD826 High-Speed, Low-Power Dual Operational Amplifier Data Sheet User Manual

Summary

The AD826 is a high-performance, dual operational amplifier designed for demanding power-sensitive applications. Functioning as an ideal ADC/DAC buffer or active filter, it offers a fast 50 MHz unity gain bandwidth and 350 V/µs slew rate while maintaining low power consumption. This versatile circuit is perfect for engineers designing video line drivers, cable data acquisition systems, portable instrumentation, and imaging equipment that require high stability and precise signal buffering.

📄 Preview PAGE OF 15

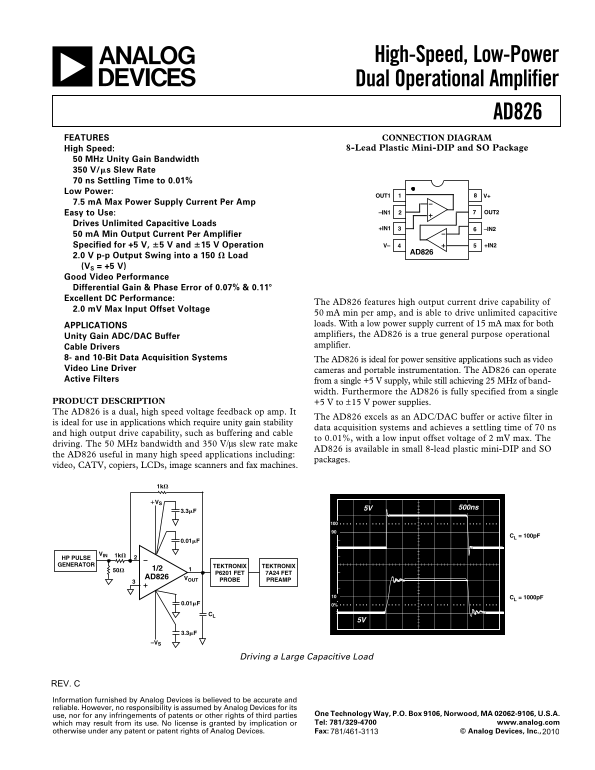

Page 1 Text Content

High-Speed, Low-Power Dual Operational Amplifier

AD826

FEATURES CONNECTION DIAGRAM

High Speed: 8-Lead Plastic Mini-DIP and SO Package

50 MHz Unity Gain Bandwidth 350 V/s Slew Rate 70 ns Settling Time to 0.01% Low Power:

OUT1 V+

7.5 m A Max Power Supply Current Per Amp

Easy to Use: –IN1 OUT2

Drives Unlimited Capacitive Loads

+IN1 –IN2

50 m A Min Output Current Per Amplifier

Specified for +5 V, 5 V and 15 V Operation V– +IN2

AD826

2.0 V p-p Output Swing into a 150  Load (VS = +5 V) Good Video Performance Differential Gain & Phase Error of 0.07% & 0.11 Excellent DC Performance:

The AD826 features high output current drive capability of

2.0 m V Max Input Offset Voltage

m A min per amp, and is able to drive unlimited capacitive APPLICATIONS loads. With a low power supply current of 15 m A max for both amplifiers, the AD826 is a true general purpose operational

Unity Gain ADC/DAC Buffer

amplifier.

Cable Drivers 8- and 10-Bit Data Acquisition Systems

The AD826 is ideal for power sensitive applications such as video

Video Line Driver

cameras and portable instrumentation. The AD826 can operate

Active Filters from a single +5 V supply, while still achieving 25 MHz of band-

width. Furthermore the AD826 is fully specified from a single

PRODUCT DESCRIPTION +5 V to ±15 V power supplies. The AD826 is a dual, high speed voltage feedback op amp. It

The AD826 excels as an ADC/DAC buffer or active filter in

is ideal for use in applications which require unity gain stability

data acquisition systems and achieves a settling time of 70 ns

and high output drive capability, such as buffering and cable

to 0.01%, with a low input offset voltage of 2 m V max. The

driving. The 50 MHz bandwidth and 350 V/µs slew rate make

AD826 is available in small 8-lead plastic mini-DIP and SO

the AD826 useful in many high speed applications including:

packages.

video, CATV, copiers, LCDs, image scanners and fax machines.

5V 500ns

CL = 100p F

VIN 1k

HP PULSE GENERATOR TEKTRONIX TEKTRONIX

P6201 FET 7A24 FET

AD826 VOUT

PROBE PREAMP

CL = 1000p F

Driving a Large Capacitive Load

REV. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. which may result from its use. No license is granted by implication or Tel: 781/329-4700 www.analog.com

otherwise under any patent or patent rights of Analog Devices. Fax: © Analog Devices, Inc.,

Page Summary Contents For AD826 High-Speed, Low-Power Dual Operational Amplifier Data Sheet User Manual

Page 1 High-Speed, Low-Power Dual Operational Amplifier AD826 FEATURES CONNECTION DIAGRAM High Speed: 8-Lead Plastic Mini-DIP and SO Package 50 MHz Unity Gain Bandwidth 350 V/s Slew Rate 70 ns Settling Time...
Page 2 AD826–SPECIFICATIONS (@ TA = +25C, unless otherwise noted) Parameter Conditions VS Min Typ Max Unit DYNAMIC PERFORMANCE Unity Gain Bandwidth ±5 V MHz ±15 V MHz 0, +5 V MHz Bandwidth for 0.1 d B Flatn...
Page 3 AD826 Parameter Conditions VS Min Typ Max Unit OUTPUT CHARACTERISTICS Output Voltage Swing RLOAD = 500 Ω ±5 V 3.3 3.8 ±V RLOAD = 150 Ω ±5 V 3.2 3.6 ±V RLOAD = 1 kΩ ±15 V 13.3 13.7 ±V RLOAD = 500 Ω ±15...
Page 4 AD826 – Typical Characteristics IN lt -p IN lt IN -M lt SUPPLY VOLTAGE – Volts SUPPLY VOLTAGE – Volts Figure 1. Common-Mode Voltage Range vs. Supply Figure 4. Quiescent Supply Current per Amp vs. Su...
Page 5 AD826 IN eg re es IR IT IN IA PHASE 5V OR 15V SUPPLIES GAIN 15V SUPPLIES GAIN 5V SUPPLIES RL = 1k TEMPERATURE – C FREQUENCY – Hz Figure 7. Input Bias Current vs. Temperature Figure 10. Open-Loop G...
Page 6 AD826 IN lt -p VIN = 1V p-p GAIN = +2 2ND HARMONIC 3RD HARMONIC FREQUENCY – Hz FREQUENCY – Hz Figure 13. Common-Mode Rejection vs. Frequency Figure 16. Harmonic Distortion vs. Frequency RL = 1k IC IS ...
Page 7 AD826 IF IA eg re es VS FLATNESS 1k VS CC FLATNESS 15V 55MHz VIN VOUT 5V CC VOUT 15V 3p F 16MHz 20MHz VIN 5V 4p F 14MHz 5V 20MHz 5V 6p F 12MHz VS = 15V VS = 15V –1 –1 VS = 5V VS = 5V VS = 5V VS =...
Page 8 AD826 VOUT TEKTRONIX TEKTRONIX P6201 FET 7A24 PULSE (LS) AD826RIN VIN PROBE PREAMP OR FUNCTION (SS) GENERATOR Figure 25. Noninverting Amplifier Configuration 5V 50ns 200m V 50ns Figure 26. Noninvertin...
Page 9 AD826 PULSE (LS) VIN 1k OR FUNCTION (SS) 1/2 TEKTRONIX TEKTRONIX GENERATOR AD826 P6201 FET 7A24 VOUT PROBE PREAMP Figure 30. Inverting Amplifier Configuration 5V 50ns 200m V 50ns Figure 31. Inverting ...
Page 10 AD826 THEORY OF OPERATION The AD826 is a low cost, wide band, high performance dual For high performance circuits, it is recommended that a operational amplifier which can drive heavy capacitive and “...
Page 11 AD826 SINGLE SUPPLY OPERATION R3 and C2 reduce the effect of the power supply changes on the An exciting feature of the AD826 is its ability to perform well in a single supply configuration (see Figur...
Page 12 AD826 SINGLE-ENDED TO DIFFERENTIAL LINE DRIVER Outstanding CMRR (> 80 d B @ 5 MHz), high bandwidth, wide 2V 200ns supply voltage range, and the ability to drive heavy loads, make the AD826 an ideal...
Page 13 AD826 1k HIGH PERFORMANCE ADC BUFFER Figure 42 is a schematic of a 12-bit high speed analog-to-digital VS converter. The AD826 dual op amp takes a single ended input 0.1F and drives the AD872 A/D con...
Page 14 AD826 OUTLINE DIMENSIONS BSC 0.060 (1.52) 0.195 (4.95) 0.210 (5.33) MAX 0.130 (3.30) MIN GAUGE PLANE 0.014 (0.36) SEATING PLANE 0.018 (0.46) MAX COMPLIANT TO JEDEC STANDARDS MS-001 CONTROLLING DIMENSI...
Page 15 AD826 REVISION HISTORY Changed Power Supply Bypassing Section to Power Supply Considerations Section ................................................................... 10 Changes to Power Supply Cons...

Manual Details

Brand Dual
Pages 15
File Size 720.28 KB
Published June 03, 2026
43 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the maximum bandwidth and slew rate specifications?

It offers a high Speed of 50 MHz Unity Gain Bandwidth at ±15V, with a Slew Rate up to 350 V/µs.

Can this amplifier handle driving large capacitive loads?

Yes, the AD826 can drive unlimited capacitive loads and has strong high output current drive capability.

What power supply ranges are supported by the AD826?

It accepts full specification from +5 V to ±15 V and operates in both single source and dual supply configurations.

What physical packages is the AD826 available in for purchase?

The device is available in 8-Lead Plastic Mini-DIP (PDIP) and Small Outline Packages (SOIC).
