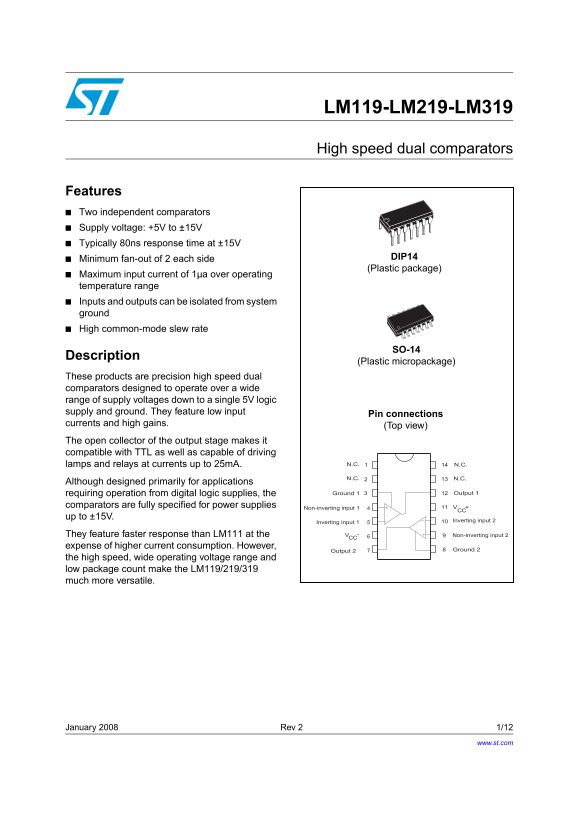

LM119-LM219-LM319
High speed dual comparators
Features Two independent comparators Supply voltage: +5V to ±15V Typically 80ns response time at ±15V
Minimum fan-out of 2 each side DIP14 (Plastic package)
Maximum input current of 1µa over operating temperature range Inputs and outputs can be isolated from system ground High common-mode slew rate
SO-14
Description
(Plastic micropackage)
These products are precision high speed dual comparators designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. They feature low input
Pin connections
currents and high gains.
(Top view)
The open collector of the output stage makes it compatible with TTL as well as capable of driving
lamps and relays at currents up to 25m A. N.C. N.C.
Although designed primarily for applications
requiring operation from digital logic supplies, the Ground 1 Output 1
comparators are fully specified for power supplies
Non-inverting input
up to ±15V.
Inverting input Inverting input
They feature faster response than LM111 at the VCC Non-inverting input 2-
expense of higher current consumption. However,
Output 2 Ground 2
the high speed, wide operating voltage range and low package count make the LM119/219/319 much more versatile.
