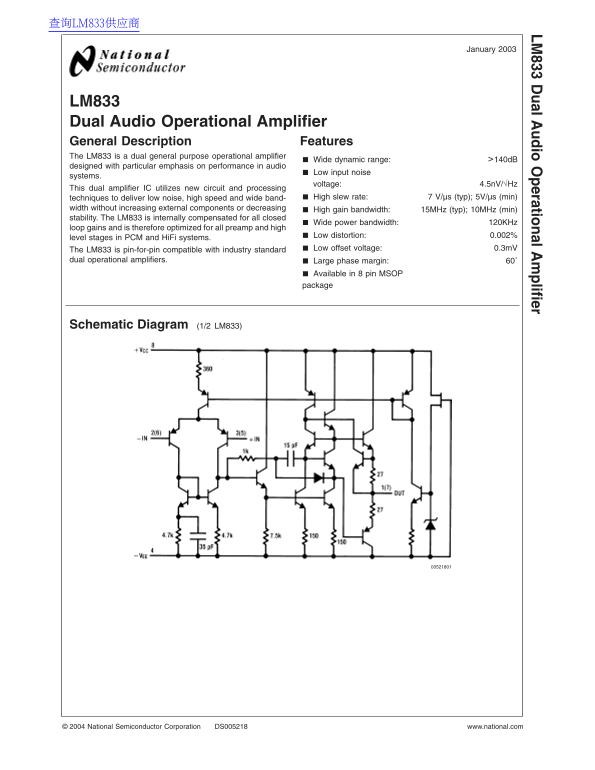

Page 1 Text Content
查询LM833供应商
January
LM ual A udio perational A plifier
LM833 Dual Audio Operational Amplifier General Description Features The LM833 is dual general purpose operational amplifier
Wide dynamic range: >140d B
designed with particular emphasis on performance in audio
Low input noise
systems.
voltage: 4.5n V/√Hz
This dual amplifier IC utilizes new circuit and processing
techniques to deliver low noise, high speed and wide band- High slew rate: V/µs (typ); 5V/µs (min)
width without increasing external components or decreasing High gain bandwidth: 15MHz (typ); 10MHz (min) stability. The LM833 is internally compensated for all closed
Wide power bandwidth: 120KHz
loop gains and is therefore optimized for all preamp and high
Low distortion: 0.002%
level stages in PCM and Hi Fi systems.
The LM833 is pin-for-pin compatible with industry standard Low offset voltage: 0.3m V
dual operational amplifiers. Large phase margin: 60˚
Available in pin MSOP package
Schematic Diagram (1/2 LM833)
