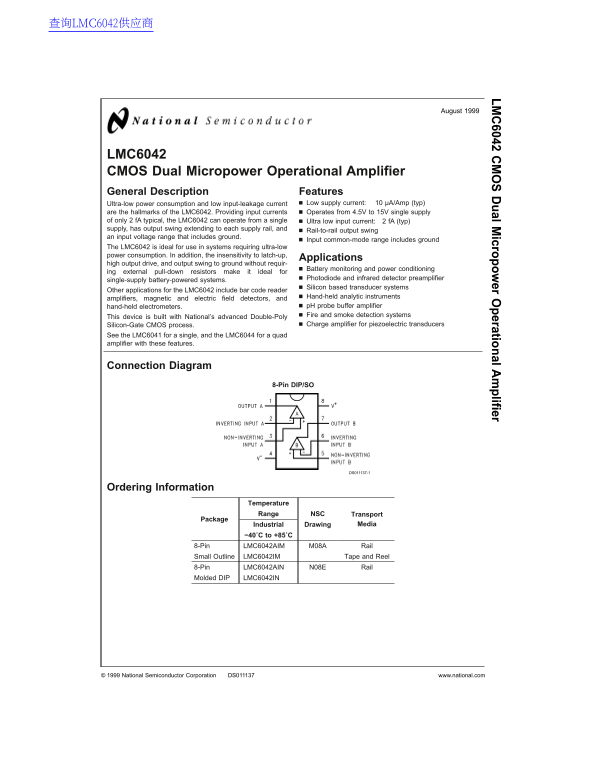

LMC6042 CMOS Dual Micropower Operational Amplifier General Description Features
Ultra-low power consumption and low input-leakage current Low supply current: µA/Amp (typ)
are the hallmarks of the LMC6042. Providing input currents Operates from 4.5V to 15V single supply of only f A typical, the LMC6042 can operate from single Ultra low input current: f A (typ) supply, has output swing extending to each supply rail, and Rail-to-rail output swing an input voltage range that includes ground.
Input common-mode range includes ground
The LMC6042 is ideal for use in systems requiring ultra-low power consumption. In addition, the insensitivity to latch-up,
Applications
high output drive, and output swing to ground without requir-
Battery monitoring and power conditioning
ing external pull-down resistors make it ideal for
single-supply battery-powered systems. Photodiode and infrared detector preamplifier Silicon based transducer systems
Other applications for the LMC6042 include bar code reader
amplifiers, magnetic and electric field detectors, and Hand-held analytic instruments hand-held electrometers. p H probe buffer amplifier This device is built with National’s advanced Double-Poly Fire and smoke detection systems Silicon-Gate CMOS process. Charge amplifier for piezoelectric transducers
See the LMC6041 for single, and the LMC6044 for quad amplifier with these features.
Connection Diagram
8-Pin DIP/SO
DS011137-1
Ordering Information
Temperature Range NSC Transport
Package
Industrial Drawing Media
−40˚C to +85˚C
8-Pin LMC6042AIM M08A Rail Small Outline LMC6042IM Tape and Reel 8-Pin LMC6042AIN N08E Rail Molded DIP LMC6042IN
National Semiconductor Corporation DS011137 www.national.com
