The LM6118/LM6218 are high-performance, fast-settling dual operational amplifiers designed for demanding analog signal processing. Featuring low offset voltage and advanced slew enhancement circuitry, these op amps deliver exceptional speed and reliability in applications such as D/A converters and active filters. This manual provides comprehensive technical data, including electrical characteristics, absolute maximum ratings, typical usage examples, and detailed ordering information necessary for engineers selecting components for high-speed circuit design.

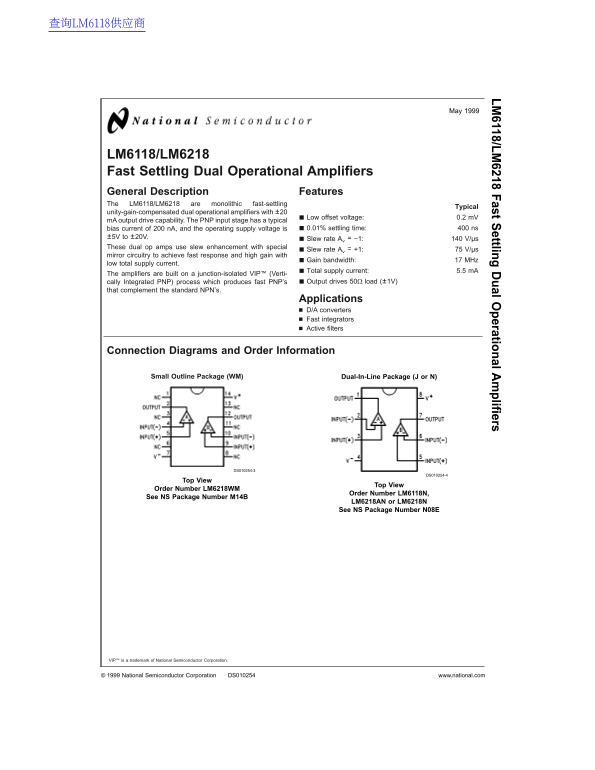

Page 1 Text Content
查询LM6118供应商
LM 6118/LM Fast ettling ual O perational A plifiers
LM6118/LM6218 Fast Settling Dual Operational Amplifiers General Description Features The LM6118/LM6218 are monolithic fast-settling
Typical
unity-gain-compensated dual operational amplifiers with ±20
Low offset voltage: 0.2 m V
m A output drive capability. The PNP input stage has typical
bias current of n A, and the operating supply voltage is 0.01% settling time: ns
±5V to ±20V.
Slew rate Av −1: V/µs
These dual op amps use slew enhancement with special
Slew rate Av +1: V/µs
mirror circuitry to achieve fast response and high gain with
Gain bandwidth: MHz
low total supply current.
Total supply current: 5.5 m A
The amplifiers are built on junction-isolated VIP™ (Verti-
cally Integrated PNP) process which produces fast PNP’s Output drives 50Ω load (±1V)
that complement the standard NPN’s.
Applications D/A converters Fast integrators Active filters
Connection Diagrams and Order Information
Small Outline Package (WM) Dual-In-Line Package (J or N)
DS010254-3
DS010254-4
Order Number LM6218WM
Order Number LM6118N,
See NS Package Number M14B
LM6218AN or LM6218N See NS Package Number N08E
VIP™ is trademark of National Semiconductor Corporation.
National Semiconductor Corporation DS010254 www.national.com
Page Summary Contents For National Semiconductor LM6118 LM6218 Fast Settling Dual Operational Amplifiers Data Sheet
Manual Details
| Brand | National |
|---|---|
| Pages | 13 |
| File Size | 839.19 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operating supply voltage requirements?
The operational supply voltage ranges from ±5V to ±20V.
What is the typical settling time of the PNP input stage?
The PNP input stage has a typical settling time of 400 ns.
What is the maximum gain bandwidth?
The amplifiers have a minimum gain bandwidth product of 17 MHz.
Do I need heat sinking during continuous overload usage?
Yes, with a continuous overload, package dissipation must be considered and heat sinking provided when necessary.
