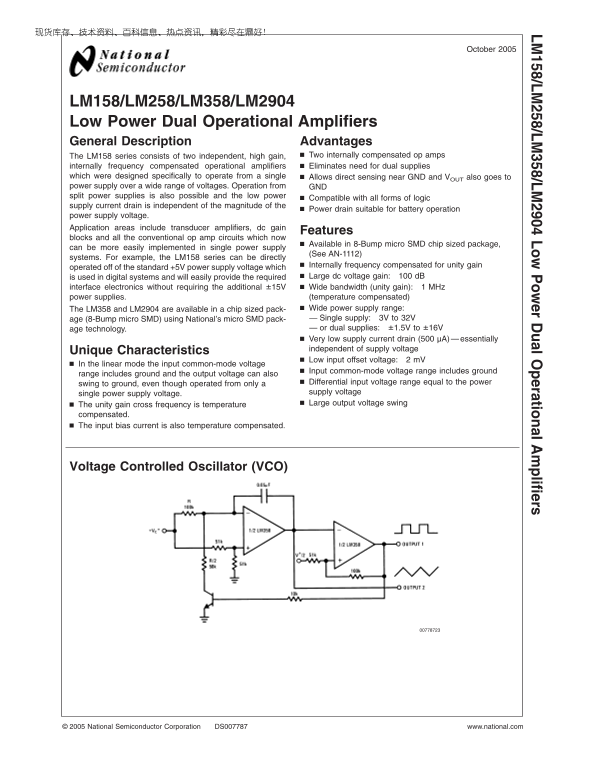

LM158/LM258/LM358/LM2904 Low Power Dual Operational Amplifiers General Description Advantages
The LM158 series consists of two independent, high gain, Two internally compensated op amps internally frequency compensated operational amplifiers Eliminates need for dual supplies
which were designed specifically to operate from single Allows direct sensing near GND and VOUT also goes to power supply over wide range of voltages. Operation from GND split power supplies is also possible and the low power
Compatible with all forms of logic
supply current drain is independent of the magnitude of the
Power drain suitable for battery operation
power supply voltage. Application areas include transducer amplifiers, dc gain
Features
blocks and all the conventional op amp circuits which now
Available in 8-Bump micro SMD chip sized package,
can be more easily implemented in single power supply
(See AN-1112)
systems. For example, the LM158 series can be directly
Internally frequency compensated for unity gain
operated off of the standard +5V power supply voltage which
is used in digital systems and will easily provide the required Large dc voltage gain: d B
interface electronics without requiring the additional ±15V Wide bandwidth (unity gain): MHz
power supplies. (temperature compensated) The LM358 and LM2904 are available in chip sized pack- Wide power supply range: age (8-Bump micro SMD) using National’s micro SMD pack- Single supply: 3V to 32V
age technology. or dual supplies: ±1.5V to ±16V
Very low supply current drain (500 µA) essentially Unique Characteristics independent of supply voltage Low input offset voltage: m V
In the linear mode the input common-mode voltage
Input common-mode voltage range includes ground
range includes ground and the output voltage can also
swing to ground, even though operated from only Differential input voltage range equal to the power single power supply voltage. supply voltage The unity gain cross frequency is temperature Large output voltage swing
compensated. The input bias current is also temperature compensated.
Voltage Controlled Oscillator (VCO)
National Semiconductor Corporation DS007787 www.national.com
