FAIRCHILD LM2904, LM358 LM358A, LM258 LM258A Dual Operational Amplifier User's Manual and Data Sheet
Summary
These versatile operational amplifiers (Op-Amps) offer high internal gain and a wide operating voltage range (up to 32V), making them ideal for complex circuit designs. Featuring significantly low power consumption, they are perfectly suited for battery-powered or single-supply electronic systems like transducer amplifiers. This technical manual provides engineers with comprehensive electrical characteristics, absolute maximum ratings, and application guidelines necessary for reliable system integration and product development.

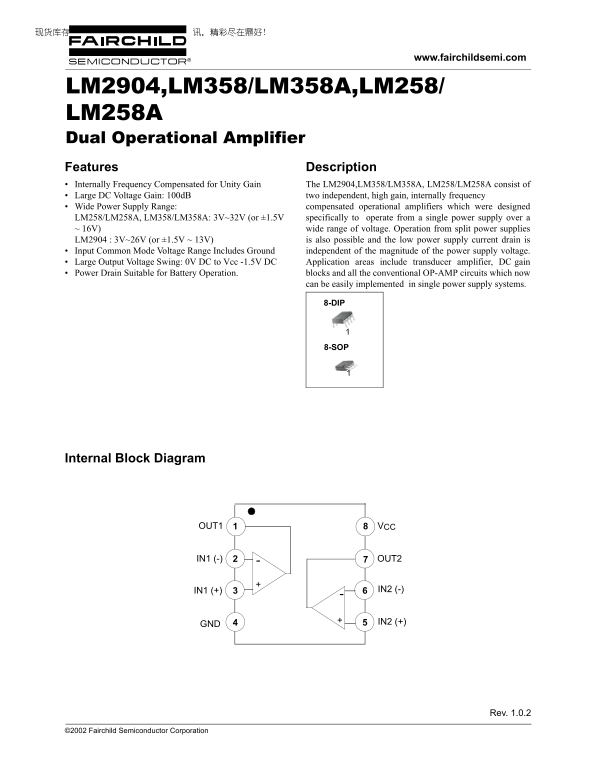

Page 1 Text Content
www.fairchildsemi.com
LM2904,LM358/LM358A,LM258/ LM258A Dual Operational Amplifier Features Description Internally Frequency Compensated for Unity Gain The LM2904,LM358/LM358A, LM258/LM258A consist of Large DC Voltage Gain: 100d B two independent, high gain, internally frequency Wide Power Supply Range: compensated operational amplifiers which were designed LM258/LM258A, LM358/LM358A: 3V~32V (or ±1.5V specifically to operate from a single power supply over a ~ 16V) wide range of voltage. Operation from split power supplies LM2904 : 3V~26V (or ±1.5V ~ 13V) is also possible and the low power supply current drain is Input Common Mode Voltage Range Includes Ground independent of the magnitude of the power supply voltage. Large Output Voltage Swing: 0V DC to Vcc -1.5V DC Application areas include transducer amplifier, DC gain Power Drain Suitable for Battery Operation. blocks and all the conventional OP-AMP circuits which now
can be easily implemented in single power supply systems.
8-DIP
8-SOP
Internal Block Diagram
OUT1 VCC
IN1 (-) OUT2
IN1 (+) IN2 (-)
IN2 (+)
Rev. 1.0.2
©2002 Fairchild Semiconductor Corporation
Page Summary Contents For FAIRCHILD LM2904, LM358 LM358A, LM258 LM258A Dual Operational Amplifier User's Manual and Data Sheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 12 |
| File Size | 153.99 KB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum DC voltage gain of these amplifiers?
They feature a large DC Voltage Gain of 100dB with two independent, high gains.
Can I operate this amplifier using a single power supply instead of two?
Yes, models like LM358/LM258A can operate from a single power supply over approximately a 16V range.
Are these components authorized for use in life support medical devices?
No, the products are not authorized for critical life support systems without express written approval.
What is the general input common-mode voltage capability?
The Input Common Mode Voltage Range includes ground independent of the magnitude of the power supply voltage.
