Texas Instruments LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, LM2904V Data Sheet Manual
Summary
Explore this comprehensive datasheet for high-performance operational amplifier integrated circuits. Detailed specifications cover key models for precision signal amplification, offering robust performance across single, dual, and wide supply voltage ranges. The manual provides vital information on minimum bias currents, differential input capabilities, and low power consumption, making it indispensable for electrical and circuit engineers designing demanding analog systems or instrumentation blocks.

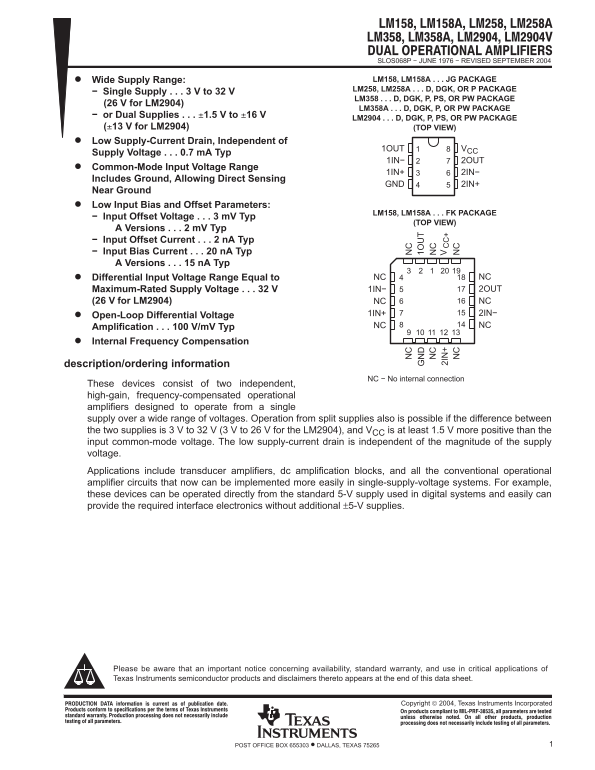

Page 1 Text Content
SLOS068P − JUNE 1976 − REVISED SEPTEMBER 2004
Wide Supply Range: LM158, LM158A JG PACKAGE LM258, LM258A D, DGK, OR P PACKAGE
− Single Supply 3 V to 32 V
LM358 D, DGK, P, PS, OR PW PACKAGE
(26 V for LM2904)
LM358A D, DGK, P, OR PW PACKAGE
− or Dual Supplies 1.5 V to 16 V
LM2904 D, DGK, P, PS, OR PW PACKAGE
(13 V for LM2904) (TOP VIEW) Low Supply-Current Drain, Independent of
1OUT VCC
Supply Voltage 0.7 m A Typ
1IN− 2OUT
Common-Mode Input Voltage Range
1IN+ 2IN−
Includes Ground, Allowing Direct Sensing
GND 2IN+
Near Ground Low Input Bias and Offset Parameters:
LM158, LM158A FK PACKAGE
− Input Offset Voltage 3 m V Typ
(TOP VIEW)
A Versions 2 m V Typ − Input Offset Current 2 n A Typ − Input Bias Current 20 n A Typ A Versions 15 n A Typ
Differential Input Voltage Range Equal to NC NC Maximum-Rated Supply Voltage 32 V 1IN− 2OUT (26 V for LM2904) NC NC 1IN+ 2IN−
Open-Loop Differential Voltage
Amplification 100 V/m V Typ NC NC
Internal Frequency Compensation
description/ordering information
NC − No internal connection
These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between 1O the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply
voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5-V supplies.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2004, Texas Instruments Incorporated !" # $% &" !# '%()$!" *!"&+
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, LM2904V Data Sheet Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 21 |
| File Size | 421.01 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this operational amplifier require dual (split) power supplies to function?
No, the devices are designed to operate from a single supply over a wide range of voltages.
What common types of circuits can these op-amps be used for?
Applications include transducer amplifiers, dc amplification blocks, and conventional operational amplifier circuits that easily interface with 5V digital systems.
Is there an available version for operation in extremely cold or hot environments?
Yes, models like the LM158FK are specified to operate safely across a wide temperature range of -55°C to +125°C.
