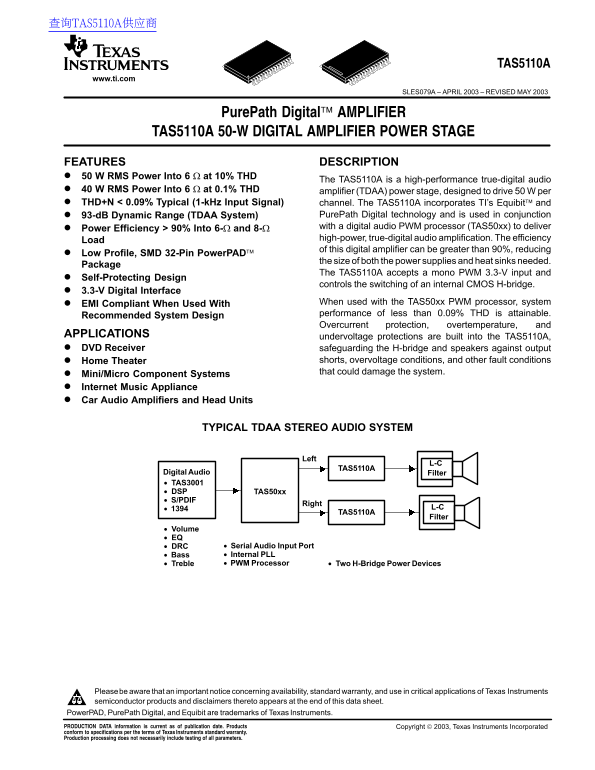

TAS5110A
www.ti.com
SLES079A – APRIL 2003 – REVISED MAY 2003
Pure Path Digital AMPLIFIER
TAS5110A 50-W DIGITAL AMPLIFIER POWER STAGE
FEATURES DESCRIPTION 50 W RMS Power Into 6 Ω at 10% THD
The TAS5110A is a high-performance true-digital audio
40 W RMS Power Into 6 Ω at 0.1% THD amplifier (TDAA) power stage, designed to drive 50 W per THD+N < 0.09% Typical (1-k Hz Input Signal) channel. The TAS5110A incorporates TI’s Equibit and
93-d B Dynamic Range (TDAA System) Pure Path Digital technology and is used in conjunction Power Efficiency > 90% Into 6-Ω and 8-Ω with a digital audio PWM processor (TAS50xx) to deliver Load high-power, true-digital audio amplification. The efficiency of this digital amplifier can be greater than 90%, reducing
Low Profile, SMD 32-Pin Power PAD
the size of both the power supplies and heat sinks needed.
Package
The TAS5110A accepts a mono PWM 3.3-V input and
Self-Protecting Design
controls the switching of an internal CMOS H-bridge.
3.3-V Digital Interface
EMI Compliant When Used With When used with the TAS50xx PWM processor, system Recommended System Design performance of less than 0.09% THD is attainable. Overcurrent protection, overtemperature, and
APPLICATIONS undervoltage protections are built into the TAS5110A, DVD Receiver safeguarding the H-bridge and speakers against output
Home Theater shorts, overvoltage conditions, and other fault conditions that could damage the system.
Mini/Micro Component Systems Internet Music Appliance Car Audio Amplifiers and Head Units
TYPICAL TDAA STEREO AUDIO SYSTEM
TAS5110A
Digital Audio Filter • TAS3001 • DSP TAS50xx • S/PDIF
TAS5110A
Filter
• Volume • EQ
• DRC • Serial Audio Input Port • Bass • Internal PLL • Treble • PWM Processor • Two H-Bridge Power Devices
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Power PAD, Pure Path Digital, and Equibit are trademarks of Texas Instruments. PRODUCTION DATA information is current as of publication date. Products Copyright 2003, Texas Instruments Incorporated
conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
