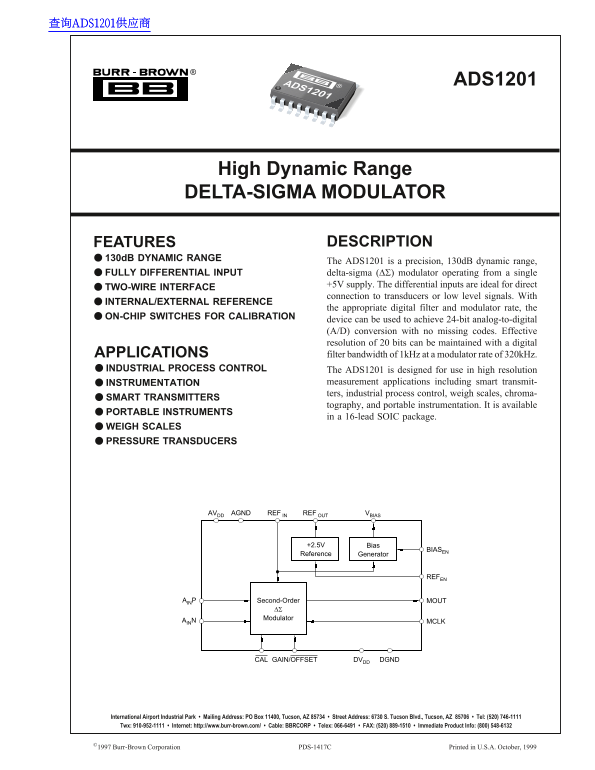

ADS1201 ADS1201®
High Dynamic Range DELTA-SIGMA MODULATOR
FEATURES DESCRIPTION
130d B DYNAMIC RANGE
The ADS1201 is a precision, 130d B dynamic range,
FULLY DIFFERENTIAL INPUT delta-sigma (∆Σ) modulator operating from a single
+5V supply. The differential inputs are ideal for direct
TWO-WIRE INTERFACE
connection to transducers or low level signals. With
INTERNAL/EXTERNAL REFERENCE
the appropriate digital filter and modulator rate, the
ON-CHIP SWITCHES FOR CALIBRATION
device can be used to achieve 24-bit analog-to-digital (A/D) conversion with no missing codes. Effective resolution of 20 bits can be maintained with a digital
APPLICATIONS filter bandwidth of 1k Hz at a modulator rate of 320k Hz. INDUSTRIAL PROCESS CONTROL The ADS1201 is designed for use in high resolution
INSTRUMENTATION measurement applications including smart transmit- ters, industrial process control, weigh scales, chroma-
SMART TRANSMITTERS
tography, and portable instrumentation. It is available
PORTABLE INSTRUMENTS
in a 16-lead SOIC package.
WEIGH SCALES PRESSURE TRANSDUCERS
AVDD AGND REF OUTREF IN VBIAS
+2.5V Bias
BIASEN
Reference Generator
REFEN
AINP Second-Order MOUT
∆Σ Modulator
AINN MCLK
CAL GAIN/OFFSET DGNDDVDD
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
©1997 Burr-Brown Corporation
PDS-1417C Printed in U.S.A. October, 1999
