This datasheet describes the LM158, LM158A, LM258, LM258A, LM358, LM358A, and LM2904 series of dual operational amplifiers from Texas Instruments. These devices feature a wide single-supply operating range of 3V to 32V (26V for LM2904) or dual supplies of ±1.5V to ±16V, with low supply-current drain of 0.7mA typical independent of supply voltage. Key specifications include input offset voltage of 3mV typical (2mV for A versions), input offset current of 2nA, input bias current of 20nA (15nA for

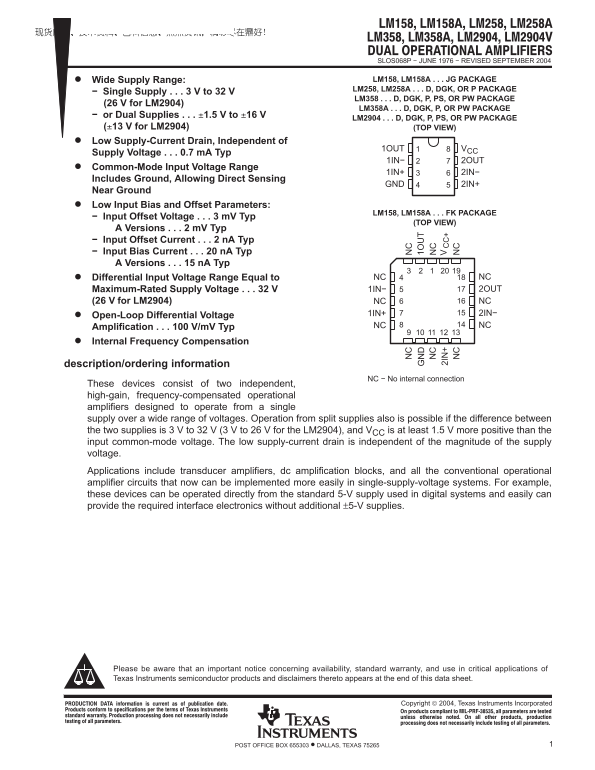

Page 1 Text Content
SLOS068P − JUNE 1976 − REVISED SEPTEMBER 2004
Wide Supply Range: LM158, LM158A JG PACKAGE LM258, LM258A D, DGK, OR P PACKAGE
− Single Supply 3 V to 32 V
LM358 D, DGK, P, PS, OR PW PACKAGE
(26 V for LM2904)
LM358A D, DGK, P, OR PW PACKAGE
− or Dual Supplies 1.5 V to 16 V
LM2904 D, DGK, P, PS, OR PW PACKAGE
(13 V for LM2904) (TOP VIEW) Low Supply-Current Drain, Independent of
1OUT VCC
Supply Voltage 0.7 m A Typ
1IN− 2OUT
Common-Mode Input Voltage Range
1IN+ 2IN−
Includes Ground, Allowing Direct Sensing
GND 2IN+
Near Ground Low Input Bias and Offset Parameters:
LM158, LM158A FK PACKAGE
− Input Offset Voltage 3 m V Typ
(TOP VIEW)
A Versions 2 m V Typ − Input Offset Current 2 n A Typ − Input Bias Current 20 n A Typ A Versions 15 n A Typ
Differential Input Voltage Range Equal to NC NC Maximum-Rated Supply Voltage 32 V 1IN− 2OUT (26 V for LM2904) NC NC 1IN+ 2IN−
Open-Loop Differential Voltage
Amplification 100 V/m V Typ NC NC
Internal Frequency Compensation
description/ordering information
NC − No internal connection
These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between 1O the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply
voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5-V supplies.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2004, Texas Instruments Incorporated !" # $% &" !# '%()$!" *!"&+
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LM158, LM158A, LM258, LM258A, LM358, LM358A, LM2904, LM2904V User's Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 20 |
| File Size | 445.72 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of power supplies can these amplifiers run from?
They are designed for operation from a single supply over a wide range, but split supplies are also possible.
Can I use this amplifier in systems that rely on digital VCC supplies?
Yes, they can operate directly from the standard 5-V supply used in digital systems without needing external ±5-V supplies.
What is the typical input offset voltage for the LM158/LM158A series?
The typical Input Offset Voltage is listed as 3 mV, with some 'A' versions rated at 2 mV.
How low are the supply-current drain characteristics?
The low supply-current drain is independent of the magnitude of the supply voltage and is measured typically around 0.7 mA.
