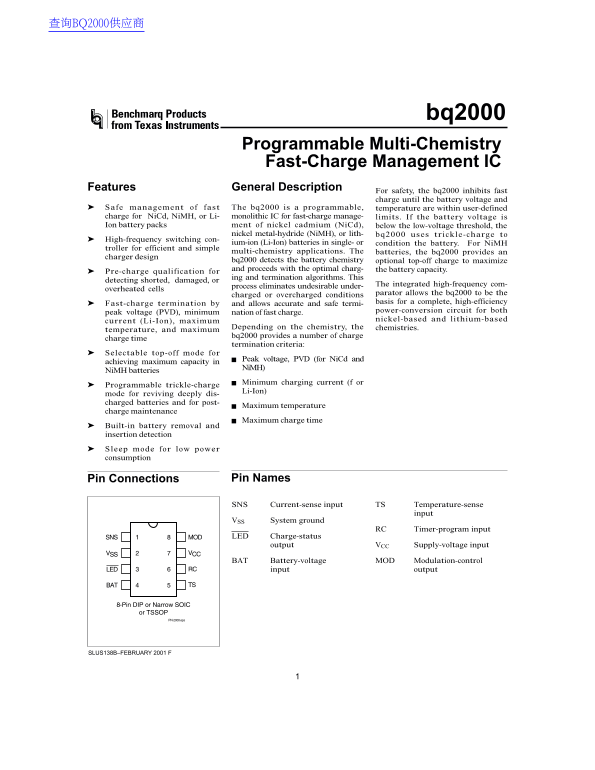

Page 1 Text Content
查询BQ2000供应商
bq2000
Programmable Multi-Chemistry Fast-Charge Management IC
Features General Description
For safety, the bq2000 inhibits fast charge until the battery voltage and
Safe management of fast The bq2000 is programmable, temperature are within user-defined charge for Ni Cd, Ni MH, or Li- monolithic IC for fast-charge manage- limits. If the battery voltage is Ion battery packs ment of nickel cadmium (Ni Cd), below the low-voltage threshold, the
nickel metal-hydride (Ni MH), or lith- bq2000 uses trickle-charge to
High-frequency switching con-
ium-ion (Li-Ion) batteries in single- or condition the battery. For Ni MH
troller for efficient and simple
multi-chemistry applications. The batteries, the bq2000 provides an
charger design
bq2000 detects the battery chemistry optional top-off charge to maximize and proceeds with the optimal charg- the battery capacity.
Pre-charge qualification for
ing and termination algorithms. This
detecting shorted, damaged, or
The integrated high-frequency com-
process eliminates undesirable under-
overheated cells
parator allows the bq2000 to be the
charged or overcharged conditions
Fast-charge termination by basis for complete, high-efficiency
and allows accurate and safe termi-
peak voltage (PVD), minimum power-conversion circuit for both
nation of fast charge.
current (Li-Ion), maximum nickel-based and lithium-based
Depending on the chemistry, the chemistries.
temperature, and maximum
bq2000 provides number of charge
charge time
termination criteria:
Selectable top-off mode for
Peak voltage, PVD (for Ni Cd and
achieving maximum capacity in
Ni MH)
Ni MH batteries
Minimum charging current (f or
Programmable trickle-charge
Li-Ion)
mode for reviving deeply dis- charged batteries and for post-
Maximum temperature
charge maintenance
Maximum charge time
Built-in battery removal and insertion detection
Sleep mode for low power consumption
Pin Connections Pin Names
SNS Current-sense input TS Temperature-sense
input
VSS System ground
RC Timer-program input
SNS MOD LED Charge-status
output VCC Supply-voltage input
VSS VCC
BAT Battery-voltage MOD Modulation-control
LED RC input output
BAT TS
8-Pin DIP or Narrow SOIC or TSSOP
PN-2000.eps
SLUS138B–FEBRUARY
