FAIRCHILD LM2904, LM358 LM358A, LM258 LM258A Dual Operational Amplifier Data Manual
Summary
Explore robust performance with our high-precision operational amplifiers (Op-Amps), including the LM2904, LM358/LM358A, and LM258/LM258A lines. These versatile ICs are engineered for wide power supply ranges (single and split) and low power consumption, making them ideal for battery-operated circuits. This comprehensive technical manual provides detailed electrical characteristics, extensive operational parameters, and application guidelines—everything required for engineers designing advanced analog systems such as transducer amplifiers or signal conditioners.

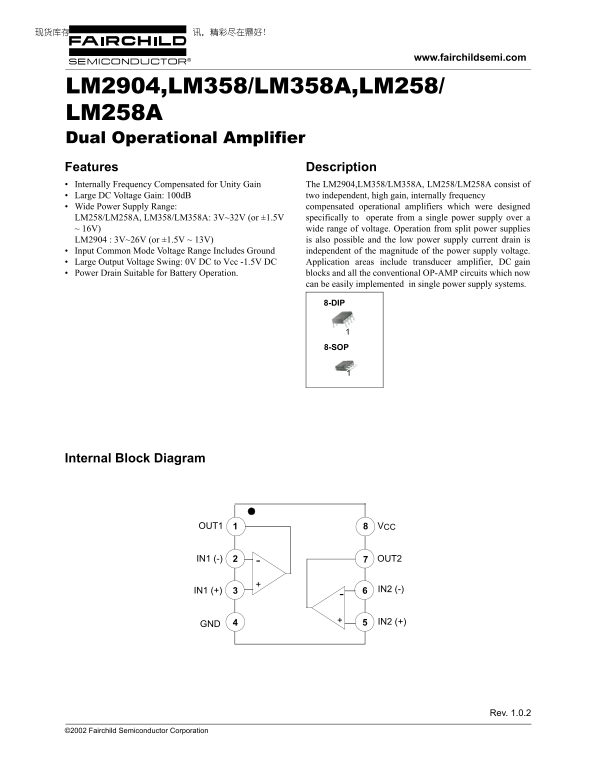

Page 1 Text Content
www.fairchildsemi.com
LM2904,LM358/LM358A,LM258/ LM258A Dual Operational Amplifier Features Description Internally Frequency Compensated for Unity Gain The LM2904,LM358/LM358A, LM258/LM258A consist of Large DC Voltage Gain: 100d B two independent, high gain, internally frequency Wide Power Supply Range: compensated operational amplifiers which were designed LM258/LM258A, LM358/LM358A: 3V~32V (or ±1.5V specifically to operate from a single power supply over a ~ 16V) wide range of voltage. Operation from split power supplies LM2904 : 3V~26V (or ±1.5V ~ 13V) is also possible and the low power supply current drain is Input Common Mode Voltage Range Includes Ground independent of the magnitude of the power supply voltage. Large Output Voltage Swing: 0V DC to Vcc -1.5V DC Application areas include transducer amplifier, DC gain Power Drain Suitable for Battery Operation. blocks and all the conventional OP-AMP circuits which now
can be easily implemented in single power supply systems.
8-DIP
8-SOP
Internal Block Diagram
OUT1 VCC
IN1 (-) OUT2
IN1 (+) IN2 (-)
IN2 (+)
Rev. 1.0.2
©2002 Fairchild Semiconductor Corporation
Page Summary Contents For FAIRCHILD LM2904, LM358 LM358A, LM258 LM258A Dual Operational Amplifier Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 12 |
| File Size | 153.99 KB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage ranges can these operational amplifiers handle?
They offer a wide range, such as 3V~32V, and also support operation from split power supplies.
Are these chips compatible with a single power supply system?
Yes, the chips are specifically designed for easy implementation in single power supply systems.
What is the maximum rated input voltage?
The differential input voltage can reach 32V across multiple models (LM2904/LM358).
Can these components be used in life support critical care devices?
No, such applications require express written approval from Fairchild Semiconductor Corporation.
