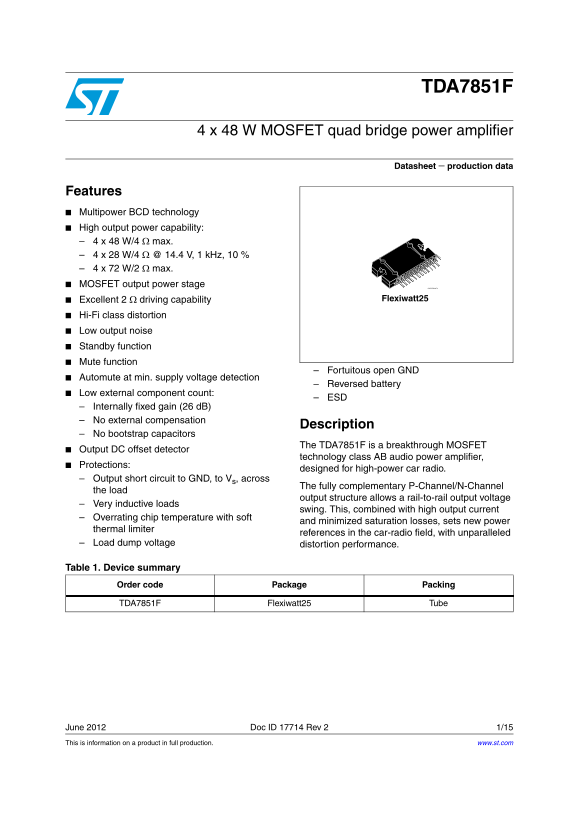

TDA7851F

4 x 48 W MOSFET quad bridge power amplifier

Datasheet − production data

Features Multipower BCD technology High output power capability: 4 x 48 W/4 Ω max. 4 x 28 W/4 Ω @ 14.4 V, 1 k Hz, 10 % 4 x 72 W/2 Ω max. MOSFET output power stage

Excellent 2 Ω driving capability Flexiwatt25

Hi-Fi class distortion Low output noise Standby function Mute function

Fortuitous open GND

Automute at min. supply voltage detection

Reversed battery

Low external component count:

Internally fixed gain (26 d B) No external compensation

Description

No bootstrap capacitors

The TDA7851F is a breakthrough MOSFET

Output DC offset detector

technology class AB audio power amplifier,

Protections:

designed for high-power car radio.

Output short circuit to GND, to Vs, across

The fully complementary P-Channel/N-Channel

the load

output structure allows a rail-to-rail output voltage

Very inductive loads

swing. This, combined with high output current

Overrating chip temperature with soft

and minimized saturation losses, sets new power

thermal limiter

references in the car-radio field, with unparalleled

Load dump voltage distortion performance.

Table 1. Device summary

Order code Package Packing

TDA7851F Flexiwatt25 Tube

June 2012 Doc ID 17714 Rev 2 1/15 This is information on a product in full production. www.st.com
