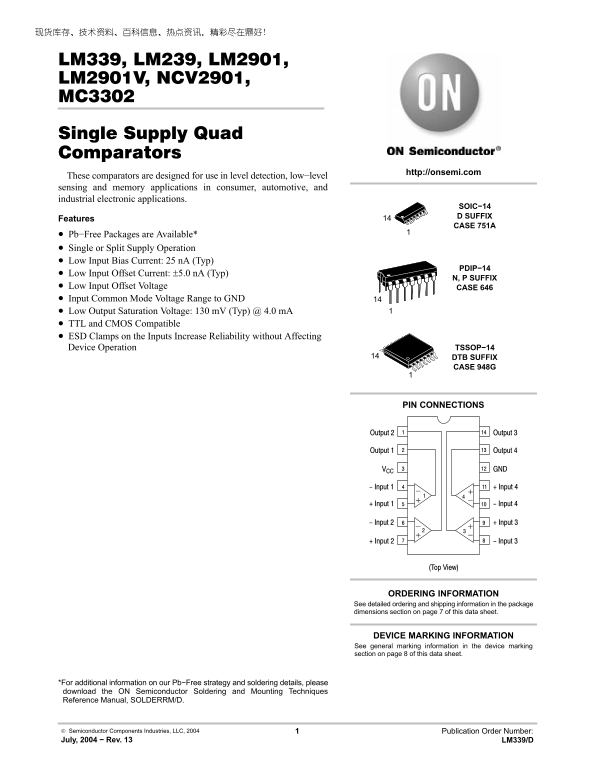

LM339, LM239, LM2901, LM2901V, NCV2901, MC3302
Single Supply Quad Comparators
http://onsemi.com
These comparators are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
SOIC−14 D SUFFIX
Features
CASE 751A
Pb−Free Packages are Available* Single or Split Supply Operation Low Input Bias Current: 25 n A (Typ)
PDIP−14
Low Input Offset Current: ±5.0 n A (Typ)
N, P SUFFIX
Low Input Offset Voltage CASE 646 Input Common Mode Voltage Range to GND Low Output Saturation Voltage: 130 m V (Typ) @ 4.0 m A TTL and CMOS Compatible ESD Clamps on the Inputs Increase Reliability without Affecting
Device Operation TSSOP−14 DTB SUFFIX CASE 948G
PIN CONNECTIONS
Output 2 Output 3
Output 1 Output 4
VCC GND
− Input 1 + Input 4
+ Input 1 − Input 4
− Input 2 + Input 3
+ Input 2 − Input 3
(Top View)
ORDERING INFORMATION See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
DEVICE MARKING INFORMATION See general marking information in the device marking section on page 8 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
Semiconductor Components Industries, LLC, 2004 Publication Order Number: July, 2004 − Rev. 13 LM339/D
