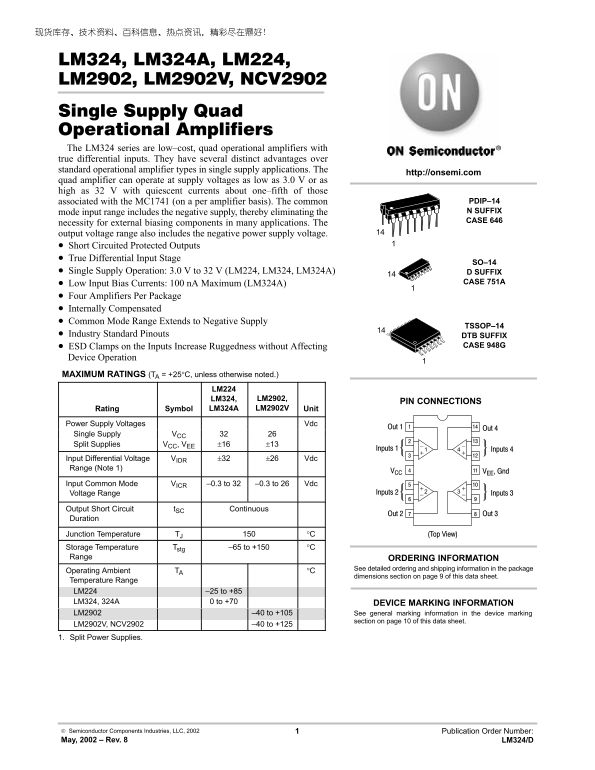

ON Semiconductor LM324, LM324A, LM224, LM2902, LM2902V, NCV2902 Single Supply Quad Operational Amplifiers User Manual

LM324, LM324A, LM224, LM2902, LM2902V, NCV2902 Single Supply Quad Operational Amplifiers The LM324 series are low–cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The

http://onsemi.com

quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one–fifth of those

associated with the MC1741 (on a per amplifier basis). The common PDIP–14 mode input range includes the negative supply, thereby eliminating the N SUFFIX CASE 646

necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage. Short Circuited Protected Outputs True Differential Input Stage

SO–14

Single Supply Operation: 3.0 V to 32 V (LM224, LM324, LM324A) D SUFFIX

Low Input Bias Currents: 100 n A Maximum (LM324A) CASE 751A

Four Amplifiers Per Package Internally Compensated Common Mode Range Extends to Negative Supply

TSSOP–14

Industry Standard Pinouts DTB SUFFIX

ESD Clamps on the Inputs Increase Ruggedness without Affecting CASE 948G

Device Operation MAXIMUM RATINGS (TA = +25°C, unless otherwise noted.)

LM224

LM324, LM2902,

PIN CONNECTIONS

Rating Symbol LM324A LM2902V Unit

Power Supply Voltages Vdc

Out 1 Out 4

Single Supply VCC Split Supplies VCC, VEE ±16 ±13

Inputs 1 Inputs 4

Input Differential Voltage VIDR ±32 ±26 Vdc Range (Note 1)

VCC VEE, Gnd

Input Common Mode VICR –0.3 to 32 –0.3 to 26 Vdc

Voltage Range Inputs 2 Inputs 3

Output Short Circuit t SC Continuous

Out 2 Out 3

Duration

Junction Temperature TJ °C (Top View) Storage Temperature Tstg –65 to +150 °C Range ORDERING INFORMATION

See detailed ordering and shipping information in the package

Operating Ambient TA °C

dimensions section on page 9 of this data sheet.

Temperature Range LM224 –25 to +85 LM324, 324A 0 to +70 DEVICE MARKING INFORMATION LM2902 –40 to +105 See general marking information in the device marking

section on page 10 of this data sheet.

LM2902V, NCV2902 –40 to +125 1. Split Power Supplies.

Semiconductor Components Industries, LLC, 2002 Publication Order Number: May, 2002 – Rev. 8 LM324/D
