Texas Instruments LMV331 Single, LMV393 Dual, LMV339 Quad General-Purpose Low-Voltage Comparators
Summary
These ultra-low power comparators are engineered for portable consumer products requiring robust low-voltage operation in compact designs. The manual provides comprehensive technical details, including full specifications, operating ratings, multiple package options, and detailed ordering information necessary for efficient circuit design and integration into space-saving applications.

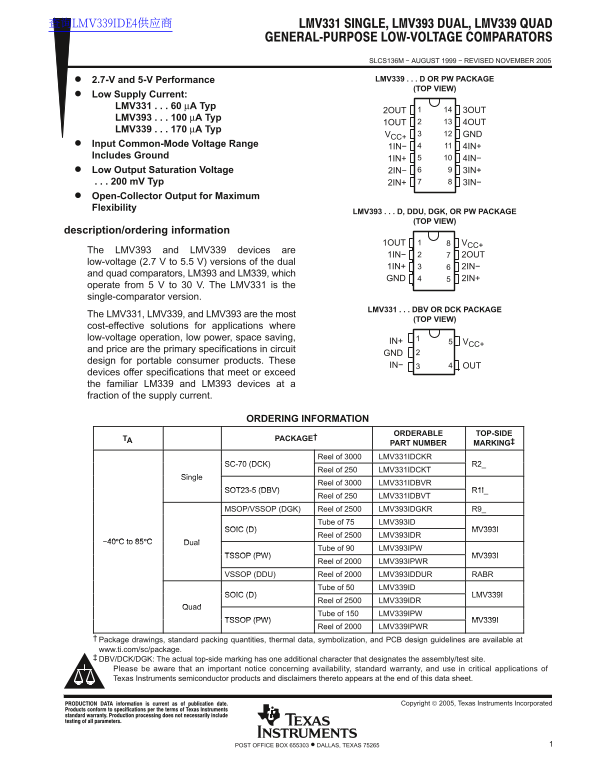

Page 1 Text Content
查询LMV339IDE4供应商
SLCS136M − AUGUST 1999 − REVISED NOVEMBER 2005
2.7-V and 5-V Performance LMV339 D OR PW PACKAGE
(TOP VIEW)
Low Supply Current: LMV331 60 µA Typ
2OUT 3OUT
LMV393 100 µA Typ
1OUT 4OUT
LMV339 170 µA Typ
VCC+ GND
Input Common-Mode Voltage Range
1IN− 4IN+
Includes Ground
1IN+ 4IN−
Low Output Saturation Voltage 2IN− 3IN+ 200 m V Typ 2IN+ 3IN− Open-Collector Output for Maximum Flexibility
LMV393 D, DDU, DGK, OR PW PACKAGE
(TOP VIEW)
description/ordering information
1OUT VCC+
The LMV393 and LMV339 devices are
1IN− 2OUT
low-voltage (2.7 V to 5.5 V) versions of the dual
1IN+ 2IN−
and quad comparators, LM393 and LM339, which
GND 2IN+
operate from 5 V to 30 V. The LMV331 is the single-comparator version.
LMV331 DBV OR DCK PACKAGE
The LMV331, LMV339, and LMV393 are the most
(TOP VIEW)
cost-effective solutions for applications where low-voltage operation, low power, space saving,
IN+ VCC+
and price are the primary specifications in circuit
design for portable consumer products. These
IN− OUT
devices offer specifications that meet or exceed the familiar LM339 and LM393 devices at a fraction of the supply current.
ORDERING INFORMATION
ORDERABLE TOP-SIDE
TA PACKAGE†
PART NUMBER MARKING‡
Reel of 3000 LMV331IDCKR
SC-70 (DCK) R2_
Reel of 250 LMV331IDCKT
Single
Reel of 3000 LMV331IDBVR
SOT23-5 (DBV) R1I_
Reel of 250 LMV331IDBVT
MSOP/VSSOP (DGK) Reel of 2500 LMV393IDGKR R9_
Tube of 75 LMV393ID
SOIC (D) MV393I
Reel of 2500 LMV393IDR
−40°C to 85°C Dual
Tube of 90 LMV393IPW
TSSOP (PW) MV393I
Reel of 2000 LMV393IPWR
VSSOP (DDU) Reel of 2000 LMV393IDDUR RABR
Tube of 50 LMV339ID
SOIC (D) LMV339I
Reel of 2500 LMV339IDR
Tube of 150 LMV339IPW
TSSOP (PW) MV339I
Reel of 2000 LMV339IPWR
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. DBV/DCK/DGK: The actual top-side marking has one additional character that designates the assembly/test site. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
! "# $ ! %#&'" ( $) Copyright 2005, Texas Instruments Incorporated
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LMV331 Single, LMV393 Dual, LMV339 Quad General-Purpose Low-Voltage Comparators
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 17 |
| File Size | 527.97 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range for these comparators?
The devices operate from low-voltage (2.7 V to 5.5 V) or standard ranges of 5 V to 30 V.
Which device version is best for portable, low-power applications?
LMV331, LMV339, and LMV393 are cost-effective solutions prioritizing low voltage, low power, and small size.
What specification determines the output flexibility of the lMV series comparison?
The open-collector output provides maximum flexibility for the comparators.
How is package thermal impedance rated?
It depends on the specific package; for example, an 8-pin D package has a thermal impedance of 97°C/W.
