LM ingle /LM ual/LM uad eneral P urpose,Low Voltage,Tiny P ack om parators
August

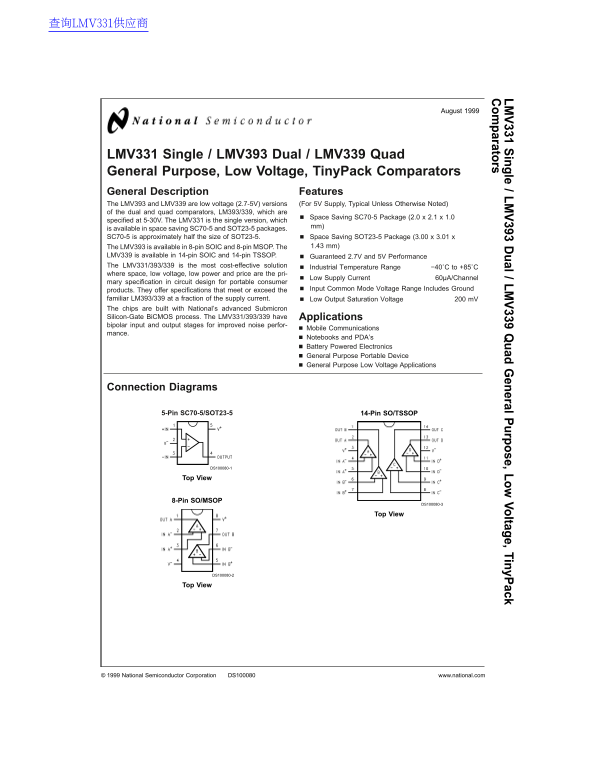

LMV331 Single LMV393 Dual LMV339 Quad General Purpose, Low Voltage, Tiny Pack Comparators General Description Features The LMV393 and LMV339 are low voltage (2.7-5V) versions (For 5V Supply, Typical Unless Otherwise Noted) of the dual and quad comparators, LM393/339, which are
Space Saving SC70-5 Package (2.0 2.1 1.0
specified at 5-30V. The LMV331 is the single version, which
is available in space saving SC70-5 and SOT23-5 packages. SC70-5 is approximately half the size of SOT23-5. Space Saving SOT23-5 Package (3.00 3.01
The LMV393 is available in 8-pin SOIC and 8-pin MSOP. The 1.43 mm)
LMV339 is available in 14-pin SOIC and 14-pin TSSOP. Guaranteed 2.7V and 5V Performance The LMV331/393/339 is the most cost-effective solution Industrial Temperature Range −40˚C to +85˚C where space, low voltage, low power and price are the pri-
Low Supply Current 60µA/Channel
mary specification in circuit design for portable consumer
products. They offer specifications that meet or exceed the Input Common Mode Voltage Range Includes Ground
familiar LM393/339 at fraction of the supply current. Low Output Saturation Voltage m V The chips are built with National’s advanced Submicron Silicon-Gate Bi CMOS process. The LMV331/393/339 have Applications bipolar input and output stages for improved noise perfor-
Mobile Communications
mance.
Notebooks and PDA’s Battery Powered Electronics General Purpose Portable Device General Purpose Low Voltage Applications
Connection Diagrams
5-Pin SC70-5/SOT23-5 14-Pin SO/TSSOP
DS100080-1
8-Pin SO/MSOP
DS100080-3
DS100080-2
National Semiconductor Corporation DS100080 www.national.com
