Texas Instruments LPV321 Single LPV358 Dual LPV324 Quad Data Sheet
Summary
Explore the LPV family of ultra-low-power operational amplifiers, perfect for space-constrained and battery-operated electronics. Designed for low-voltage signal processing, these op-amps offer rail-to-rail output swing, excellent speed-power ratios, and operate across an extended temperature range (−40°C to 125°C). This resource provides comprehensive technical specifications, application guidelines (including active filters), detailed performance graphs, and ordering information for engineers requiring cost-effective, reliable solutions in general-purpose and portable electronic systems.

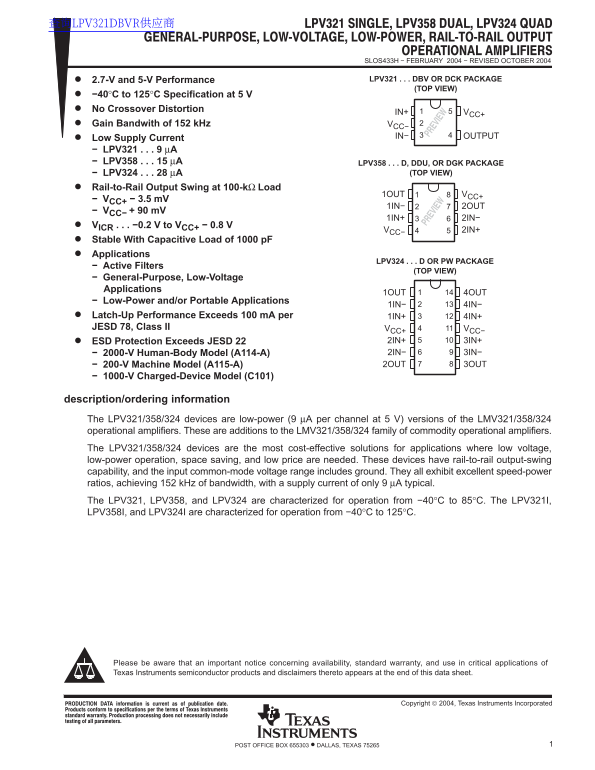

Page 1 Text Content
查询LPV321DBVR供应商
SLOS433H − FEBRUARY 2004 − REVISED OCTOBER 2004
2.7-V and 5-V Performance LPV321 DBV OR DCK PACKAGE
(TOP VIEW)
−40°C to 125°C Specification at 5 V No Crossover Distortion
IN+ VCC+
Gain Bandwith of 152 k Hz VCC−
Low Supply Current IN− OUTPUT
− LPV321 9 µA − LPV358 15 µA LPV358 D, DDU, OR DGK PACKAGE
− LPV324 28 µA (TOP VIEW)
Rail-to-Rail Output Swing at 100-kΩ Load
1OUT VCC+
− VCC+ − 3.5 m V
1IN− 2OUT
− VCC− + 90 m V
1IN+ 2IN−
VICR −0.2 V to VCC+ − 0.8 V
VCC− 2IN+
Stable With Capacitive Load of 1000 p F Applications
LPV324 D OR PW PACKAGE
− Active Filters
(TOP VIEW)
− General-Purpose, Low-Voltage Applications
1OUT 4OUT
− Low-Power and/or Portable Applications
1IN− 4IN−
Latch-Up Performance Exceeds 100 m A per 1IN+ 4IN+ JESD 78, Class II VCC+ VCC−
ESD Protection Exceeds JESD 22 2IN+ 3IN+ − 2000-V Human-Body Model (A114-A) 2IN− 3IN− − 200-V Machine Model (A115-A) 2OUT 3OUT
− 1000-V Charged-Device Model (C101)
description/ordering information The LPV321/358/324 devices are low-power (9 µA per channel at 5 V) versions of the LMV321/358/324 operational amplifiers. These are additions to the LMV321/358/324 family of commodity operational amplifiers. The LPV321/358/324 devices are the most cost-effective solutions for applications where low voltage, low-power operation, space saving, and low price are needed. These devices have rail-to-rail output-swing capability, and the input common-mode voltage range includes ground. They all exhibit excellent speed-power ratios, achieving 152 k Hz of bandwidth, with a supply current of only 9 µA typical. The LPV321, LPV358, and LPV324 are characterized for operation from −40°C to 85°C. The LPV321I, LPV358I, and LPV324I are characterized for operation from −40°C to 125°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
!"#$ % &'!!( $ #% )'*+ &#$ ,#$(- Copyright 2004, Texas Instruments Incorporated
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LPV321 Single LPV358 Dual LPV324 Quad Data Sheet
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 17 |
| File Size | 422.40 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical supply current for these low-power operational amplifiers?
The supply current is only 9 µA typical (for LPV321). Other models have currents of 15 µA or 28 µA.
Are there versions available for extended temperature ranges?
Yes, the 'I' suffix devices (e.g., LPV358ID) are characterized for operation from -40°C to 125°C.
Does this amplifier support input common-mode voltage including ground?
Yes, they have rail-to-rail output swing capability, and the input common-mode voltage range includes ground.
What is the guaranteed bandwidth feature?
They achieve a bandwidth of 152 kHz, demonstrating excellent speed-power ratios.
