Texas Instruments SN74CBT3244C Data Sheet

Summary

This technical guide describes the SN74CBT3244C, a high-speed, TTL-compatible FET bus switch designed for reliable signal interconnection in both digital and analog systems. Key features include bidirectional data flow capability, active undershoot protection up to −2V, low ON-state resistance, and support for diverse signaling levels (0–5V). The manual details its operation as either two 4-bit or one 8-bit switch, making it ideal for designers needing robust bus isolation, partial power-down functionality, and minimal signal distortion in interfaces like USB and memory.

📄 Preview PAGE OF 17

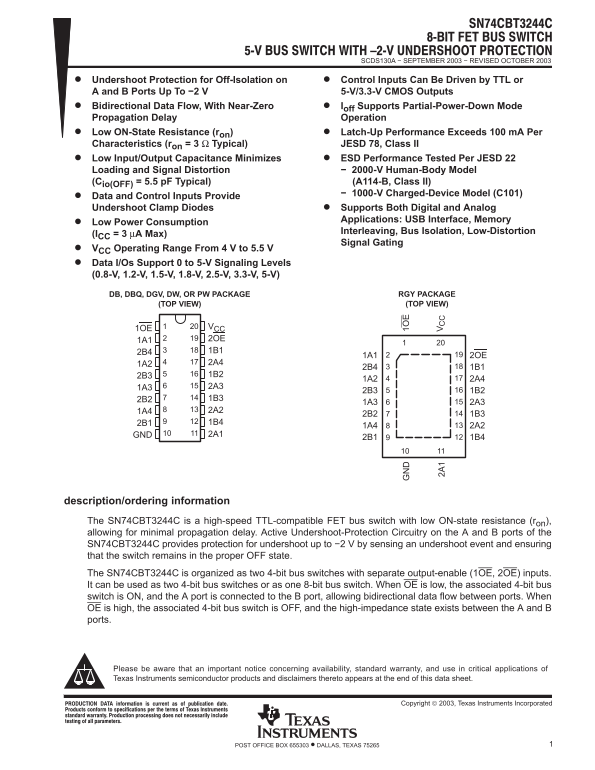

Page 1 Text Content

SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003

Undershoot Protection for Off-Isolation on Control Inputs Can Be Driven by TTL or A and B Ports Up To −2 V 5-V/3.3-V CMOS Outputs Bidirectional Data Flow, With Near-Zero Ioff Supports Partial-Power-Down Mode Propagation Delay Operation Low ON-State Resistance (ron) Latch-Up Performance Exceeds 100 m A Per Characteristics (ron = 3 Ω Typical) JESD 78, Class II Low Input/Output Capacitance Minimizes ESD Performance Tested Per JESD 22 Loading and Signal Distortion − 2000-V Human-Body Model (Cio(OFF) = 5.5 p F Typical) (A114-B, Class II)

− 1000-V Charged-Device Model (C101)

Data and Control Inputs Provide Undershoot Clamp Diodes Supports Both Digital and Analog

Applications: USB Interface, Memory

Low Power Consumption

Interleaving, Bus Isolation, Low-Distortion

(ICC = 3 µA Max)

Signal Gating

VCC Operating Range From 4 V to 5.5 V Data I/Os Support 0 to 5-V Signaling Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)

DB, DBQ, DGV, DW, OR PW PACKAGE RGY PACKAGE (TOP VIEW) (TOP VIEW)

1OE VCC 1A1 2OE 2B4 1B1

1A1 2OE

GND 2A1

description/ordering information The SN74CBT3244C is a high-speed TTL-compatible FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT3244C provides protection for undershoot up to −2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state. The SN74CBT3244C is organized as two 4-bit bus switches with separate output-enable (1OE, 2OE) inputs. It can be used as two 4-bit bus switches or as one 8-bit bus switch. When OE is low, the associated 4-bit bus switch is ON, and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the associated 4-bit bus switch is OFF, and the high-impedance state exists between the A and B ports.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

!" # $%&" !#  '%()$!" *!"&+ Copyright  2003, Texas Instruments Incorporated

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments SN74CBT3244C Data Sheet

Page 1 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 Undershoot Protection for Off-Isolation on Control Inputs Can Be Driven by TTL or A and B Ports Up To −2 V 5-V/3.3-V CMOS Outputs Bidirectional Data Fl...
Page 2 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 description/ordering information (continued) This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures th...
Page 3 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 logic diagram (positive logic) 1A1 SW 1B1 1A4 SW 1B4 2A1 SW 2B1 2A4 SW 2B4 simplified schematic, each FET switch (SW) Undershoot Protection Circuit EN ...
Page 4 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC −0.5 V to 7 V. . . . . . . . . ....
Page 5 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP† MAX UNIT V...
Page 6 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 undershoot characteristics (see Figures 1 and 2) PARAMETER TEST CONDITIONS MIN TYP† MAX UNIT VOUTU VCC = 5.5 V, Switch OFF, VIN = VCC or GND VOH−0.3 Al...
Page 7 SCDS130A − SEPTEMBER 2003 − REVISED OCTOBER 2003 PARAMETER MEASUREMENT INFORMATION Input Generator VG1 50 Ω TEST CIRCUIT Input Generator S1 VI VO RL Open GND VG2 50 Ω CL RL (see Note A) TEST VCC RLS1 ...
Page 8 PACKAGE OPTION ADDENDUM www.ti.com 5-Sep-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty SN74CBT3244CDBQR ACTIV...
Page 9 PACKAGE OPTION ADDENDUM www.ti.com 5-Sep-2005 accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps...
Page 10 MECHANICAL DATA MPDS006C – FEBRUARY 1996 – REVISED AUGUST 2000 DGV (R-PDSO-G**) PLASTIC SMALL-OUTLINE 24 PINS SHOWN 0,16 NOM Gage Plane Seating Plane 1,20 MAX 0,08 PINS ** DIM A MAX 3,70 5,10 5,103,70...
Page 14 MECHANICAL DATA MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001 DB (R-PDSO-G**) PLASTIC SMALL-OUTLINE 28 PINS SHOWN Gage Plane Seating Plane 2,00 MAX 0,05 MIN 0,10 PINS ** DIM A MAX 6,506,50 7,50 8,50...
Page 15 MECHANICAL DATA MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999 PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE 14 PINS SHOWN 0,15 NOM Gage Plane Seating Plane 1,20 MAX 0,10 PINS ** DIM A MAX 3,10 5,10 ...
Page 16 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...
Page 17 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...

Manual Details

Brand Texas Instruments
Pages 17
File Size 413.66 KB
Published May 29, 2026
77 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What voltage range does this device operate within?

The operating supply voltage (V) range is from 4 V to 5.5 V CC.

How do I ensure the device enters a high-impedance state when powered down?

To maintain a high-impedance state, OE should be tied to V through a pullup resistor.

Does it include protection against voltage undershoot?

Yes, active Undershoot-Protection Circuitry provides protection for undershoots up to -2 V on the A and B ports.

What is the power consumption during normal operation?

The average current draw (I) is very low, supporting a maximum of 3 µA.
