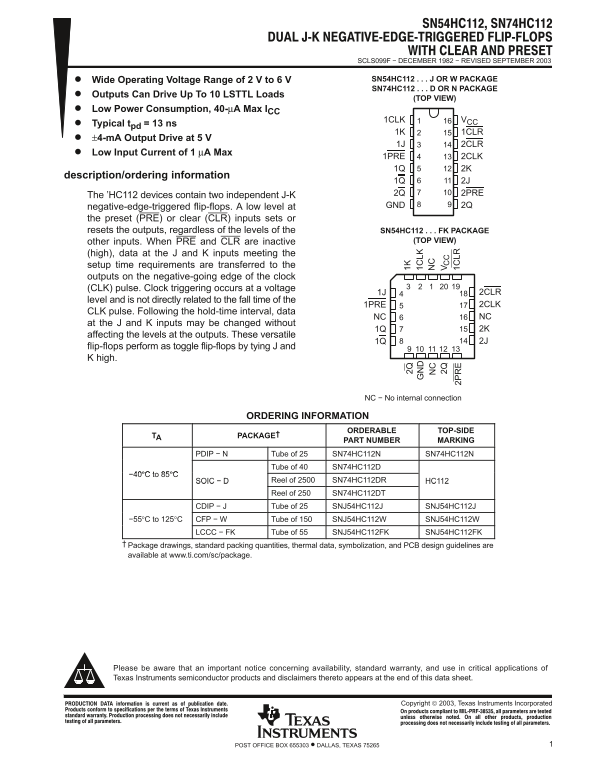

Texas Instruments SN74HC112 Data Sheet
Summary
The SN74HC112 is a versatile integrated circuit featuring two independent J-K flip-flops, ideal for robust digital logic and timing applications. This manual provides comprehensive documentation covering the device's architecture, including negative-edge clock triggering mechanisms and preset/clear functionality. Engineers can find detailed electrical specifications (voltage ranges, current draw), critical timing parameters ($\text{t}_{\text{pd}}$, $\text{t}_{\text{h}}$), operational guidelines, and full ordering information for various package types to implement reliable digital control systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 16 |
| File Size | 619.14 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do PRE or CLR inputs affect the outputs?
A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of other input levels.
What is the maximum continuous output current allowed?
The continuous output current (IO CC) rating is ±25 mA.
How do I configure this device to act as a toggle flip-flop?
You can make it function as a toggle flip-flop by tying both the J and K inputs high.
What is the total storage temperature range for this chip?
The storage temperature range (T stg) is from -65°C to 150°C.
