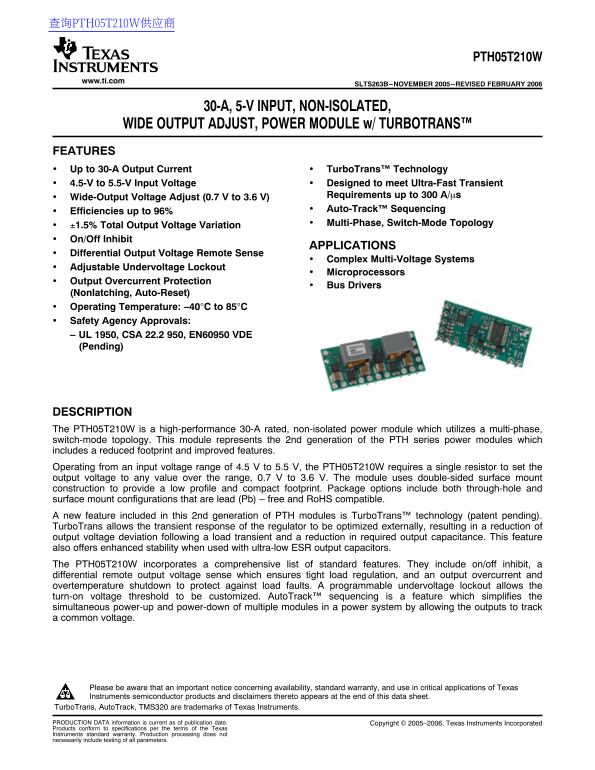

Texas Instruments PTH05T210W Data Sheet
Summary
The PTH05T210W is a high-performance, 30A non-isolated power module designed for complex electronic systems demanding superior transient response and regulation. Featuring advanced technologies like TurboTrans™ and AutoTrack™, it provides stable voltage output across a wide range (0.7 V to 3.6 V). This manual serves as the comprehensive technical guide for electrical engineers, detailing its full specifications, operational parameters, safety features, and optimized application methods when powering microprocessors or managing multi-voltage bus systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 28 |
| File Size | 773.98 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the specified operating temperature range for this module?
The device's operating temperature range is –40°C to 85°C.
How can I set the required output voltage?
You need a single resistor connected between pins SET and GND to set the required output voltage within the 0.7 V to 3.6 V range.
What protection features are included on the PTH05T210W?
It includes overcurrent, overtemperature shutdown, differential remote sense, and programmable undervoltage lockout.
Which industry certifications does this power module comply with?
Safety Agency Approvals include UL 1950, CSA 22.2 950, and EN60950.
