The uA747 series is a versatile dual general-purpose operational amplifier designed for reliable signal amplification in diverse circuitry. Featuring low power consumption, inbuilt offset null capability, and short-circuit protection, it maintains stability without external frequency compensation components. This manual provides comprehensive technical specifications, electrical characteristics, and absolute maximum ratings for both C (0°C to 70°C) and military grade M (-55°C to 125°C) variants. Ideal for engineers developing stable voltage-follower applications requiring high performance across a wide temperature range.
Page 1 Text Content

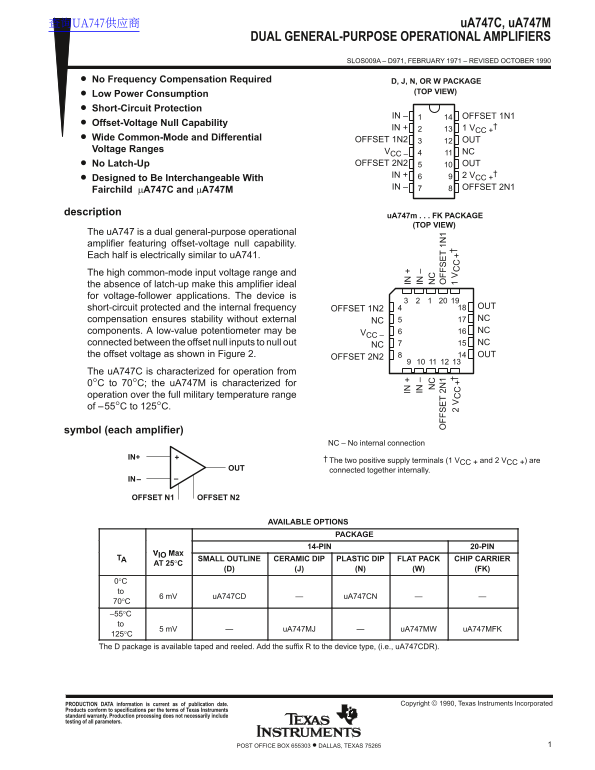

查询UA747供应商 u A747C, u A747M
DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIERS
SLOS009A – D971, FEBRUARY 1971 – REVISED OCTOBER 1990
No Frequency Compensation Required D, J, N, OR W PACKAGE
(TOP VIEW)
Low Power Consumption Short-Circuit Protection
IN OFFSET 1N1
Offset-Voltage Null Capability
IN 1 VCC
Wide Common-Mode and Differential OFFSET 1N2 OUT Voltage Ranges VCC
No Latch-Up OFFSET 2N2 OUT
IN 2 VCC +
Designed to Be Interchangeable With
IN OFFSET 2N1
Fairchild µA747C and µA747M
description
u A747m FK PACKAGE (TOP VIEW)
The u A747 is a dual general-purpose operational amplifier featuring offset-voltage null capability. Each half is electrically similar to u A741. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is
short-circuit protected and the internal frequency OUT
OFFSET 1N2
compensation ensures stability without external NC
components. A low-value potentiometer may be NC
connected between the offset null inputs to null out NC
the offset voltage as shown in Figure 2. OUT
OFFSET 2N2
The u A747C is characterized for operation from 0°C to 70°C; the u A747M is characterized for operation over the full military temperature range of –55°C to 125°C. IN IN
IN IN
symbol (each amplifier)
NC – No internal connection
ÏÏÏ The two positive supply terminals (1 VCC
+ and 2 VCC +) are
OUT connected together internally.
OFFSET N1 OFFSET N2
AVAILABLE OPTIONS
PACKAGE 14-PIN 20-PIN
VIO Max
TA SMALL OUTLINE CERAMIC DIP PLASTIC DIP FLAT PACK CHIP CARRIER
AT 25°C
(D) (J) (N) (W) (FK)
0°C to
6 m V u A747CD u A747CN
70°C –55°C to
5 m V u A747MJ u A747MW u A747MFK
125°C The D package is available taped and reeled. Add the suffix R to the device type, (i.e., u A747CDR).
PRODUCTION DATA information is current as of publication date. Copyright 1990, Texas Instruments Incorporated
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
