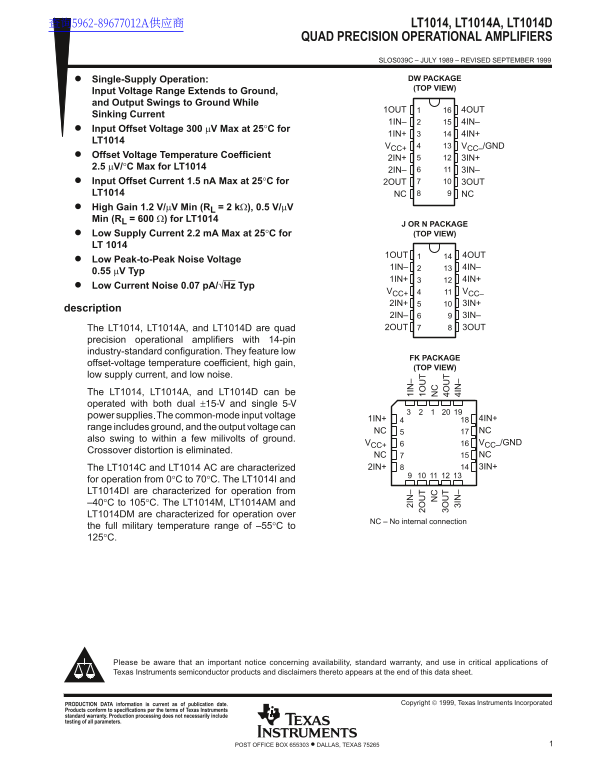

Texas Instruments LT1014, LT1014A, LT1014D Quad Precision Operational Amplifiers Data Manual

查询5962-89677012A供应商 LT1014, LT1014A, LT1014D

QUAD PRECISION OPERATIONAL AMPLIFIERS

SLOS039C – JULY 1989 – REVISED SEPTEMBER 1999

Single-Supply Operation: DW PACKAGE (TOP VIEW)

Input Voltage Range Extends to Ground, and Output Swings to Ground While

1OUT 4OUT

Sinking Current

1IN– 4IN–

Input Offset Voltage 300 µV Max at 25°C for

1IN+ 4IN+

LT1014

VCC+ VCC–/GND

Offset Voltage Temperature Coefficient

2IN+ 3IN+

2.5 µV/°C Max for LT1014

2IN– 3IN–

Input Offset Current 1.5 n A Max at 25°C for 2OUT 3OUT LT1014 NC NC High Gain 1.2 V/µV Min (RL = 2 kΩ), 0.5 V/µV Min (RL = 600 Ω) for LT1014

J OR N PACKAGE Low Supply Current 2.2 m A Max at 25°C for (TOP VIEW)

LT 1014

1OUT 4OUT

Low Peak-to-Peak Noise Voltage

1IN– 4IN–

0.55 µV Typ

1IN+ 4IN+

Low Current Noise 0.07 p A/√Hz Typ

VCC+ VCC–

2IN+ 3IN+

description

2IN– 3IN– The LT1014, LT1014A, and LT1014D are quad 2OUT 3OUT

precision operational amplifiers with 14-pin industry-standard configuration. They feature low

FK PACKAGE

offset-voltage temperature coefficient, high gain,

(TOP VIEW)

low supply current, and low noise. The LT1014, LT1014A, and LT1014D can be operated with both dual ±

The common-mode input voltage

1IN+ 4IN+

range includes ground, and the output voltage can

NC NC

also swing to within a few milivolts of ground.

VCC+ VCC–/GND

Crossover distortion is eliminated.

NC NC

The LT1014C and LT1014 AC are characterized 2IN+ 3IN+

for operation from 0°C to 70°C. The LT1014I and LT1014DI are characterized for operation from –40°C to 105°C. The LT1014M, LT1014AM and LT1014DM are characterized for operation over

NC – No internal connection

the full military temperature range of –55°C to 125°C.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  1999, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
