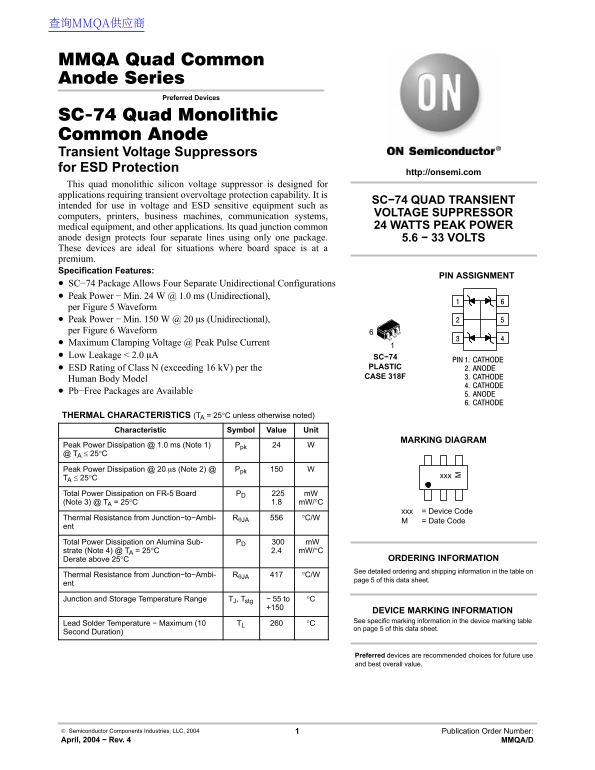

MMQA Quad Common Anode Series
Preferred Devices
SC−74 Quad Monolithic Common Anode Transient Voltage Suppressors for ESD Protection
http://onsemi.com
This quad monolithic silicon voltage suppressor is designed for applications requiring transient overvoltage protection capability. It is
SC−74 QUAD TRANSIENT
intended for use in voltage and ESD sensitive equipment such as
VOLTAGE SUPPRESSOR
computers, printers, business machines, communication systems,
medical equipment, and other applications. Its quad junction common 24 WATTS PEAK POWER
anode design protects four separate lines using only one package. 5.6 − 33 VOLTS These devices are ideal for situations where board space is at a premium. Specification Features:
PIN ASSIGNMENT
SC−74 Package Allows Four Separate Unidirectional Configurations Peak Power − Min. 24 W @ 1.0 ms (Unidirectional), per Figure 5 Waveform Peak Power − Min. 150 W @ 20 s (Unidirectional), per Figure 6 Waveform Maximum Clamping Voltage @ Peak Pulse Current Low Leakage < 2.0 A SC−74
PIN 1. CATHODE
ESD Rating of Class N (exceeding 16 k V) per the PLASTIC 2. ANODE CASE 318F 3. CATHODE
Human Body Model
4. CATHODE
Pb−Free Packages are Available
5. ANODE 6. CATHODE
THERMAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Characteristic Symbol Value Unit
MARKING DIAGRAM
Peak Power Dissipation @ 1.0 ms (Note 1) Ppk @ TA ≤ 25°C
Peak Power Dissipation @ 20 s (Note 2) @ Ppk
TA ≤ 25°C
Total Power Dissipation on FR-5 Board °PD° °225 °m W° (Note 3) @ TA = 25°C 1.8 m W/°C
xxx = Device Code
Thermal Resistance from Junction−to−Ambi- RJA °C/W
= Date Code
Total Power Dissipation on Alumina Sub- °PD° °300 °m W strate (Note 4) @ TA = 25°C 2.4 m W/°C
Derate above 25°C ORDERING INFORMATION
See detailed ordering and shipping information in the table on
Thermal Resistance from Junction−to−Ambi- RJA °C/W
page 5 of this data sheet.
Junction and Storage Temperature Range TJ, Tstg °− 55 to °C
DEVICE MARKING INFORMATION See specific marking information in the device marking table
Lead Solder Temperature − Maximum (10 TL °C
on page 5 of this data sheet.
Second Duration)
Preferred devices are recommended choices for future use and best overall value.
Semiconductor Components Industries, LLC, 2004 Publication Order Number: April, 2004 − Rev. 4 MMQA/D
