These quad 2:1 analog multiplexers are designed for efficient signal routing in space-constrained, low-power applications. Operating on a single supply from 1.6V to 4.2V, they feature ultra-low on-resistance and fast switching speeds ideal for battery-powered systems, data acquisition, and audio/video applications. This manual provides comprehensive technical specifications, including electrical characteristics, pin configurations (TSSOP and QFN packages), absolute maximum ratings, and detailed application guidance for engineers designing portable electronics and communications circuits.

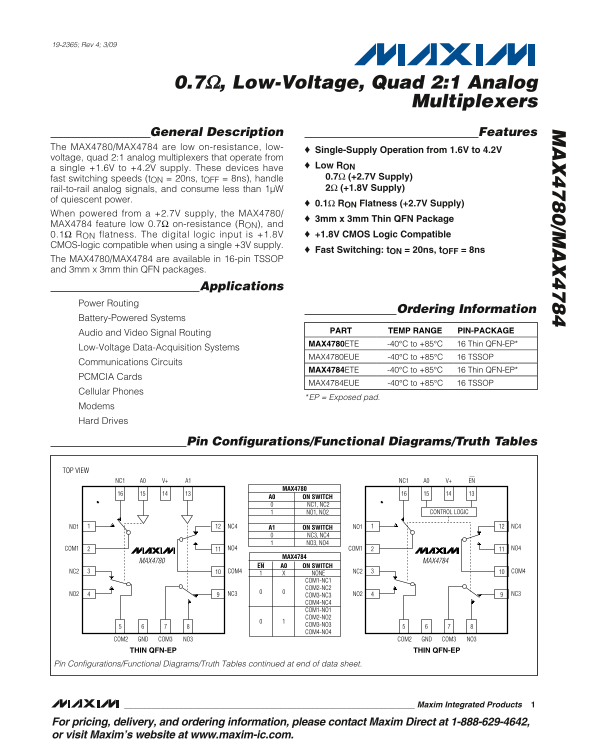

Page 1 Text Content
19-2365; Rev 4; 3/09
0.7Ω, Low-Voltage, Quad 2:1 Analog
Multiplexers
General Description Features
The MAX4780/MAX4784 are low on-resistance, low-
Single-Supply Operation from 1.6V to 4.2V
voltage, quad 2:1 analog multiplexers that operate from
Low RON
a single +1.6V to +4.2V supply. These devices have
fast switching speeds (t ON = 20ns, t OFF = 8ns), handle 0.7Ω (+2.7V Supply) rail-to-rail analog signals, and consume less than 1µW 2Ω (+1.8V Supply)
of quiescent power.
0.1Ω RON Flatness (+2.7V Supply)
When powered from a +2.7V supply, the MAX4780/
3mm x 3mm Thin QFN Package
MAX4784 feature low 0.7Ω on-resistance (RON), and
0.1Ω RON flatness. The digital logic input is +1.8V +1.8V CMOS Logic Compatible
CMOS-logic compatible when using a single +3V supply.
Fast Switching: t ON = 20ns, t OFF = 8ns
The MAX4780/MAX4784 are available in 16-pin TSSOP and 3mm x 3mm thin QFN packages.
Applications
Power Routing
Ordering Information
Battery-Powered Systems
PART TEMP RANGE PIN-PACKAGE
Audio and Video Signal Routing
MAX4780ETE -40°C to +85°C 16 Thin QFN-EP*
Low-Voltage Data-Acquisition Systems
MAX4780EUE -40°C to +85°C 16 TSSOP
Communications Circuits
MAX4784ETE -40°C to +85°C 16 Thin QFN-EP*
PCMCIA Cards
MAX4784EUE -40°C to +85°C 16 TSSOP
Cellular Phones
*EP = Exposed pad.
Modems Hard Drives
Pin Configurations/Functional Diagrams/Truth Tables
TOP VIEW
NC1 A0 V+ A1 NC1 A0 V+ EN
MAX4780 A0 ON SWITCH
NC1, NC2
NO1, NO2 CONTROL LOGIC
NO1 NC4 A1 ON SWITCH NO1 NC4
NC3, NC4 NO3, NO4
COM1 NO4 COM1 NO4
MAX4784
MAX4780 MAX4784
EN A0 ON SWITCH
NC2 COM4 NC2 COM4
NONE COM1-NC1 COM2-NC2
NO2 NC3 COM3-NC3 NO2 NC3
COM4-NC4 COM1-NO1 COM2-NO2 COM3-NO3 COM4-NO4
COM2 NO3COM3GND COM2 NO3COM3GND THIN QFN-EP THIN QFN-EP
Pin Configurations/Functional Diagrams/Truth Tables continued at end of data sheet.
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
Page Summary Contents For MAXIM 0.7V, Low-Voltage, Quad 2:1 Analog Multiplexers MAX4780, MAX4784 Data Handbook / Owner's Manual
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 11 |
| File Size | 159.34 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational voltage range for these multiplexers?
They operate from a single supply of +1.6V to +4.2V.
How low are the on-resistance values (R_ON)?
It has 0.7Ω on-resistance, and when powered by +2.7V, it achieves an ON R flatness of 0.1Ω.
What physical packages are available?
The MAX4780/MAX4784 is available in 16-pin TSSOP and a 3mm x 3mm thin QFN package.
How does the device operate with CMOS logic inputs?
It is CMOS-logic compatible when using a single +3V supply, and requires a digital logic input of +1.8V to +1.8V.
