The MAX17019 is a high-input-voltage quad-output controller designed for advanced power management in embedded and automotive systems. This highly efficient component features up to 38V input and provides four independent, fixed-frequency step-down regulators—including internal 5A, 3A, and 2A outputs—perfect for battery-powered devices. The manual details complex architecture specifics, flexible power sequencing controls, built-in fault protection (like UVLO/OVLO), and critical PCB layout guidelines to ensure reliable system integration.

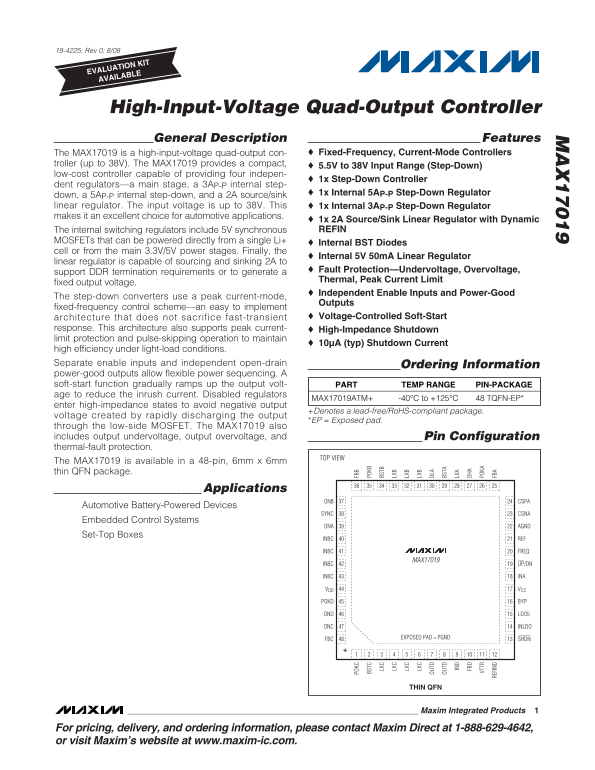

Page 1 Text Content
19-4225; Rev 0; 8/08
EVALUATION KIT AVAILABLE
High-Input-Voltage Quad-Output Controller General Description Features
The MAX17019 is a high-input-voltage quad-output con- Fixed-Frequency, Current-Mode Controllers
troller (up to 38V). The MAX17019 provides a compact,
5.5V to 38V Input Range (Step-Down)
low-cost controller capable of providing four indepen-
1x Step-Down Controller
dent regulators—a main stage, a 3AP-P internal step-
1x Internal 5AP-P Step-Down Regulator
down, a 5AP-P internal step-down, and a 2A source/sink linear regulator. The input voltage is up to 38V. This 1x Internal 3AP-P Step-Down Regulator makes it an excellent choice for automotive applications.
1x 2A Source/Sink Linear Regulator with Dynamic The internal switching regulators include 5V synchronous REFIN
MOSFETs that can be powered directly from a single Li+
Internal BST Diodes
cell or from the main 3.3V/5V power stages. Finally, the
Internal 5V 50m A Linear Regulator
linear regulator is capable of sourcing and sinking 2A to
Fault Protection—Undervoltage, Overvoltage,
support DDR termination requirements or to generate a
Thermal, Peak Current Limit
fixed output voltage.
Independent Enable Inputs and Power-Good
The step-down converters use a peak current-mode,
Outputs
fixed-frequency control scheme—an easy to implement
architecture that does not sacrifice fast-transient Voltage-Controlled Soft-Start
response. This architecture also supports peak current- High-Impedance Shutdown limit protection and pulse-skipping operation to maintain
10µA (typ) Shutdown Current
high efficiency under light-load conditions.
PO KC FB
Separate enable inputs and independent open-drain Ordering Information
BS TC PO KB
power-good outputs allow flexible power sequencing. A
LX BS TB
soft-start function gradually ramps up the output volt- PART TEMP RANGE PIN-PACKAGE
age to reduce the inrush current. Disabled regulators LX LX
MAX17019ATM+ -40°C to +125°C 48 TQFN-EP*
enter high-impedance states to avoid negative output LX LX
+Denotes a lead-free/Ro HS-compliant package.
voltage created by rapidly discharging the output
LX LX *EP = Exposed pad.
through the low-side MOSFET. The MAX17019 also
OU TD DL
includes output undervoltage, output overvoltage, and Pin Configuration
OU TD BS TA
thermal-fault protection.
IN LX TOP VIEW
The MAX17019 is available in a 48-pin, 6mm x 6mm
FB DH
thin QFN package.
VT TR PO KA
Applications
RE FI ND FB
ONB CSPA
Automotive Battery-Powered Devices
SYNC CSNA
Embedded Control Systems
ONA AGND
Set-Top Boxes
INBC REF
INBC FREQ
MAX17019
INBC UP/DN
INBC INA
VDD VCC
POKD BYP
OND LDO5
ONC INLDO
FBC EXPOSED PAD = PGND SHDN
THIN QFN
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
