ST STG3692 Low voltage high bandwidth quad SPDT switch Data Sheet

Summary

The STG3692 is an ultra-low power, high-speed CMOS quad SPDT switch designed for robust signal routing, ideal for portable electronics and USB 2.0 applications. Key features include a wide operating range (1.65 V to 4.3 V), low ON resistance, and comprehensive ESD protection. This technical manual provides detailed engineering specifications covering pin connections, absolute maximum ratings, electrical characteristics, and recommended operating conditions necessary for proper integration into your dynamic switching circuit designs.

📄 Preview 📖 Table of Contents Contents PAGE OF 17

Page 1 Text Content

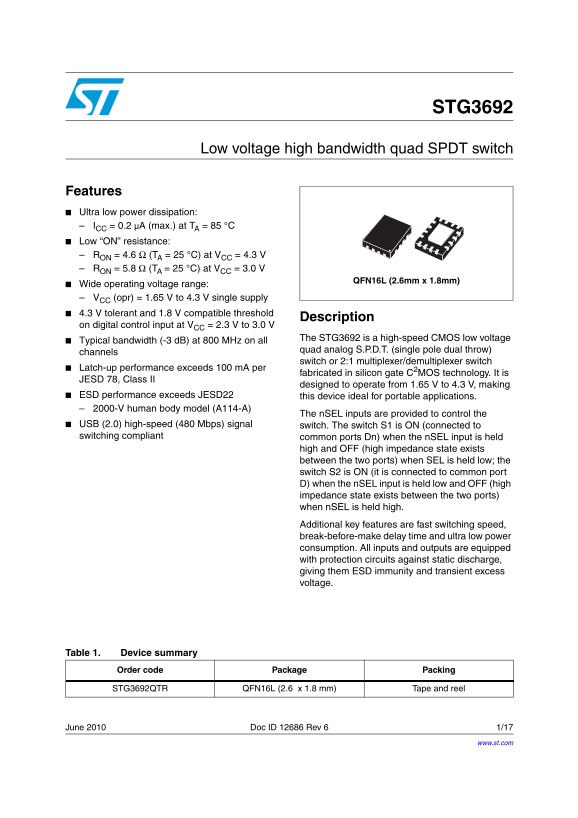

STG3692

Low voltage high bandwidth quad SPDT switch

Features Ultra low power dissipation: ICC = 0.2 µA (max.) at TA = 85 °C Low “ON” resistance: RON = 4.6 Ω (TA = 25 °C) at VCC = 4.3 RON = 5.8 Ω (TA = 25 °C) at VCC = 3.0

QFN16L (2.6mm x 1.8mm)

Wide operating voltage range: VCC (opr) = 1.65 V to 4.3 V single supply 4.3 V tolerant and 1.8 V compatible threshold

Description

on digital control input at VCC = 2.3 V to 3.0

The STG3692 is a high-speed CMOS low voltage

Typical bandwidth (-3 d B) at 800 MHz on all

quad analog S.P.D.T. (single pole dual throw)

channels

switch or 2:1 multiplexer/demultiplexer switch

Latch-up performance exceeds 100 m A per

fabricated in silicon gate C2MOS technology. It is

JESD 78, Class II

designed to operate from 1.65 V to 4.3 V, making

ESD performance exceeds JESD22 this device ideal for portable applications. 2000-V human body model (A114-A)

The n SEL inputs are provided to control the

USB (2.0) high-speed (480 Mbps) signal switch. The switch S1 is ON (connected to switching compliant common ports Dn) when the n SEL input is held

high and OFF (high impedance state exists between the two ports) when SEL is held low; the switch S2 is ON (it is connected to common port D) when the n SEL input is held low and OFF (high impedance state exists between the two ports) when n SEL is held high. Additional key features are fast switching speed, break-before-make delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.

Table 1. Device summary

Order code Package Packing

STG3692QTR QFN16L (2.6 x 1.8 mm) Tape and reel

June 2010 Doc ID 12686 Rev 6 1/17

www.st.com

Page Summary Contents For ST STG3692 Low voltage high bandwidth quad SPDT switch Data Sheet

Page 1 STG3692 Low voltage high bandwidth quad SPDT switch Features Ultra low power dissipation: ICC = 0.2 µA (max.) at TA = 85 °C Low “ON” resistance: RON = 4.6 Ω (TA = 25 °C) at VCC = 4.3 RON = 5.8 Ω (TA =...
Page 2 Contents STG3692 Contents Pin settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin connection . . . . . . . . . . . . . . . . . . . . . . ...
Page 3 STG3692 Pin settings 1 Pin settings 1.1 Pin connection Figure 1. Pin connection (top through view) 1.2 Pin description Table 2. Pin description Pin number Symbol Name and function Independent channels...
Page 4 Device summary STG3692 2 Device summary Figure 2. Input equivalent circuit Table 3. Truth table SEL Switch S1 Switch S2 OFF (1) ON OFF (1) 1. High impedance. 4/17 Doc ID 12686 Rev 6
Page 5 STG3692 Maximum rating 3 Maximum rating Stressing the device above the rating listed in the absolute maximum ratings table may cause permanent damage to the device. These are stress ratings only and o...
Page 6 Electrical characteristics STG3692 4 Electrical characteristics Table 6. DC specifications Value VCC Test conditions Symbol Parameter -40 to 85°C Unit TA = 25°C Min Typ Max Min Max 1.65 – 1.95 0.65VCC...
Page 7 STG3692 Electrical characteristics Table 6. DC specifications (continued) Value VCC Test conditions Symbol Parameter -40 to 85°C Unit TA = 25°C Min Typ Max Min Max Input IIN leakage 0 to 4.3 VSEL = 0 ...
Page 8 Electrical characteristics STG3692 Table 7. AC electrical characteristics (CL = 35 p F, RL = 50 Ω, tr = tf ≤ 5 ns) (continued) Value VCC Test conditions Symbol Parameter -40 to 85°C Unit TA = 25°C Min...
Page 9 STG3692 Electrical characteristics Table 9. USB related AC electrical characteristics Value Symbol Parameter conditions -40 to 85°C Unit TA = 25°C Min Typ Max Min Max t SK(0) Channel-to-channel skew 3...
Page 10 Test circuits STG3692 5 Test circuits Figure 3. ON-resistance Figure 4. Bandwidth Figure 5. OFF leakage Figure 6. Channel to channel crosstalk Figure 7. OFF isolation 10/17 Doc ID 12686 Rev 6
Page 11 STG3692 Test circuits Figure 8. Test circuit Note: CL = 5/35 p F or equivalent: (includes jig capacitance) RL = 50 Ω or equivalent RT = ZOUT of pulse generator (typically 50 Ω) Doc ID 12686 Rev 6 11/1...
Page 12 Test circuits STG3692 Figure 9. Break-before-make time delay Figure 10. Switching time and charge injection (VGEN = 0 V, RGEN = 0 Ω, RL = 1MΩ, CL = 100 p F) Figure 11. Turn ON, turn OFF delay time 12/...
Page 13 STG3692 Package mechanical data 6 Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of env...
Page 14 Package mechanical data STG3692 Table 10. QFN16L (2.6 x 1.8 mm) mechanical data Millimeters Symbol Min Typ Max Note: VFQFPN - Standard for thermally enhanced vey fine pitch quad flat package no leads....
Page 15 STG3692 Package mechanical data Figure 14. QFN16L (2.6 x 1.8 mm) tape & reel Doc ID 12686 Rev 6 15/17
Page 16 Revision history STG3692 7 Revision history Table 11. Document revision history Date Revision Changes 11-Oct-2006 Initial release. 08-Nov-2006 Added feature in cover page. 08-Jan-2007 Mechanical data ...
Page 17 STG3692 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corr...
