MAXIM MAX333A Precision, Quad, SPDT, CMOS Analog Switch Data Sheet/Manual
Summary
Introducing the MAX333A, a high-precision quad single-pole double-throw (SPDT) analog switch. This advanced CMOS device offers highly reliable switching performance with low on resistance, guaranteed matching, and essential break-before-make functionality. The manual provides comprehensive technical details, including electrical characteristics across single and bipolar supply ranges, detailed application notes for test equipment and communications systems, and full pin configurations. Ideal for engineers designing robust embedded or specialized electronic circuits that demand both high signal integrity and extreme ESD protection.

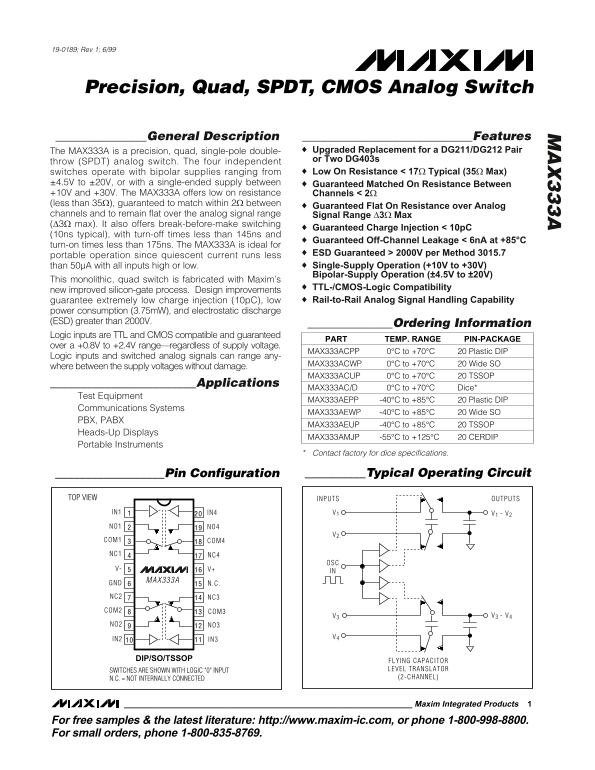

Page 1 Text Content
19-0189; Rev 1; 6/99
Precision, Quad, SPDT, CMOS Analog Switch
_______________General Description ____________________________Features
The MAX333A is a precision, quad, single-pole double- Upgraded Replacement for a DG211/DG212 Pair or Two DG403s
throw (SPDT) analog switch. The four independent
switches operate with bipolar supplies ranging from Low On Resistance < 17Ω Typical (35Ω Max)
±4.5V to ±20V, or with a single-ended supply between Guaranteed Matched On Resistance Between +10V and +30V. The MAX333A offers low on resistance Channels < 2Ω (less than 35Ω), guaranteed to match within 2Ω between
Guaranteed Flat On Resistance over Analog
channels and to remain flat over the analog signal range Signal Range ∆3Ω Max (∆3Ω max). It also offers break-before-make switching
Guaranteed Charge Injection < 10p C
(10ns typical), with turn-off times less than 145ns and
Guaranteed Off-Channel Leakage < 6n A at +85°C
turn-on times less than 175ns. The MAX333A is ideal for
ESD Guaranteed > 2000V per Method 3015.7
portable operation since quiescent current runs less
than 50µA with all inputs high or low. Single-Supply Operation (+10V to +30V) Bipolar-Supply Operation (±4.5V to ±20V)
This monolithic, quad switch is fabricated with Maxim’s
TTL-/CMOS-Logic Compatibility
new improved silicon-gate process. Design improvements
guarantee extremely low charge injection (10p C), low Rail-to-Rail Analog Signal Handling Capability
power consumption (3.75m W), and electrostatic discharge (ESD) greater than 2000V. ______________Ordering Information Logic inputs are TTL and CMOS compatible and guaranteed
PART TEMP. RANGE PIN-PACKAGE
over a +0.8V to +2.4V range—regardless of supply voltage.
MAX333ACPP 0°C to +70°C 20 Plastic DIP
Logic inputs and switched analog signals can range any-
MAX333ACWP 0°C to +70°C 20 Wide SO
where between the supply voltages without damage.
MAX333ACUP 0°C to +70°C 20 TSSOP
________________________Applications
MAX333AC/D 0°C to +70°C Dice*
Test Equipment
MAX333AEPP -40°C to +85°C 20 Plastic DIP
Communications Systems
MAX333AEWP -40°C to +85°C 20 Wide SO
PBX, PABX
MAX333AEUP -40°C to +85°C 20 TSSOP
Heads-Up Displays
MAX333AMJP -55°C to +125°C 20 CERDIP
Portable Instruments
Contact factory for dice specifications.
__________________Pin Configuration __________Typical Operating Circuit
TOP VIEW INPUTS OUTPUTS
IN1 IN4 V1 V1 - V2
NO1 NO4
COM1 COM4
NC4NC1
MAX333A
GND N.C. NC2 NC3
COM3COM2
NO2 NO3
IN3IN2
DIP/SO/TSSOP
FLYING CAPACITOR SWITCHES ARE SHOWN WITH LOGIC "0" INPUT LEVEL TRANSLATOR N.C. = NOT INTERNALLY CONNECTED (2-CHANNEL)
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 1-800-835-8769.
Page Summary Contents For MAXIM MAX333A Precision, Quad, SPDT, CMOS Analog Switch Data Sheet/Manual
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 8 |
| File Size | 109.40 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What electrical supplies can the MAX333A operate with?
It supports both bipolar supplies (±4.5V to ±20V) and single-ended supplies (+10V to +30V).
Does the device support different temperature environments?
Yes, various packages are available for different temp ranges, including commercial (0°C to +70°C), extended (-40°C to +85°C), and military-grade (-55°C to +125°C).
What feature ensures signal handling flexibility?
It offers rail-to-rail analog signal handling capability, and its logic inputs are also TTL/CMOS compatible.
How high is the electrostatic discharge (ESD) protection?
The device provides a guaranteed ESD rating greater than 2000V per Method 3015.7.
