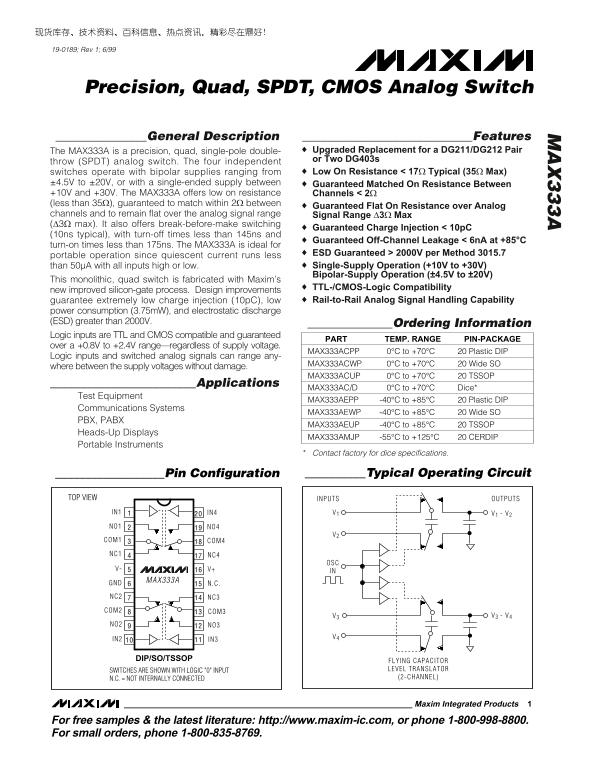

MAXIM MAX333A Precision, Quad, SPDT, CMOS Analog Switch User Guide and Specifications - Page 1

›

Page 1 Text Content

现货库存、技术资料、百科信息、热点资讯，精彩尽在鼎好! 19-0189; Rev 1; 6/99

Precision, Quad, SPDT, CMOS Analog Switch

_______________General Description ____________________________Features

The MAX333A is a precision, quad, single-pole double- Upgraded Replacement for a DG211/DG212 Pair or Two DG403s

throw (SPDT) analog switch. The four independent

switches operate with bipolar supplies ranging from Low On Resistance < 17Ω Typical (35Ω Max)

±4.5V to ±20V, or with a single-ended supply between Guaranteed Matched On Resistance Between +10V and +30V. The MAX333A offers low on resistance Channels < 2Ω (less than 35Ω), guaranteed to match within 2Ω between

Guaranteed Flat On Resistance over Analog

channels and to remain flat over the analog signal range Signal Range ∆3Ω Max (∆3Ω max). It also offers break-before-make switching

Guaranteed Charge Injection < 10p C

(10ns typical), with turn-off times less than 145ns and

Guaranteed Off-Channel Leakage < 6n A at +85°C

turn-on times less than 175ns. The MAX333A is ideal for

ESD Guaranteed > 2000V per Method 3015.7

portable operation since quiescent current runs less

than 50µA with all inputs high or low. Single-Supply Operation (+10V to +30V) Bipolar-Supply Operation (±4.5V to ±20V)

This monolithic, quad switch is fabricated with Maxim’s

TTL-/CMOS-Logic Compatibility

new improved silicon-gate process. Design improvements

guarantee extremely low charge injection (10p C), low Rail-to-Rail Analog Signal Handling Capability

power consumption (3.75m W), and electrostatic discharge (ESD) greater than 2000V. ______________Ordering Information Logic inputs are TTL and CMOS compatible and guaranteed

PART TEMP. RANGE PIN-PACKAGE

over a +0.8V to +2.4V range—regardless of supply voltage.

MAX333ACPP 0°C to +70°C 20 Plastic DIP

Logic inputs and switched analog signals can range any-

MAX333ACWP 0°C to +70°C 20 Wide SO

where between the supply voltages without damage.

MAX333ACUP 0°C to +70°C 20 TSSOP

________________________Applications

MAX333AC/D 0°C to +70°C Dice*

Test Equipment

MAX333AEPP -40°C to +85°C 20 Plastic DIP

Communications Systems

MAX333AEWP -40°C to +85°C 20 Wide SO

PBX, PABX

MAX333AEUP -40°C to +85°C 20 TSSOP

Heads-Up Displays

MAX333AMJP -55°C to +125°C 20 CERDIP

Portable Instruments

Contact factory for dice specifications.

__________________Pin Configuration __________Typical Operating Circuit

TOP VIEW INPUTS OUTPUTS

IN1 IN4 V1 V1 - V2

NO1 NO4

COM1 COM4

NC4NC1

MAX333A

GND N.C. NC2 NC3

COM3COM2

NO2 NO3

IN3IN2

DIP/SO/TSSOP

FLYING CAPACITOR SWITCHES ARE SHOWN WITH LOGIC "0" INPUT LEVEL TRANSLATOR N.C. = NOT INTERNALLY CONNECTED (2-CHANNEL)

Maxim Integrated Products

For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 1-800-835-8769.
