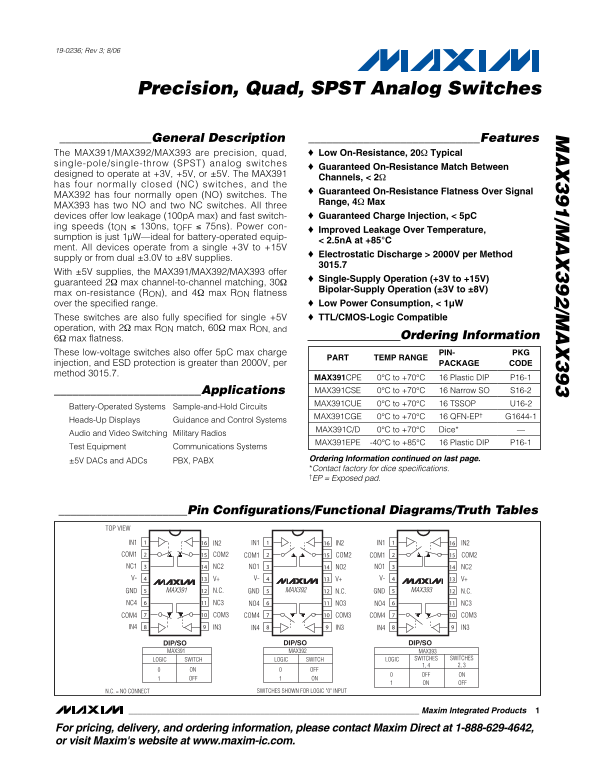

Page 1 Text Content
19-0236; Rev 3; 8/06
Precision, Quad, SPST Analog Switches
_______________General Description ____________________________Features The MAX391/MAX392/MAX393 are precision, quad, Low On-Resistance, 20Ω Typical single-pole/single-throw (SPST) analog switches
Guaranteed On-Resistance Match Between
designed to operate at +3V, +5V, or ±5V. The MAX391
Channels, < 2Ω
has four normally closed (NC) switches, and the
Guaranteed On-Resistance Flatness Over Signal
MAX392 has four normally open (NO) switches. The
Range, 4Ω Max
MAX393 has two NO and two NC switches. All three devices offer low leakage (100p A max) and fast switch- Guaranteed Charge Injection, < 5p C ing speeds (t ON 130ns, t OFF 75ns). Power con-
Improved Leakage Over Temperature,
sumption is just 1µW—ideal for battery-operated equip-
< 2.5n A at +85°C
ment. All devices operate from a single +3V to +15V
Electrostatic Discharge > 2000V per Method
supply or from dual ±3.0V to ±8V supplies.
With ±5V supplies, the MAX391/MAX392/MAX393 offer
Single-Supply Operation (+3V to +15V)
guaranteed 2Ω max channel-to-channel matching, 30Ω
Bipolar-Supply Operation (±3V to ±8V)
max on-resistance (RON), and 4Ω max RON flatness over the specified range. Low Power Consumption, < 1µW These switches are also fully specified for single +5V TTL/CMOS-Logic Compatible operation, with 2Ω max RON match, 60Ω max RON, and
Ordering Information
6Ω max flatness.
These low-voltage switches also offer 5p C max charge PIN- PKG
PART TEMP RANGE
injection, and ESD protection is greater than 2000V, per PACKAGE CODE method 3015.7.
MAX391CPE 0°C to +70°C 16 Plastic DIP P16-1 ________________________Applications MAX391CSE 0°C to +70°C 16 Narrow SO S16-2 MAX391CUE 0°C to +70°C 16 TSSOP U16-2
Battery-Operated Systems Sample-and-Hold Circuits
MAX391CGE 0°C to +70°C 16 QFN-EP† G1644-1
Heads-Up Displays Guidance and Control Systems
MAX391C/D 0°C to +70°C Dice*
Audio and Video Switching Military Radios
MAX391EPE -40°C to +85°C 16 Plastic DIP P16-1
Test Equipment Communications Systems
Ordering Information continued on last page.
±5V DACs and ADCs PBX, PABX
*Contact factory for dice specifications. †EP = Exposed pad.
_____________________Pin Configurations/Functional Diagrams/Truth Tables TOP VIEW
IN1 IN2 IN1 IN2 IN1 IN2 COM1 COM2 COM1 COM2 COM1 COM2 NC1 NC2 NO1 NO2 NO1 NC2
GND MAX391 N.C. GND MAX392 N.C. GND MAX393 N.C.
NC4 NC3 NO4 NO3 NO4 NC3 COM4 COM3 COM4 COM3 COM4 COM3 IN3IN4 IN3IN4 IN3IN4
DIP/SO DIP/SO DIP/SO MAX391 MAX392 MAX393
LOGIC SWITCH LOGIC SWITCH LOGIC SWITCHES SWITCHES 1, 4 2, 3
ON OFF
OFF ON
OFF ON
ON OFF
N.C. = NO CONNECT SWITCHES SHOWN FOR LOGIC "0" INPUT
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim's website at www.maxim-ic.com.
Page Summary Contents For MAXIM MAX391 MAX392 MAX393 Precision, Quad, SPST Analog Switches Product Data Sheet Manual User Guide
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 13 |
| File Size | 381.56 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum ESD protection rating for these switches?
All devices offer ESD protection greater than 2000V per Method 3015.7.
Can I operate the MAX39x series with both single and dual power supplies?
Yes, they support Single-Supply Operation (+3V to +15V) or Bipolar-Supply Operation (±3V to ±8V).
What is the leakage current performance of these switches?
All devices offer very low leakage current, rated at 100pA max.
Are the components suitable for varied temperature environments?
The MAX391EPE model supports a wide operational temperature range from -40°C to +85°C.
