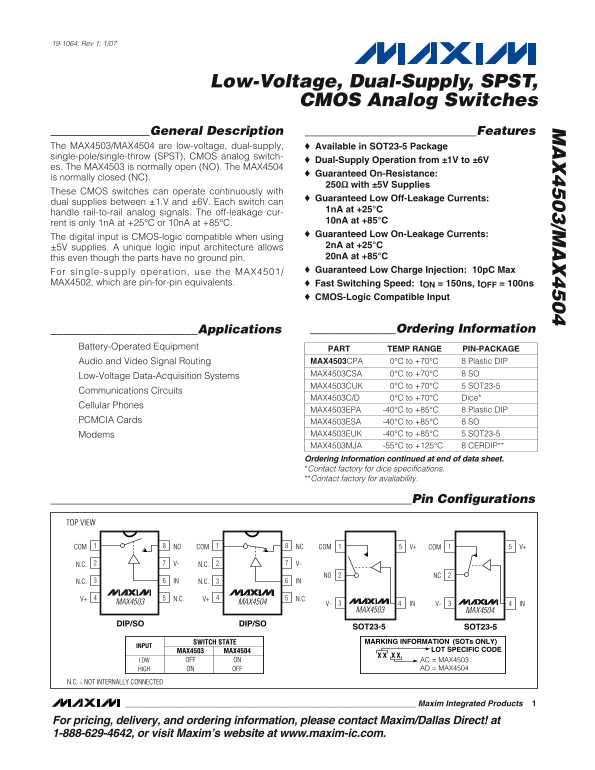

Page 1 Text Content
19-1064; Rev 1; 1/07
Low-Voltage, Dual-Supply, SPST,
CMOS Analog Switches
General Description ____________________________Features
The MAX4503/MAX4504 are low-voltage, dual-supply, Available in SOT23-5 Package single-pole/single-throw (SPST), CMOS analog switch-
Dual-Supply Operation from ±1V to ±6V
es. The MAX4503 is normally open (NO). The MAX4504
Guaranteed On-Resistance:
is normally closed (NC).
250Ω with ±5V Supplies
These CMOS switches can operate continuously with
Guaranteed Low Off-Leakage Currents:
dual supplies between ±1.V and ±6V. Each switch can
1n A at +25°C
handle rail-to-rail analog signals. The off-leakage cur-
10n A at +85°C
rent is only 1n A at +25°C or 10n A at +85°C.
Guaranteed Low On-Leakage Currents:
The digital input is CMOS-logic compatible when using
±5V supplies. A unique logic input architecture allows 2n A at +25°C this even though the parts have no ground pin. 20n A at +85°C For single-supply operation, use the MAX4501/ Guaranteed Low Charge Injection: 10p C Max
MAX4502, which are pin-for-pin equivalents. Fast Switching Speed: t ON = 150ns, t OFF = 100ns
CMOS-Logic Compatible Input
________________________Applications ______________Ordering Information
Battery-Operated Equipment
PART TEMP RANGE PIN-PACKAGE Audio and Video Signal Routing MAX4503CPA 0°C to +70°C 8 Plastic DIP MAX4503CSA 0°C to +70°C 8 SO
Low-Voltage Data-Acquisition Systems
MAX4503CUK 0°C to +70°C 5 SOT23-5
Communications Circuits
MAX4503C/D 0°C to +70°C Dice*
Cellular Phones
MAX4503EPA -40°C to +85°C 8 Plastic DIP
PCMCIA Cards MAX4503ESA -40°C to +85°C 8 SO
Modems MAX4503EUK -40°C to +85°C 5 SOT23-5 MAX4503MJA -55°C to +125°C 8 CERDIP** Ordering Information continued at end of data sheet. *Contact factory for dice specifications. **Contact factory for availability.
___________________________________________________________Pin Configurations TOP VIEW
COM NO COM NC V+COM V+COM
NO NC
INN.C. INN.C.
MAX4503 MAX4504 INV- INV-
MAX4503 MAX4504
DIP/SO DIP/SO
SOT23-5 SOT23-5 SWITCH STATE MARKING INFORMATION (SOTs ONLY)
INPUT
MAX4503 MAX4504 LOT SPECIFIC CODE
LOW OFF ON AC = MAX4503
HIGH ON OFF AD = MAX4504
N.C. = NOT INTERNALLY CONNECTED
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
Page Summary Contents For MAXIM MAX4503 MAX4504 Low- Voltage, Dual-Supply, SPST, CMOS Analog Switches Data Sheet User Manual
Manual Details
| Brand | Dual |
|---|---|
| Pages | 13 |
| File Size | 388.54 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational difference between MAX4503 and MAX4504?
The MAX4503 is normally open (NO), while the MAX4504 is normally closed (NC).
What supply voltage range do these CMOS switches require?
They are designed for dual-supply operation between ±1V and ±6V.
If I only have a single power rail, what switches should I use instead?
For single-supply operation, you must use the pin-for-pin equivalent MAX4501 or MAX4502.
What is the guaranteed maximum on-resistance?
The parts guarantee an On-Resistance of 250 Ω with ±5V supplies.
