Need reliable signal switching components? These professional MAX461x series are low-voltage, high-speed quad CMOS analog switches designed for complex signaling paths in data acquisition and communication systems. Featuring fast switching times (10-12ns), guaranteed on-resistance matching across channels, and compatibility with standard logic levels (+2V to +5.5V). The accompanying manual provides comprehensive technical specifications, electrical characteristics, pin configurations, and detailed application guidelines necessary for engineers designing robust audio/video routing circuits.

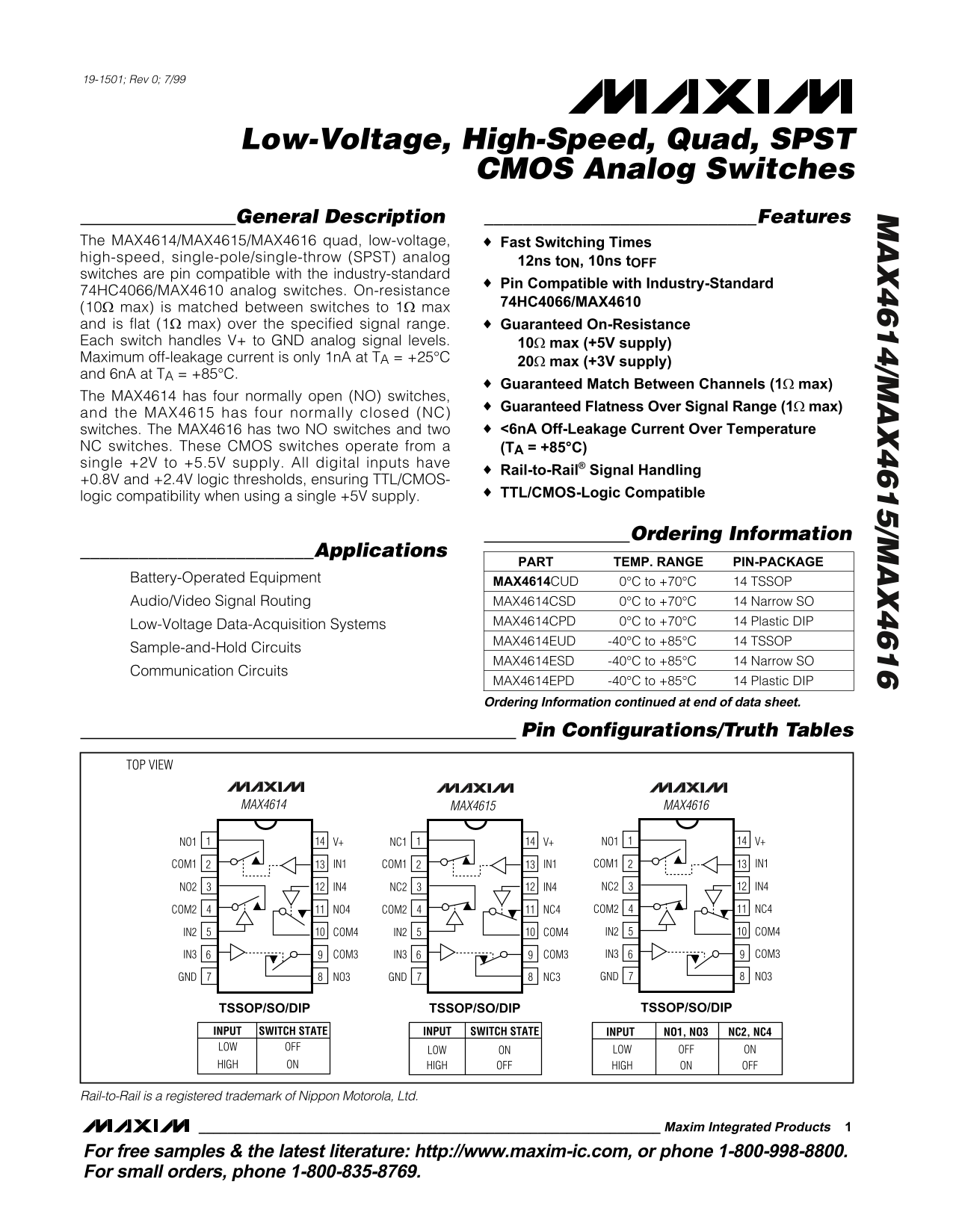

Page 1 Text Content
19-1501; Rev 0; 7/99
Low-Voltage, High-Speed, Quad, SPST
CMOS Analog Switches
General Description ____________________________Features
The MAX4614/MAX4615/MAX4616 quad, low-voltage, Fast Switching Times high-speed, single-pole/single-throw (SPST) analog
12ns t ON, 10ns t OFF
switches are pin compatible with the industry-standard
Pin Compatible with Industry-Standard
74HC4066/MAX4610 analog switches. On-resistance
74HC4066/MAX4610
(10Ω max) is matched between switches to 1Ω max and is flat (1Ω max) over the specified signal range. Guaranteed On-Resistance Each switch handles V+ to GND analog signal levels. 10Ω max (+5V supply)
Maximum off-leakage current is only 1n A at TA = +25°C
20Ω max (+3V supply)
and 6n A at TA = +85°C.
Guaranteed Match Between Channels (1Ω max)
The MAX4614 has four normally open (NO) switches,
Guaranteed Flatness Over Signal Range (1Ω max)
and the MAX4615 has four normally closed (NC)
switches. The MAX4616 has two NO switches and two <6n A Off-Leakage Current Over Temperature
NC switches. These CMOS switches operate from a (TA = +85°C) single +2V to +5.5V supply. All digital inputs have
Rail-to-Rail® Signal Handling
+0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-
logic compatibility when using a single +5V supply. TTL/CMOS-Logic Compatible
Ordering Information
________________________Applications
PART TEMP. RANGE PIN-PACKAGE
Battery-Operated Equipment
MAX4614CUD 0°C to +70°C 14 TSSOP Audio/Video Signal Routing MAX4614CSD 0°C to +70°C 14 Narrow SO MAX4614CPD 0°C to +70°C 14 Plastic DIP
Low-Voltage Data-Acquisition Systems
MAX4614EUD -40°C to +85°C 14 TSSOP
Sample-and-Hold Circuits
MAX4614ESD -40°C to +85°C 14 Narrow SO
Communication Circuits
MAX4614EPD -40°C to +85°C 14 Plastic DIP Ordering Information continued at end of data sheet.
Pin Configurations/Truth Tables
TOP VIEW
MAX4614 MAX4615 MAX4616
NO1 V+ NC1 V+ NO1 V+
COM1 IN1 COM1 IN1 COM1 IN1
NO2 IN4 NC2 IN4 NC2 IN4
COM2 NO4 COM2 NC4 COM2 NC4
IN2 COM4 IN2 COM4 IN2 COM4
IN3 COM3 IN3 COM3 IN3 COM3
GND NO3 GND NC3 GND NO3
TSSOP/SO/DIP TSSOP/SO/DIP TSSOP/SO/DIP
INPUT SWITCH STATE INPUT SWITCH STATE INPUT NO1, NO3 NC2, NC4 LOW OFF LOW OFF ON
LOW ON
HIGH ON HIGH OFF HIGH ON OFF
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800. For small orders, phone 1-800-835-8769.
Page Summary Contents For Dell MAXIM MAX4614 MAX4615 MAX4616 Low- Voltage, High-Speed, Quad, SPST CMOS Analog Switches Data Manual User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 12 |
| File Size | 273.27 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the switching resistance compatibility with standard components?
The on-resistance is guaranteed flat at a maximum of 1Ω, and it is pin compatible with 74HC4066/MAX4610 switches.
Are these analog switches compatible with TTL or CMOS logic levels?
Yes, they feature rail-to-rail signal handling and are compatible using a single +5V supply.
Which model includes both normally open and normally closed switching channels?
The MAX4616 package features two normally open (NO) switches and two normally closed (NC) switches.
