MAXIM MAX4516 MAX4517 Dual-Supply, Low-On-Resistance, SPST, CMOS Analog Switches Data Sheet
Summary
These specialized CMOS analog switches are designed for low-voltage, dual-supply signal routing in precision electronics. Ideal for battery-powered equipment, they feature extremely low on-resistance and leakage currents while supporting rail-to-rail signaling across $\pm 1\text{V}$ to $\pm 6\text{V}$. The accompanying manual provides comprehensive technical details, covering absolute maximum ratings, high-speed performance metrics, and suitability for complex applications such as audio/video signal routing, communications circuits, and data acquisition systems.

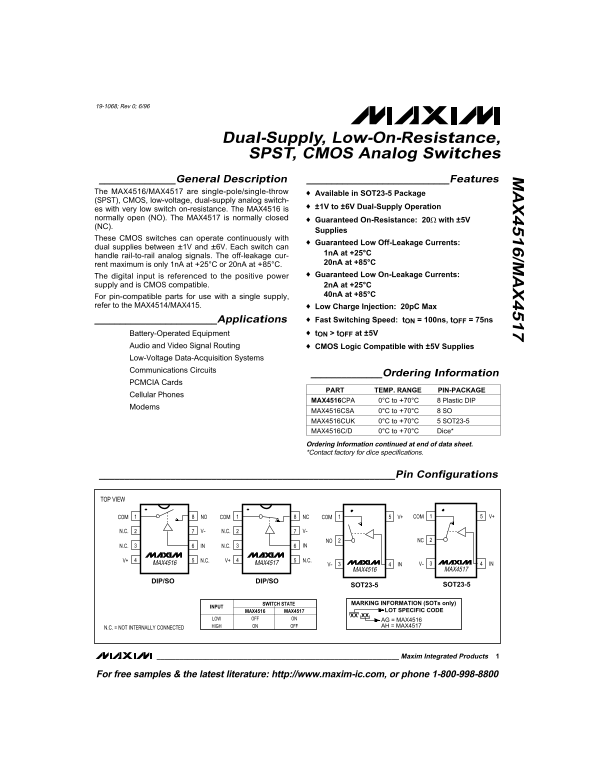

Page 1 Text Content
19-1068; Rev 0; 6/96
Dual-Supply, Low-On-Resistance, SPST, CMOS Analog Switches
_______________General Description ____________________________Features The MAX4516/MAX4517 are single-pole/single-throw Available in SOT23-5 Package (SPST), CMOS, low-voltage, dual-supply analog switch-
±1V to ±6V Dual-Supply Operation
es with very low switch on-resistance. The MAX4516 is normally open (NO). The MAX4517 is normally closed
Guaranteed On-Resistance: 20Ω with ±5V
(NC).
Supplies
These CMOS switches can operate continuously with
Guaranteed Low Off-Leakage Currents:
dual supplies between ±1V and ±6V. Each switch can
1n A at +25°C
handle rail-to-rail analog signals. The off-leakage cur-
20n A at +85°C
rent maximum is only 1n A at +25°C or 20n A at +85°C.
The digital input is referenced to the positive power Guaranteed Low On-Leakage Currents:
supply and is CMOS compatible. 2n A at +25°C
40n A at +85°C
For pin-compatible parts for use with a single supply, refer to the MAX4514/MAX415. Low Charge Injection: 20p C Max
________________________Applications Fast Switching Speed: t ON = 100ns, t OFF = 75ns Battery-Operated Equipment t ON > t OFF at ±5V
Audio and Video Signal Routing CMOS Logic Compatible with ±5V Supplies Low-Voltage Data-Acquisition Systems Communications Circuits
______________Ordering Information
PCMCIA Cards
PART TEMP. RANGE PIN-PACKAGE
Cellular Phones
MAX4516CPA 0°C to +70°C 8 Plastic DIP
Modems
MAX4516CSA 0°C to +70°C 8 SO MAX4516CUK 0°C to +70°C 5 SOT23-5 MAX4516C/D 0°C to +70°C Dice* Ordering Information continued at end of data sheet. *Contact factory for dice specifications.
__________________________________________________________Pin Configurations
TOP VIEW
COM NO COM NC V+COM V+COM
NO NC
INN.C. INN.C.
MAX4516 MAX4517 INV- INV-
MAX4516 MAX4517
DIP/SO DIP/SO
SOT23-5 SOT23-5
SWITCH STATE MARKING INFORMATION (SOTs only)
INPUT
MAX4516 MAX4517 LOT SPECIFIC CODE
XX XX
LOW OFF ON AG = MAX4516
HIGH ON OFF AH = MAX4517
N.C. = NOT INTERNALLY CONNECTED
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
Page Summary Contents For MAXIM MAX4516 MAX4517 Dual-Supply, Low-On-Resistance, SPST, CMOS Analog Switches Data Sheet
Manual Details
| Brand | Dual |
|---|---|
| Pages | 8 |
| File Size | 84.01 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How does the MAX4516 differ from the MAX4517?
The MAX4516 is normally open (NO), while the MAX4517 is normally closed (NC).
Can I use these switches with a single power supply?
Yes, for pin-compatible parts requiring a single supply, refer to the MAX4514 or MAX415.
What is the guaranteed on-resistance of the MAX4517 at ±5V?
The guaranteed On-Resistance for the MAX4517 (NC) is 20Ω when supplied with ±5V.
