MAXIM MAX4717 MAX4718 Dual SPDT Analog Switches in UCSP Data Sheet

Summary

These dual SPDT analog switches (MAX4717/MAX4718) are designed for low-voltage signal routing, featuring high bandwidth (>300MHz) and USB 1.1 compliance. Operating from a single +1.8V to +5.5V supply, they provide reliable switching with ultra-low on-resistance and minimal signal distortion. Ideal for professionals developing audio/video switchers, headphone circuits, or low-voltage data systems, this manual provides detailed technical specifications, package options (UCSP, TDFN), and performance data necessary for optimal circuit design.

📄 Preview PAGE OF 16

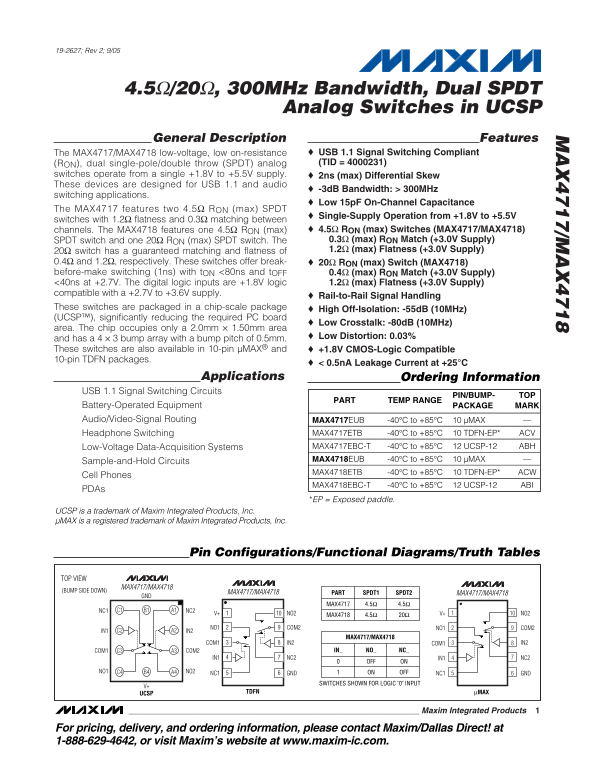

Page 1 Text Content

19-2627; Rev 2; 9/05

4.5Ω/20Ω, 300MHz Bandwidth, Dual SPDT

Analog Switches in UCSP

General Description Features

The MAX4717/MAX4718 low-voltage, low on-resistance USB 1.1 Signal Switching Compliant (RON), dual single-pole/double throw (SPDT) analog (TID = 4000231)

switches operate from a single +1.8V to +5.5V supply. 2ns (max) Differential Skew These devices are designed for USB 1.1 and audio

-3d B Bandwidth: > 300MHz

switching applications.

Low 15p F On-Channel Capacitance

The MAX4717 features two 4.5Ω RON (max) SPDT

Single-Supply Operation from +1.8V to +5.5V

switches with 1.2Ω flatness and 0.3Ω matching between

channels. The MAX4718 features one 4.5Ω RON (max) 4.5Ω RON (max) Switches (MAX4717/MAX4718) SPDT switch and one 20Ω RON (max) SPDT switch. The 0.3Ω (max) RON Match (+3.0V Supply) 20Ω switch has a guaranteed matching and flatness of 1.2Ω (max) Flatness (+3.0V Supply)

0.4Ω and 1.2Ω, respectively. These switches offer break- 20Ω RON (max) Switch (MAX4718) before-make switching (1ns) with t ON <80ns and t OFF 0.4Ω (max) RON Match (+3.0V Supply) <40ns at +2.7V. The digital logic inputs are +1.8V logic 1.2Ω (max) Flatness (+3.0V Supply) compatible with a +2.7V to +3.6V supply.

Rail-to-Rail Signal Handling

These switches are packaged in a chip-scale package

High Off-Isolation: -55d B (10MHz)

(UCSP™), significantly reducing the required PC board

Low Crosstalk: -80d B (10MHz)

area. The chip occupies only a 2.0mm ✕ 1.50mm area

Low Distortion: 0.03%

and has a 4 ✕ 3 bump array with a bump pitch of 0.5mm. These switches are also available in 10-pin µMAX® and +1.8V CMOS-Logic Compatible 10-pin TDFN packages.

< 0.5n A Leakage Current at +25°C

Applications Ordering Information

USB 1.1 Signal Switching Circuits

PIN/BUMP-

PART TEMP RANGE

Battery-Operated Equipment PACKAGE MARK Audio/Video-Signal Routing MAX4717EUB -40°C to +85°C 10 µMAX

Headphone Switching MAX4717ETB -40°C to +85°C 10 TDFN-EP* ACV Low-Voltage Data-Acquisition Systems MAX4717EBC-T -40°C to +85°C 12 UCSP-12 ABH MAX4718EUB -40°C to +85°C 10 µMAX

Sample-and-Hold Circuits

MAX4718ETB -40°C to +85°C 10 TDFN-EP* ACW

Cell Phones

MAX4718EBC-T -40°C to +85°C 12 UCSP-12 ABI

*EP = Exposed paddle.

UCSP is a trademark of Maxim Integrated Products, Inc. µMAX is a registered trademark of Maxim Integrated Products, Inc.

Pin Configurations/Functional Diagrams/Truth Tables

TOP VIEW

MAX4717/MAX4718

(BUMP SIDE DOWN) MAX4717/MAX4718

PART SPDT1 SPDT2 MAX4717/MAX4718

MAX4717 4.5Ω 4.5Ω

NC1 C1 A1B1 NC2

V+ NO21 MAX4718 4.5Ω 20Ω NO2V+

NO1 COM2 NO1 COM2

C2 A2 IN2IN1

MAX4717/MAX4718

COM1 IN2 IN2COM1

C3 A3 COM2COM1 IN_ NO_ NC_

IN1 NC2 NC2IN1

OFF ON

C4 B4 A4 NO2NO1 ON OFF

NC1 GND GNDNC1

SWITCHES SHOWN FOR LOGIC "0" INPUT

UCSP TDFN µMAX

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
