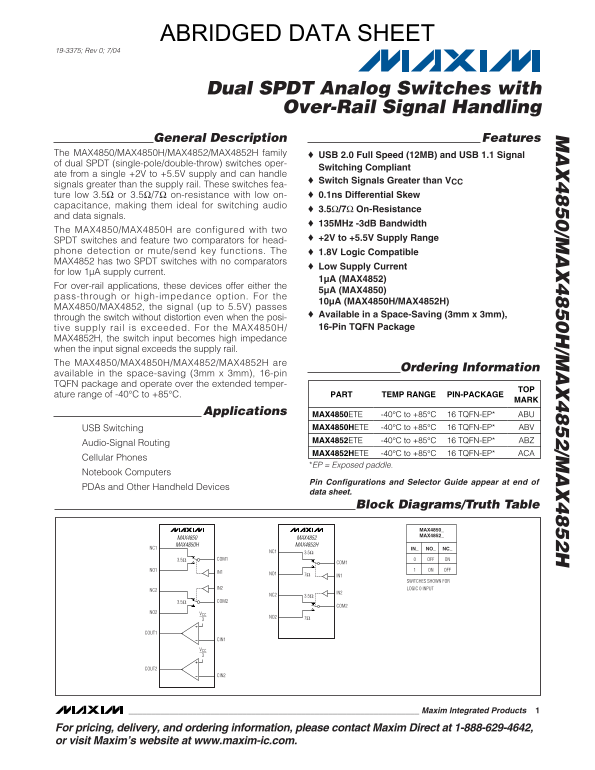

ABRIDGED DATA SHEET /M /M /M
19-3375; Rev 0; 7/04
Dual SPDT Analog Switches with
Over-Rail Signal Handling
General Description Features
The MAX4850/MAX4850H/MAX4852/MAX4852H family USB 2.0 Full Speed (12MB) and USB 1.1 Signal of dual SPDT (single-pole/double-throw) switches oper-
Switching Compliant
ate from a single +2V to +5.5V supply and can handle
Switch Signals Greater than VCC
signals greater than the supply rail. These switches fea- ture low 3.5Ω or 3.5Ω/7Ω on-resistance with low on- 0.1ns Differential Skew capacitance, making them ideal for switching audio
3.5Ω/7Ω On-Resistance
and data signals.
135MHz -3d B Bandwidth
The MAX4850/MAX4850H are configured with two
+2V to +5.5V Supply Range
SPDT switches and feature two comparators for head- phone detection or mute/send key functions. The 1.8V Logic Compatible MAX4852 has two SPDT switches with no comparators
Low Supply Current
for low 1µA supply current.
1µA (MAX4852)
For over-rail applications, these devices offer either the
5µA (MAX4850)
pass-through or high-impedance option. For the
10µA (MAX4850H/MAX4852H)
MAX4850/MAX4852, the signal (up to 5.5V) passes
Available in a Space-Saving (3mm x 3mm),
through the switch without distortion even when the posi-
tive supply rail is exceeded. For the MAX4850H/ 16-Pin TQFN Package
MAX4852H, the switch input becomes high impedance when the input signal exceeds the supply rail. The MAX4850/MAX4850H/MAX4852/MAX4852H are
Ordering Information
available in the space-saving (3mm x 3mm), 16-pin TQFN package and operate over the extended temper-
ature range of -40°C to +85°C. PART TEMP RANGE PIN-PACKAGE
Applications
MAX4850ETE -40°C to +85°C 16 TQFN-EP* ABU USB Switching MAX4850HETE -40°C to +85°C 16 TQFN-EP* ABV MAX4852ETE -40°C to +85°C 16 TQFN-EP* ABZ
Audio-Signal Routing
MAX4852HETE -40°C to +85°C 16 TQFN-EP* ACA
Cellular Phones
*EP = Exposed paddle.
Notebook Computers
Pin Configurations and Selector Guide appear at end of
PDAs and Other Handheld Devices
data sheet.
Block Diagrams/Truth Table
MAX4850_ MAX4852_
MAX4850 MAX4852 MAX4850HNC1 MAX4852H
IN_ NO_ NC_
NC1 3.5Ω
3.5Ω COM1 OFF ON
NO1 ON OFF
IN1 NO1
7Ω IN1
SWITCHES SHOWN FOR
IN2 LOGIC 0 INPUT
NC2 3.5Ω
3.5Ω COM2
NO2 VCC
NO2 7Ω
COUT1
COUT2
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
