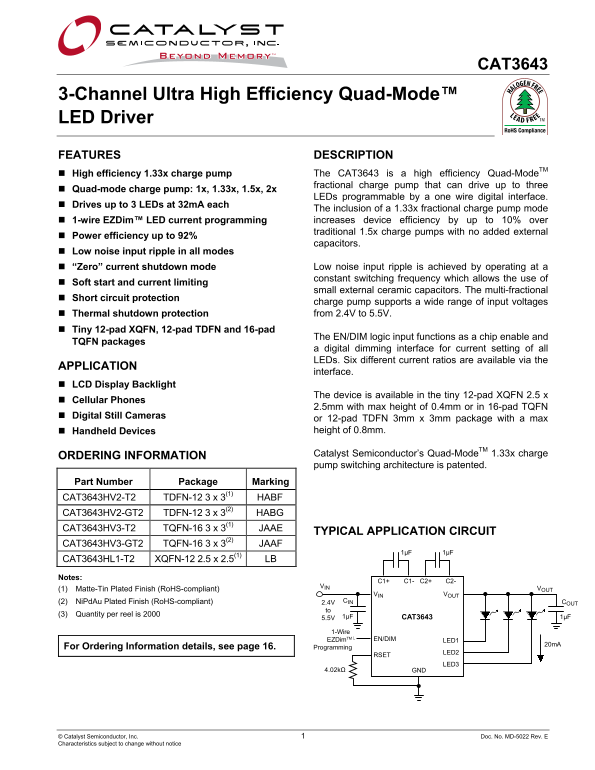

CAT3643
3-Channel Ultra High Efficiency Quad-Mode™ LED Driver
FEATURES DESCRIPTION High efficiency 1.33x charge pump The CAT3643 is a high efficiency Quad-Mode TM fractional charge pump that can drive up to three
Quad-mode charge pump: 1x, 1.33x, 1.5x, 2x
LEDs programmable by a one wire digital interface.
Drives up to 3 LEDs at 32m A each
The inclusion of a 1.33x fractional charge pump mode 1-wire EZDim™ LED current programming increases device efficiency by up to 10% over traditional 1.5x charge pumps with no added external
Power efficiency up to 92%
capacitors.
Low noise input ripple in all modes
“Zero” current shutdown mode Low noise input ripple is achieved by operating at a constant switching frequency which allows the use of
Soft start and current limiting
small external ceramic capacitors. The multi-fractional
Short circuit protection
charge pump supports a wide range of input voltages Thermal shutdown protection from 2.4V to 5.5V.
Tiny 12-pad XQFN, 12-pad TDFN and 16-pad
The EN/DIM logic input functions as a chip enable and
TQFN packages
a digital dimming interface for current setting of all LEDs. Six different current ratios are available via the
APPLICATION
interface.
LCD Display Backlight
The device is available in the tiny 12-pad XQFN 2.5 x
Cellular Phones
2.5mm with max height of 0.4mm or in 16-pad TQFN
Digital Still Cameras
or 12-pad TDFN 3mm x 3mm package with a max Handheld Devices height of 0.8mm.
ORDERING INFORMATION Catalyst Semiconductor’s Quad-Mode TM 1.33x charge pump switching architecture is patented.
Part Number Package Marking CAT3643HV2-T2 TDFN-12 3 x 3(1) HABF CAT3643HV2-GT2 TDFN-12 3 x 3(2) HABG CAT3643HV3-T2 TQFN-16 3 x 3(1) JAAE
TYPICAL APPLICATION CIRCUIT
CAT3643HV3-GT2 TQFN-16 3 x 3(2) JAAF
CAT3643HL1-T2 XQFN-12 2.5 x 2.5(1) LB Notes:
(1) Matte-Tin Plated Finish (Ro HS-compliant) VOUT
VIN VOUT
(2) Ni Pd Au Plated Finish (Ro HS-compliant) 2.4V CIN COUT to
(3) Quantity per reel is 2000 1µF
5.5V CAT3643 1µF
1-Wire
EZDim TM EN/DIM LED1
For Ordering Information details, see page 16. Programming
4.02kΩ GND
© Catalyst Semiconductor, Inc. 1 Doc. No. MD-5022 Rev. E Characteristics subject to change without notice
