ABB Channel, Riveted Quad Strut Datasheet
Summary
The Superstrut Quad Strut Channel is a robust structural component, made from hot rolled low carbon steel with GoldGalv® finish, designed to provide four flexible mounting slots for high-density cable environments. This manual serves as an essential technical data sheet, providing professionals with comprehensive product specifications, precise dimensional attributes, and detailed load rating tables. It includes critical information on spanning and column loads versus deflection, allowing electrical engineers and installers to ensure safe and compliant structural support for demanding cabling systems.
Page 1 Text Content

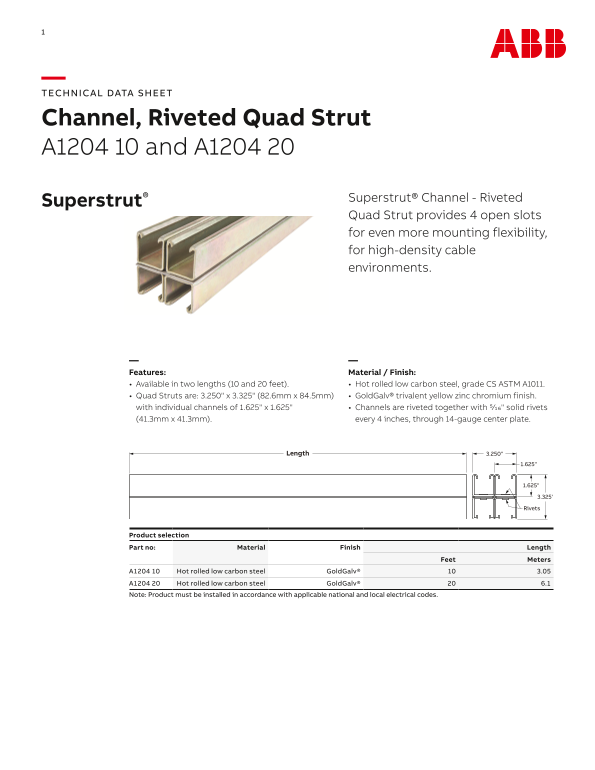

TECHNICAL DATA SHEET
Channel, Riveted Quad Strut A1204 10 and A1204 20
Superstrut® Channel - Riveted
Superstrut®
Quad Strut provides 4 open slots for even more mounting flexibility, for high-density cable environments.
Features: Material / Finish: • Available in two lengths (10 and 20 feet). • Hot rolled low carbon steel, grade CS ASTM A1011. • Quad Struts are: 3.250" x 3.325" (82.6mm x 84.5mm) • Gold Galv® trivalent yellow zinc chromium finish. with individual channels of 1.625" x 1.625" • Channels are riveted together with 5/16" solid rivets (41.3mm x 41.3mm). every 4 inches, through 14-gauge center plate.
3.250"Length
1.625" 3.325" Rivets
Product selection Part no: Material Finish Length
Feet Meters
A1204 10 Hot rolled low carbon steel Gold Galv® 3.05 A1204 20 Hot rolled low carbon steel Gold Galv® 6.1 Note: Product must be installed in accordance with applicable national and local electrical codes.
